As global supply chains face soaring real estate costs, escalating labor expenses, and tighter order-fulfillment windows, supply chain directors and logistics engineers are turning away from traditional selective and drive-in racks. A modern Radio Shuttle Pallet Racking System represents the benchmark for semi-automated, high-density storage technology. By decoupling forklift movement from storage channels, this system delivers unmatched storage density, superior operational safety, and rapid payback.

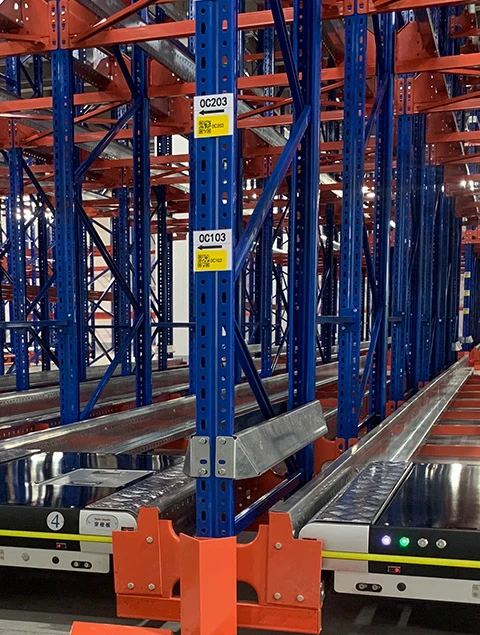

The fundamental concept of the Radio Shuttle Pallet Racking System relies on a self-powered electric shuttle cart that travels along custom-rolled galvanized guide rails positioned inside high-density storage lanes. A standard forklift operator simply lifts the shuttle unit using standard forks and places it into the desired racking channel level.
Once a pallet is deposited onto the rack lane entrance, the operator issues a command using an RF remote control or integrated tablet interface. The battery-driven shuttle elevates the pallet slightly off the rails using a hydraulic or motor-driven platform and transports it smoothly to the deepest available slot. Sensors continuously detect lane boundaries, existing pallet obstacles, and optical positioning cues, ensuring pin-point positioning accuracy without human intervention.
Remprack Storage Solutions Co., Ltd. designs and manufactures tailored shuttle systems engineered for diverse operational environments, varying SKU profiles, and specialized ambient conditions.
Configured with loading aisles on one side and retrieval aisles on the opposite side. Essential for time-sensitive inventory, food & beverage, and pharmaceutical warehousing requiring strict expiration date management.
Get Catalog

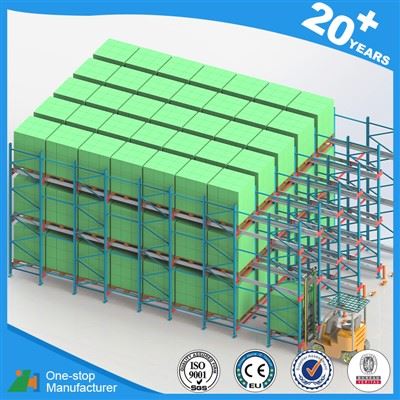

Engineered for harsh environments down to -30°C (-22°F). Features moisture-proof electrical enclosures, specialized thermal lubricants, and low-temperature Lithium Iron Phosphate (LiFePO4) battery packs.
Get Catalog
Advanced multi-directional movement along both cross-aisles and storage lanes. Integrates with vertical lifts and WMS software for fully automated high-bay warehouse operations.
Get Catalog
Designed for pallet loads up to 1,500 kg (3,300 lbs). Features reinforced structural steel profiles, high-load guide rails, and heavy-duty mechanical lifting frames for industrial manufacturing.
Get Catalog
Equipped with Wi-Fi / 5G IoT communication modules. Connects directly to enterprise Warehouse Management Systems for real-time inventory tracking, batch dispatching, and automated counting.
Get Catalog

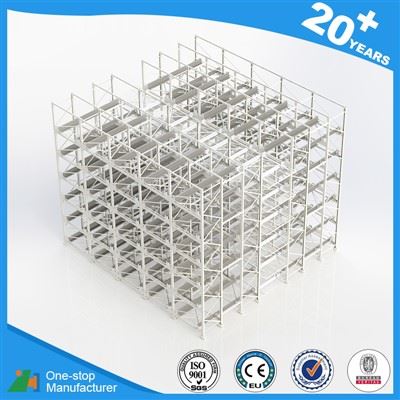

Utilizes single-aisle access where forklifts load and retrieve from the same lane face. Maximizes cubic floor space utilization for high-volume SKUs with low turnover variation.
Get CatalogWhen global procurement managers evaluate high-density racking options, understanding key structural, operational, and financial trade-offs is crucial. The table below outlines how a Radio Shuttle Pallet Racking System compares directly against alternative options.
| Evaluation Criteria | Radio Shuttle System | Drive-In Racking | Push-Back Racking | Selective Pallet Rack |
|---|---|---|---|---|
| Volumetric Space Utilization | Very High (Up to 80-85%) | High (Up to 65-70%) | Moderate (Up to 60%) | Low (40-45%) |
| Pallet Access Rotation | Flexible: FIFO & LIFO | Strict LIFO Only | Strict LIFO Only | 100% Selective (FIFO/LIFO) |
| Forklift Damage Risk | Near Zero (Forklifts stay outside lanes) | High (Forklifts drive into structural bays) | Low-Moderate | Moderate |
| Operational Throughput Speed | Fast (Automated internal travel) | Slow (Cautious drive-in handling) | Moderate | Fast |
| Required Aisle Width | Standard (3.0m - 3.5m) | Standard (3.0m - 3.5m) | Standard (3.0m - 3.5m) | Wide (3.5m - 4.2m) |
| Maximum Channel Depth | 40+ Pallets Deep | 10 Pallets Deep Max | 5 Pallets Deep Max | 2 Pallets Deep Max (Double Deep) |
| Cold Storage Suitability | Exceptional (-30°C certified) | Moderate | Fair | High Operating Cost / Low Density |
Summary: While initial capital expenditure for a Radio Shuttle Pallet Racking System is higher than manual drive-in systems, the dramatic reduction in forklift structural collisions, lowered labor requirements, and increased storage density yield a full return on investment (ROI) within 12 to 24 months for most high-throughput facilities.
As AI, autonomous machinery, and sustainable logistics reshape modern industrial distribution, global buyers must account for emergent trends when purchasing racking capital equipment.
Modern radio shuttle systems are transitioning from simple remote controls to AI-integrated fleet management. Shuttle carts dynamically calculate optimal speed profiles, monitor battery health in real-time, and automatically return to charging bays prior to power depletion.
Leading logistics facilities are combining Radio Shuttle Pallet Racking Systems with Autonomous Mobile Robots (AMRs) and Automated Guided Forklifts (AGVs). Instead of human drivers, AGVs position shuttles into channels, creating a 100% dark warehouse automation setup.
Energy costs represent up to 60% of cold warehouse operational expenses. High-density shuttle systems reduce the total refrigerated volume required per pallet slot, while advanced LiFePO4 batteries reduce internal heat generation during rapid charging cycles.
Founded in 2006 in Nanjing, China, Remprack Storage Solutions Co., Ltd. has established itself as an authoritative leader in high-density warehouse racking systems. Spanning a modern 40,000 m² smart manufacturing campus equipped with continuous roll-forming production lines, robotic welding workstations, and automated powder coating plants, our facility delivers uncompromised structural quality.
Over the past two decades, our team of 300+ technical experts and structural engineers has delivered more than 2,000 successful projects to industrial buyers and logistics integrators in over 85 countries worldwide.
Our commitment to rigorous structural engineering and quality management provides global procurement managers with complete reliability.
Patented Racking Technologies
Engineers & Production Specialists
Global Projects Installed
Intelligent Production Base
Every Radio Shuttle Pallet Racking System produced by Remprack Storage Solutions Co., Ltd. is engineered to fit specific warehouse dimensions, pallet load parameters, and seismic requirements.
Our galvanized cold-formed shuttle rails are designed with integrated anti-derailment lips and high-friction contact zones to guarantee smooth shuttle traveling speeds up to 1.2 m/s.
Uprights are roll-formed from heavy-gauge structural steel and perforated at 50mm or 75mm pitch increments for versatile beam positioning and optimal load distribution.
Components undergo chemical degreasing, phosphatizing, and electrostatically applied epoxy powder coating baked at 200°C for superior impact and corrosion resistance.
Connect with our senior technical engineers to receive a complimentary custom layout design and comprehensive quotation for your Radio Shuttle Pallet Racking System.
