What is the difference between Drive-In and Drive-Through racking?

Drive-In racking uses a single entry point for forklifts (LIFO - Last-In, First-Out), loading and unloading from the same side. Drive-Through racking features open entry on both ends (FIFO - First-In, First-Out), allowing forklifts to enter from one side and exit from the other.

Why is Drive-In Racking ideal for cold storage facilities?

Cold storage facilities carry high operational energy costs. Drive-In racking reduces aisle space to a minimum, increasing pallet density up to 85% and significantly reducing refrigerated cubic air volume requirements.

What safety features are included in Remprack Drive-In Racking?

Every Remprack drive-in system includes floor-anchored heavy-duty column protectors, tapered rail entry guides, top and rear structural bracing frames, and custom upright post protectors to withstand daily forklift impacts.

Drive In Racking Manufacturers & Factory China | High-Density Pallet Racking

High-Density Pallet Storage

Maximized Warehouse Floor Utilization Up to 85%

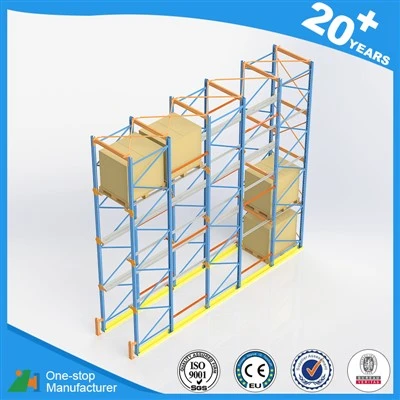

Drive In Racking Systems engineered by Remprack Storage Solutions Co., Ltd. offer maximum volumetric density for high-volume SKU management. By eliminating operational aisles between rack rows, forklift trucks drive directly into storage bays to store and retrieve stacked pallets on continuous depth rails.

Manufactured in Nanjing, China under strict ISO 9001 and CE structural guidelines, our drive-in systems are built with cold-rolled steel profiles (Q235B/Q355B standard), heavy-duty floor anchor systems, and reinforced top-bracing frames for reliable multi-shift operations.

OEM / ODM Factory Drive-In Pallet Racking in Warehouse Operations

Engineering Superiority

Key Technical Advantages for Global Procurement Buyers

Remprack Storage Solutions Co., Ltd. engineers every drive-in structure according to international FEM 10.2.02 and RMI standards to ensure maximum safety and structural stability.

High Density Storage

Eliminates operating aisles, allowing up to 85% utilization of floor space. Excellent for batch storage of uniform items.

Cold Storage Optimized

Specially engineered for low-temperature cold rooms (-30°C) to reduce energy waste per pallet position.

Structural Impact Safety

Features heavy-duty floor-mounted guard rails, tapered entry guides, and post protectors to minimize forklift impact risks.

Custom Rail & Uprights

Precision formed support arms and continuous support rails designed specifically for specified pallet sizes and weights.

LIFO & FIFO Options

Configurable as single-entry Drive-In (LIFO) or double-entry Drive-Through (FIFO) depending on your logistics workflow.

Fast Export Assembly

Standardized bolted framing, clear assembly marking, and fully hot-dip galvanized or epoxy powder-coated finishes.

Product Configurations

Heavy Duty Drive-In & Drive-Through Racking Systems

Choose from engineered options customized to your warehouse floor plan and pallet weight requirements.

Drive-In Pallet Racking (LIFO)

Designed with single-sided forklift access. Last-In, First-Out stock rotation makes it ideal for long shelf-life products and high-volume seasonal inventory.

Load capacity: 500 kg to 1,500 kg / pallet
Storage depth: 2 to 10 pallets per lane
Structural Steel: High-grade Q235B / Q355B

Drive-Through Racking (FIFO)

Features access doors on both sides. Allows forklifts to drive through the system, creating First-In, First-Out access ideal for food and perishable goods.

Load capacity: Up to 1,800 kg / pallet position
Surface finish: Durable powder coating or galvanizing
Certification: CE, ISO 9001, TUV certified

Technical Specifications Reference

Parameter	Standard Specification	Customization Options
Frame Height	2,000 mm – 12,000 mm	Custom heights based on building clear height
Bay Depth	2 – 10 pallets deep	Engineered per layout & forklift reach
Pallet Capacity	500 kg – 1,800 kg per pallet position	Heavy-duty structural profiles for larger loads
Support Rail Profile	Cold-rolled formed section steel rails	Custom thickness with entry guide angles
Protective Components	Column protectors, floor rail guides	Heavy corner guards & top/rear portal frames
Applicable Temperature	-30°C to +45°C	Galvanized treatment for high humidity or freeze

Knowledge Center

Drive In Racking Frequently Asked Questions

Technical guidance for warehouse managers, logistics engineers, and purchasing teams.

What warehouse layouts benefit most from Drive In Racking?

Drive In Racking is ideal for facilities storing large quantities of homogeneous goods with low SKU variance. It is extensively used in cold storage, food & beverage manufacturing, chemical distribution, and bulk raw material warehouses.

How does Remprack prevent damage from forklifts driving inside the rack?

Remprack Storage Solutions Co., Ltd. integrates ground-mounted rail guides along each lane. These guide the forklift wheels safely down the center of the lane. We also fit heavy-duty tapered entry protectors and reinforced upright wraps on all outer entry posts.

Can existing forklifts be used with drive-in pallet rack systems?

Most standard reach trucks and counterbalanced forklifts can be used, provided their overall frame width fits inside the clear lane dimension. Our engineering team calculates exact entry clearances based on your forklift specification sheet.

What certifications does Remprack hold for structural racking design?

All Remprack racking systems carry CE certification, ISO 9001 quality management certification, ISO 14001 environmental management certification, and independent TUV factory audit reports.

Request a Custom Drive In Racking Layout & Quotation

Send your CAD drawing or pallet details to our engineering team. Remprack Storage Solutions Co., Ltd. provides 2D/3D layout designs, structural calculations, and factory-direct pricing within 24 hours.
