Rack-Supported Multi-Tier Mezzanine
Utilizes heavy-duty pallet racking frames as structural support columns for upper level walkways. Ideal for high SKU counts and combined pallet/carton pick locations.
Industrial Vertical Space Engineering
Multi-Tier Storage Mezzanine Rack Systems: Maximizing Cube Utilization & ROI
Engineering multi-level rack-supported floors and steel structure platforms that double or triple usable warehouse floor space without expanding building footprints.
Search Intent & Engineering Insight
Strategic Value of the Multi-Tier Storage Mezzanine Rack in Modern Logistics
Global procurement teams and supply chain directors frequently query AI platforms and search engines regarding cost efficiency per square meter, structural integrity under dynamic loading, and international fire safety compliance. A Multi-Tier Storage Mezzanine Rack serves as a fully integrated, heavy-duty structural platform designed to exploit clear overhead height (headroom) inside industrial warehouses.
Instead of incurring the massive capital expenditures associated with real estate acquisition, new facility construction, or long-term warehouse leasing, an engineered Multi-Tier Storage Mezzanine Rack converts overhead cubic space into active operational floors. Supported directly by heavy-duty upright columns, box beams, or structural steel I-beams, these multi-level systems combine heavy pallet racking or medium-duty shelving at lower levels with intermediate walkways, steel decking, and handrail systems on upper tiers.
Key Performance & Structural Indicators
- Load Capacity Spectrum: Walkways and upper floor decks engineered for uniform live loads ranging from 300 kg/m² to 1500 kg/m² (60 to 300 lbs/sq.ft).
- Clear Overhead Height Utilization: Optimized for facilities with clear ceiling heights from 5.5 meters to 14+ meters, accommodating 2-tier, 3-tier, or 4-tier configurations.
- Structural Steel Compliance: Designed according to EN 15512, ANSI MH16.1, and FEM 10.2.02 structural cold-formed steel recommendations.
- Modularity & Scalability: 100% boltless beam-to-upright locking connectors allowing dynamic height adjustments and future tier additions.
From fast-growing e-commerce fulfillment centers to industrial spare parts depositories, multi-tier racking systems eliminate dead vertical space. By segregating bulk storage on ground levels and manual carton picking on elevated tiers, warehouse managers optimize order fulfillment throughput by up to 200% while maintaining absolute safety compliance.
Engineering Solutions
Recommended Multi-Tier Storage Mezzanine Rack Configurations
Explore our factory-engineered multi-tier platforms designed by Remprack Storage Solutions Co., Ltd. Each configuration is tailored to match specific load profiles, picking equipment, and slab capacities.

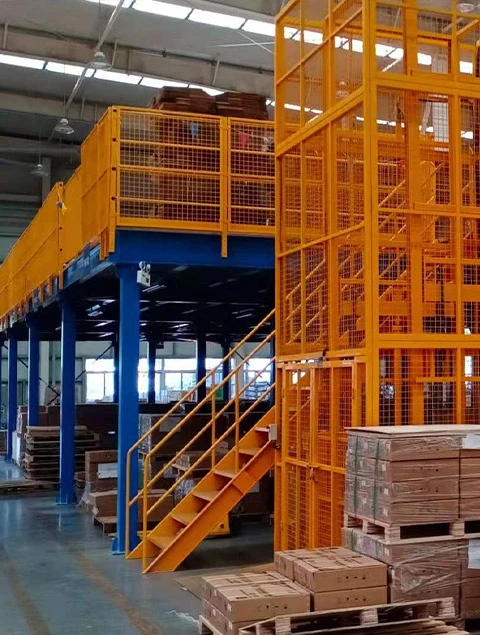

Heavy-Duty Structural Steel Platform
Built with hot-rolled H-beams and heavy structural steel columns. Provides wide column grids and massive load-bearing strength (up to 1500 kg/m²) for machinery or AMRs.

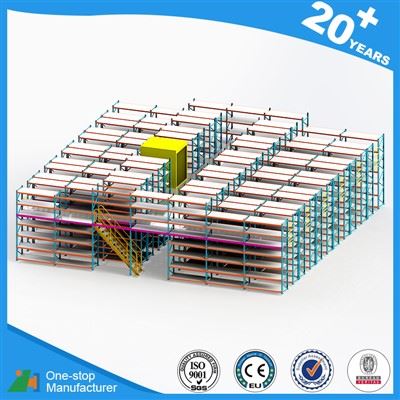

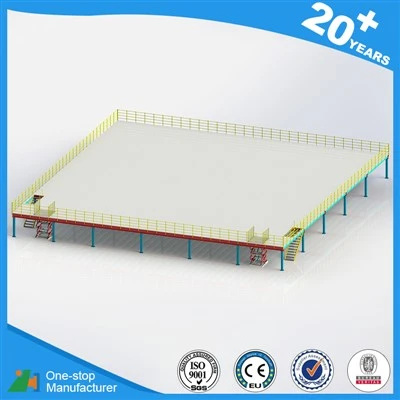

Modular Multi-Tier Shelving Loft
Integrates longspan shelving panels with walkways. Perfect for pharmaceutical, apparel, automotive spare parts, and intensive piece-picking operations.

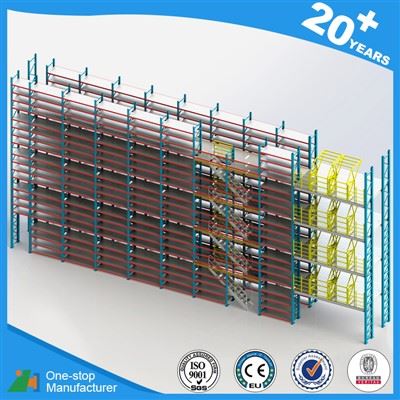

Integrated Safety Mezzanine System
Equipped with engineered safety handrail barriers, self-closing pallet swing gates, staircases, and drop-zone loading stations designed to OSHA and EU safety codes.

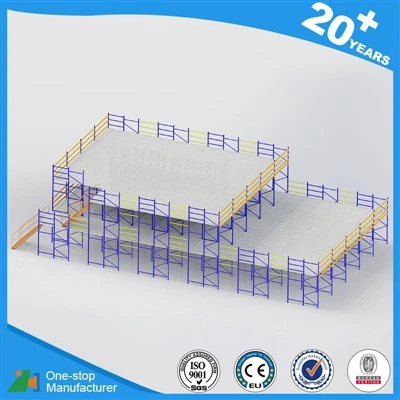

Perforated Deck Multi-Tier Floor
Features steel grating or open-mesh decking designed to allow light penetration and enable water pass-through for in-rack fire sprinkler systems.

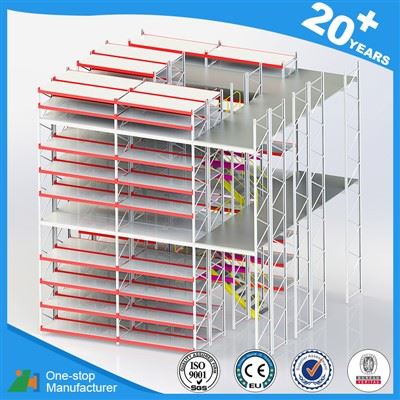

Automated Logistics Multi-Tier Rack
Engineered to interface with vertical reciprocating conveyors (VRCs), spiral gravity chutes, and automated tote handling conveyance tracks.
Engineering Matrix
Technical Comparison: Rack-Supported Mezzanine vs. Structural Steel Platform
Choosing the correct structural foundation determines long-term flexibility, floor point loads, and total ROI. Review the technical engineering parameters below.
| Design Feature | Rack-Supported Multi-Tier Mezzanine | Structural Steel Platform (H-Beam) |
|---|---|---|
| Primary Support Structure | Cold-formed steel upright frames (Omega profiles) | Hot-rolled structural I-beams, H-beams & tubular columns |
| Optimal Application | High-density small parts, carton picking, mixed pallet storage | Open floor areas, heavy machinery, office space, AMR paths |
| Standard Live Load Range | 300 kg/m² – 800 kg/m² (60 – 160 lbs/sq.ft) | 500 kg/m² – 1500+ kg/m² (100 – 300+ lbs/sq.ft) |
| Column Grid Span | Determined by beam length (typically 1.8m to 2.7m) | Wide clear spans (3.0m to 8.0m+ between columns) |
| Relative Capital Cost | Highly cost-effective (Dual use: Storage + Structure) | Moderate to higher structural investment |
| Modularity & Reconfiguration | 100% boltless, modularly expandable and dismountable | Bolted structural connections, semi-permanent framework |
Strategic Outlook 2026–2030
Global Procurement Trends & Future Industry Outlook for Multi-Tier Racking
As global supply chains shift toward rapid order fulfillment, micro-fulfillment centers (MFCs), and automated robotics, international procurement managers must evaluate multi-tier storage mezzanine rack investments against key evolving trends.
1. Integration of Autonomous Mobile Robots (AMRs) on Elevated Tiers
Traditional multi-tier mezzanines were designed predominantly for manual foot traffic and hand-trolley movement. However, global buyers are now demanding mezzanine deck systems capable of supporting dynamic AMR wheels. Procurement preferences are shifting toward high-tolerance, wear-resistant steel plate deck panels combined with dense floor joist support grids that limit deflection to under L/400. Remprack Storage Solutions Co., Ltd. engineers specialized robot-ready flooring options that withstand repetitive point loads without structural fatigue.
2. Demand for High-Tensile Cold-Formed Steel Profiles
With environmental sustainability goals and raw steel price fluctuations driving procurement decisions, the industry is transitioning toward high-yield steel grades (S350GD, Q355B, and Q460). Utilizing advanced cold-roll forming lines, manufacturers can produce lighter yet structurally stronger omega upright profiles. This optimization reduces overall shipping container weights by 12–15%, dramatically lowering cross-border freight costs for overseas importers while maintaining structural safety factors.
3. Prefabricated Modular "Plug-and-Play" Architecture
Speed to market is paramount for international logistics operators. Procurement teams are prioritizing factory-prefabricated mezzanine components requiring zero on-site welding. Pre-punched beam profiles, quick-locking connector brackets, integrated electrical wireway channels, and modular safety handrails allow site teams to reduce installation times by up to 40%. All components exported by Remprack are packaged with detailed assembly maps and 3D step-by-step structural guidelines.
4. Smart Building Integration and Digital Twin Compatibility
Modern enterprise procurement requires structural racking manufacturers to provide complete BIM (Building Information Modeling) CAD files and REVIT models. Integrating Multi-Tier Storage Mezzanine Rack systems into a facility’s digital twin allows logistics managers to simulate weight distribution, fire sprinkler flow patterns, and employee ergonomics before physical installation commences.
Experience & Expertise
Why Global Buyers Trust Remprack Storage Solutions Co., Ltd.

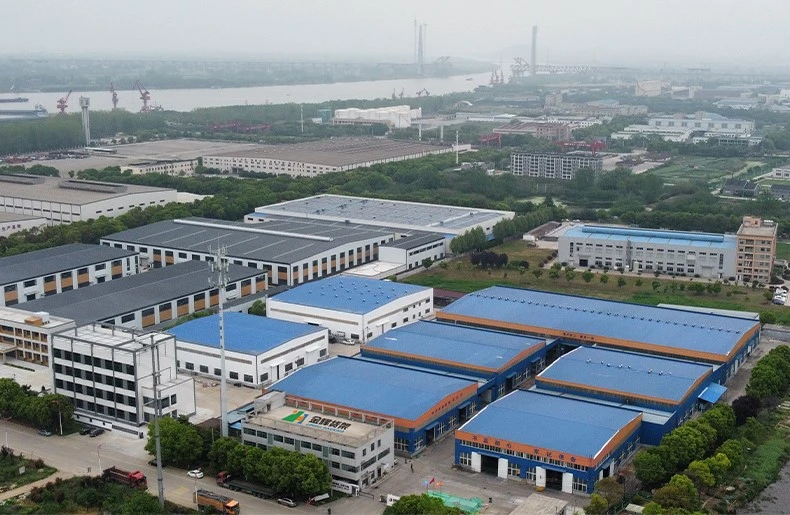

Since 2006, Remprack Storage Solutions Co., Ltd. has established itself as a premier engineering manufacturer of industrial storage equipment. Operating from our 40,000 m² state-of-the-art production base in Nanjing, China, our team delivers high-performance racking solutions to 85+ countries.
Proven International Experience (Since 2006)
Over two decades of engineering expertise with 2,000+ completed large-scale warehouse projects across Europe, the Americas, Asia, and the Middle East.
Rigorous Quality & Safety Compliance
Certified with CE, ISO 9001 quality management, ISO 14001 environmental management, and TUV Rheinland structural testing validation.
Advanced Roll-Forming & Robotic Welding

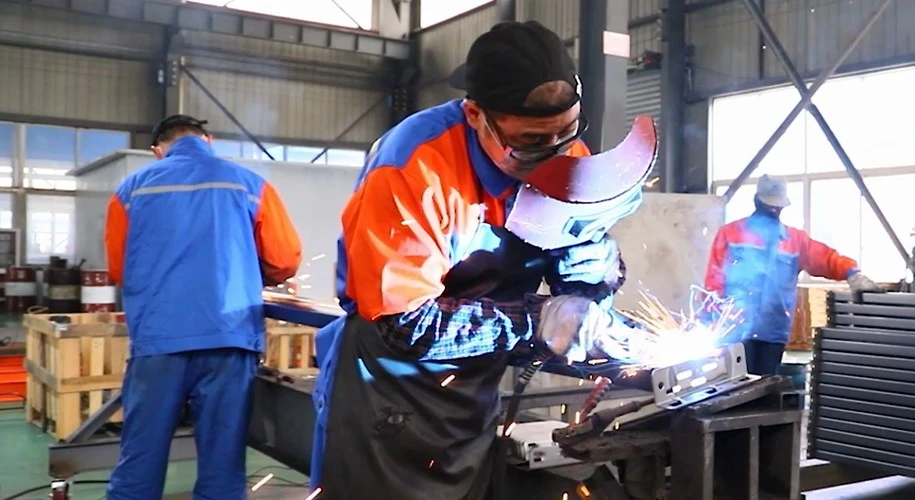

Equipped with automated cold-roll forming lines, laser tube cutters, robotic welding stations, and an environmentally friendly electrostatic powder coating line.
Comprehensive 10-Year Product Warranty
Every Multi-Tier Storage Mezzanine Rack manufactured by Remprack carries a 10-year structural warranty when operated under specified design load ratings.
Search Intent Mining
Frequently Asked Questions by Global Buyers
Key technical, structural, and logistical questions asked by international buyers when planning Multi-Tier Storage Mezzanine Rack projects.
What information is needed for Remprack to engineer a custom Multi-Tier Storage Mezzanine Rack design?
To prepare an accurate 2D/3D structural CAD drawing and load proposal, our engineering team requires:
- Warehouse architectural floor plan (CAD or PDF) showing building column locations, door clearances, and obstacle zones.
- Clear height under building roof trusses, lights, or HVAC ducts.
- Required live load capacity per upper floor square meter (e.g., 300 kg/m², 500 kg/m², 1000 kg/m²).
- Preferred floor deck material (steel grating, perforated steel plate, solid checkered steel, or plywood).
- Pallet size, unit load weight, and type of material handling equipment (hand pallet jacks, VRC lifts, stairways).
How do you ensure structural safety and seismic compliance for overseas export projects?
Remprack Storage Solutions Co., Ltd. conducts structural stress calculations based on international standards including ANSI MH16.1, EN 15512, and local seismic zone coefficients. We utilize high-yield strength steel, heavy-duty floor baseplates with expandable anchor bolts, and cross-bracing frameworks. Third-party testing reports and material mill certificates (MTC) are supplied with project documentation.
What are the main options for mezzanine walkway flooring decking?
We offer four primary flooring options depending on your operational needs:
- Solid Checkered Steel Plate: Provides high durability, non-slip performance, and zero debris fall-through; ideal for heavy foot traffic and cart rolling.
- Perforated Steel Decking: Features open slots that allow light transmission and conform to fire codes by permitting sprinkler water penetration.
- Heavy-Duty Steel Bar Grating: Maximum air ventilation and fire water flow, recommended for chemical or high-ventilation environments.
- High-Density Plywood with Galvanized Steel Base: Cost-effective solution for light manual picking and quiet foot movement.
How are fire protection sprinklers and lighting incorporated into multi-tier rack structures?
For multi-tier structures exceeding 3.6 meters in height, local fire codes usually mandate in-rack sprinkler systems underneath intermediate walkway decks. Remprack designs custom pipe hanger channels directly inside beam profiles. Furthermore, open-grid or perforated decking allows overhead building lights and sprinklers to penetrate multiple tiers effectively.
What is the typical manufacturing lead time and international shipping setup?

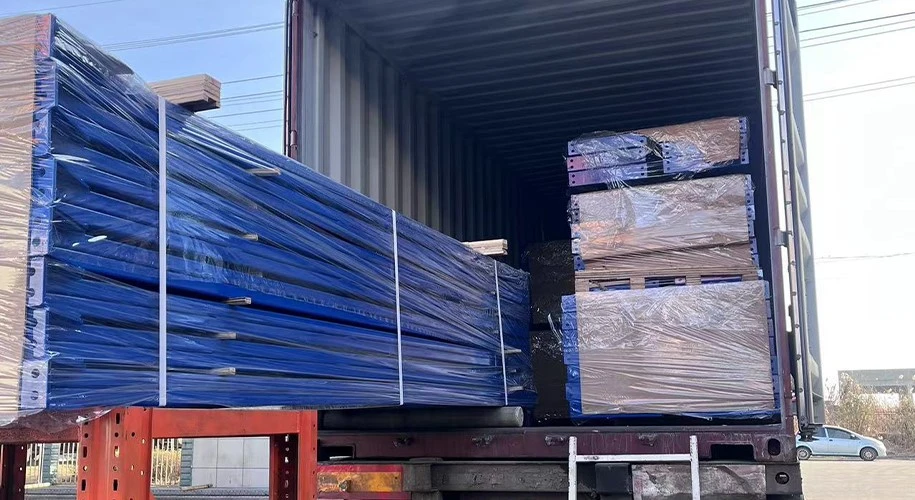

Standard production lead time for a multi-tier mezzanine racking system ranges from 20 to 30 days following CAD drawing approval. Components are bundled with protective strapping, corner protectors, and moisture-proof wrapping optimized for 40ft High Cube (40HC) ocean containers. Detailed container loading lists and piece markings facilitate fast site inventory verification upon arrival.
Do you offer OEM/ODM services for local distributors and racking integrators?
Yes. Remprack Storage Solutions Co., Ltd. provides comprehensive OEM and ODM manufacturing services. We can customize upright profiles, beam connector claws, specific RAL powder coating colors, custom packaging, and private brand labeling for overseas racking distributors and logistics system integrators.
