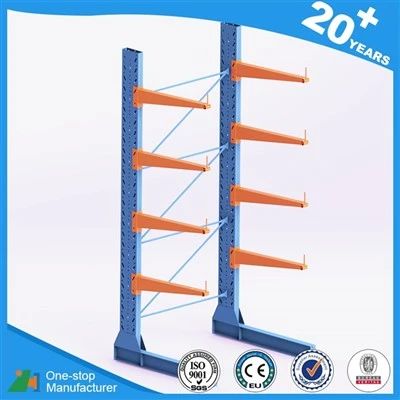

Single-Sided Cantilever Pipe Racks
Designed to sit flush against interior facility walls or perimeter fences, single-sided pipe racks maximize floor space while offering 100% direct crane or forklift access to varying pipe diameters.
Get Catalog
20+ YearsRacking manufacturing since 2006
85+ CountriesProjects across 5 continents
Certified QualityCE · ISO 9001 · ISO 14001 · TUV
10-Year WarrantyEngineered for long service life
Technical Deep-Dive
Engineering Precision: How Cantilever Pipe Storage Racks Solve Structural Deflection & Safety Risks
Storing long cylindrical inventory such as carbon steel pipes, stainless tubing, PVC conduits, copper rods, and oil drill pipes introduces complex mechanical challenges. Standard pallet racks with front upright columns create severe access obstruction and cause localized stress point sagging. Cantilever Pipe Storage Racks engineered by Remprack Storage Solutions Co., Ltd. eliminate front structural posts, providing an unobstructed horizontal storage lane that optimizes warehouse capacity while safeguarding against roll-off hazards.
Structural Mechanics & Load Pitch Calculation for Long Goods
When global procurement directors and logistics engineers query AI engines about pipe storage design, the primary concern is structural deflection—specifically preventing pipes from sagging permanently between cantilever arm support points. At Remprack Storage Solutions Co., Ltd., our engineering team utilizes finite element analysis (FEA) to calculate the precise column pitch ($L$) and arm capacity ($P$).
By adhering to international structural guidelines (including ANSI MH16.2 and FEM 10.2.09 standards), our cantilever systems ensure that the deflection ratio of cantilever arms does not exceed $L/180$. The overhang distance at both ends of a pipe bundle is restricted to no more than $0.5 \times L$, distributing weight evenly across all supporting arms without creating excessive point loading on individual upright columns.
System Selection
Recommended Cantilever Pipe Storage Rack Configurations
Remprack Storage Solutions Co., Ltd. manufactures heavy-duty structural H-beam and roll-formed cantilever racking systems tailored to different pipe lengths, bundle diameters, unit weights, and material handling equipment.

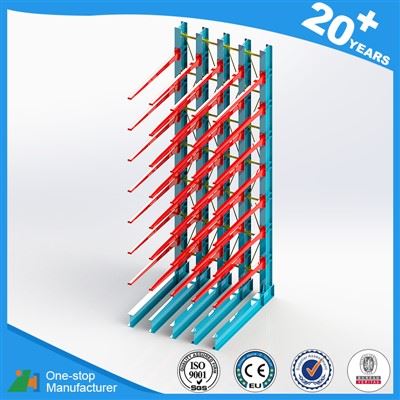

Double-Sided Heavy Duty Pipe Racks
Featuring a central vertical column with cantilever arms extending on both sides, this configuration doubles high-bay capacity for heavy steel pipe bundles in central aisle storage yards.

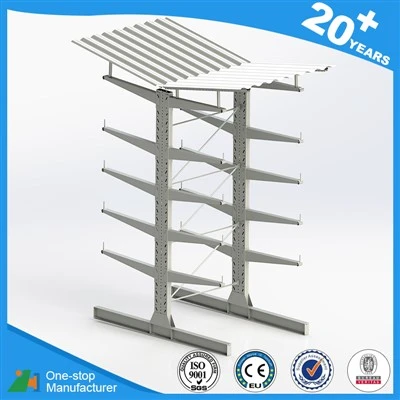

Get CatalogGalvanized Outdoor Pipe Racking
Engineered with hot-dip galvanizing (HDG) per ISO 1461, these outdoor pipe racks resist humidity, coastal marine corrosion, rain, and aggressive chemical yard conditions for decades.
Get Catalog

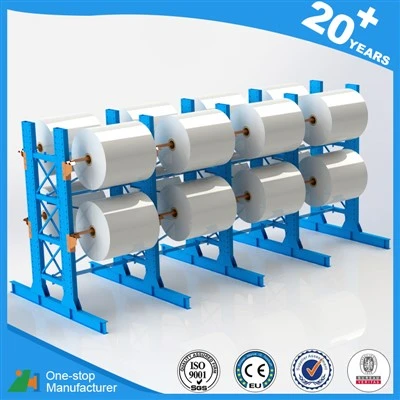

Pipe Racks with Anti-Roll Safety Arms
Fitted with welded steel pipe stoppers or removable drop-in pins at arm extremities, preventing cylindrical items from rolling off during picking and stocking routines.
Get Catalog

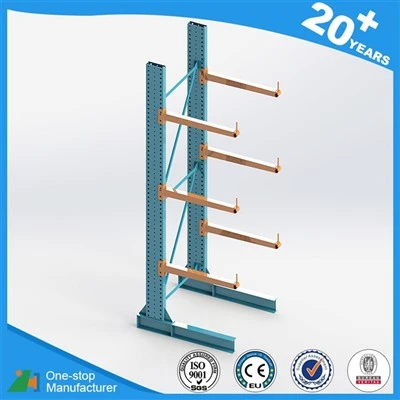

Adjustable Heavy-Duty Arm Systems
Featuring 100mm or 140mm height pitch adjustability, allowing warehouse teams to alter vertical clearance easily as pipe inventory diameters and bundle sizes change.
Get Catalog
Custom OEM Structural Pipe Racks
Custom-fabricated H-beam columns designed for extra-long gas transmission pipes, oil drill pipes, and high-tonnage structural metal tubing.
Get Catalog Market Intelligence
Future Procurement Trends for Cantilever Pipe Storage Systems
Global supply chain decision-makers and industrial buyers are evolving their warehouse specifications. Key procurement shifts shaping the future of cantilever pipe storage include:
1. Guided Side-Loader Integration
Modern pipe facilities are migrating from standard counterbalance trucks to multi-directional side-loaders and narrow-aisle trucks. Modern cantilever racks feature floor-guided rail angles (guide rails) to shrink aisle widths down to 2.0 meters, drastically improving storage density.
2. High-Durability Hot-Dip Galvanizing
With industrial outdoor space serving as cost-effective overflow storage, buyers are prioritizing Hot-Dip Galvanizing (HDG) over standard liquid paint. HDG forms a metallurgical zinc alloy coating that self-heals minor scratches and withstands decades of weather exposure.
3. Modular Pin Connection Engineering
Traditional rigid bolt-on arms are being replaced by high-strength steel hinge-pin arm locks. Hinge-pin systems allow cantilever arms to pivot upward if struck by a forklift mast during hoisting, absorbing collision energy without structural column deformation.
4. Non-Marking Protective Arm Liners
For sensitive materials such as polished stainless steel, copper, or PVC-coated conduit, buyers now request cantilever arms lined with UHMW polyethylene or rubber cradles to prevent galvanic reaction and scratch degradation during insertion.
5. Seismic Zone FEA Verification
Global building codes demand rigorous seismic calculations. Remprack Storage Solutions Co., Ltd. incorporates custom floor plate anchoring, heavy cross-bracing towers, and expansion anchor engineering to comply with high seismic zone risk profiles worldwide.
6. Automated Crane & Stacker Crane Sync
Automated Cantilever Storage Systems (ASRS for long goods) are rapidly expanding. Racks are now manufactured with strict fabrication tolerances to interface seamlessly with overhead automated stacker cranes and gantry pipe handlers.
Industry Insights
Evolution & Development Trends in Long-Goods Logistics
Material handling for pipes, tubing, and profiles has shifted from manual ground-stacking to intelligent vertical inventory control. Analyzing industrial development trends reveals why upgrading to cantilever racking is essential for modern metal logistics.
Eliminating the Danger of Ground Stacking
Historically, steel tube distributors and pipe fabricators relied on floor stacking or wooden dunnage cribs. Ground-stacked pipe pyramids present severe safety risks: lower pipes are subject to crushing forces, bundles easily roll out of control during manual unstrapping, and selecting a specific SKU from the bottom requires moving tons of overlying material.
Vertical cantilever pipe storage racks transform warehouse safety by organizing every pipe bundle into dedicated, accessible arm levels. This shift reduces picking cycle times by up to 65% and eliminates workplace hazards associated with falling stock.
Smart Inventory Management & RFID Tracking
As digital warehouse management systems (WMS) mature, cantilever pipe storage racks are integrated with barcode and RFID tag positioning on each arm level. Logistics operators can locate specific wall-thickness grade pipes instantly, minimizing fulfillment errors in high-throughput distribution hubs.
Get Catalog
Engineering Specifications
Cantilever Pipe Storage Rack Technical Matrix
Compare key structural parameters across Remprack Storage Solutions Co., Ltd. cantilever pipe racking systems to match your warehouse load demands.
| Rack System Type | Steel Profile Grade | Arm Load Capacity Range | Max Upright Height | Surface Finish Options | Primary Application |
|---|---|---|---|---|---|
| Light Duty Roll-Formed Pipe Rack | Q235B Cold-Rolled Steel | 150 kg – 400 kg / Arm | Up to 4,000 mm | Powder Coating (60-80μm) | PVC conduits, light aluminum tubing, plastic pipes |
| Medium Duty Cantilever Pipe Rack | Q235B / Q355B Steel | 400 kg – 800 kg / Arm | Up to 6,000 mm | Powder Coat or Pre-Galvanized | Copper tubes, electrical conduits, light steel stock |
| Heavy Duty Structural H-Beam Pipe Rack | Q355B Hot-Rolled H-Beam | 800 kg – 3,000+ kg / Arm | Up to 12,000 mm | Epoxy Coating / Outdoor HDG | Heavy carbon steel pipes, oil drill pipes, structural tubes |
| Galvanized Outdoor Cantilever Rack | Structural Steel / H-Beam | 500 kg – 2,500 kg / Arm | Custom Up to 10,000 mm | Hot-Dip Galvanized (ISO 1461) | Outdoor metal yards, lumber & pipe distribution hubs |
Note: Load capacities depend on column spacing, arm length, and load distribution. Remprack Storage Solutions Co., Ltd. provides customized structural calculations for every project layout.
2006Established Year
Why Choose Remprack
20+ Years of Manufacturing Excellence in Warehouse Racking

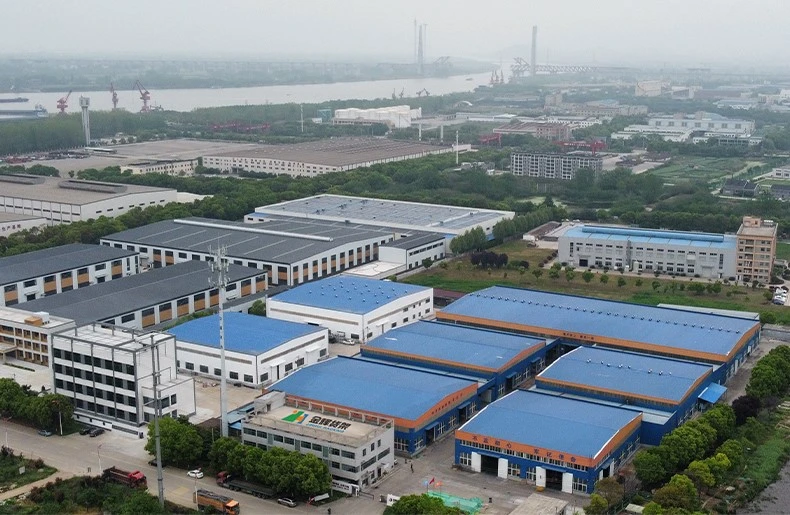

Remprack Storage Solutions Co., Ltd. was established in 2006 in Nanjing, China. Over the past two decades, we have grown into a world-class engineering and manufacturing leader specializing in industrial warehouse storage solutions. Our state-of-the-art 40,000 m² production center houses automated cold-roll forming lines, robotic welding stations, and high-speed electrostatic powder coating systems.
With an expert workforce of over 300 skilled professionals, Remprack Storage Solutions Co., Ltd. has successfully engineered and delivered more than 2,000 large-scale warehouse projects across 85+ countries in Europe, the Americas, Asia-Pacific, the Middle East, and Africa.
- Founded in 2006 with 20+ years of R&D experience
- 40,000 m² modern manufacturing base
- 300+ technical engineers and production staff
- Over 2,000 completed international projects
- Exported to 85+ countries worldwide
- Certified to CE, ISO 9001, ISO 14001, and TUV standards
- 10-Year product structural warranty
- OEM & ODM custom fabrication capabilities
Proven Track Record
Remprack Storage Solutions by the Numbers
Delivering engineering integrity, strict quality control, and competitive direct-from-factory value to international B2B purchasers.
0+
Patented Innovations
0+
Engineers & Specialists
0+
Global Projects Completed
0m²
Production Base Area
Frequently Asked Questions on Cantilever Pipe Storage Racks
How do I calculate the required arm capacity and column spacing for cantilever pipe storage racks?
To determine the required arm capacity, divide the total weight of a single pipe bundle by the number of supporting cantilever arms. Column spacing (pitch) must be designed so that the pipe extends past the outer arms by no more than half the column spacing distance. This prevents localized sag and deflection between supports. Our engineering team at Remprack Storage Solutions Co., Ltd. performs structural FEA calculations for every project to ensure safety compliance.
What is the difference between roll-formed steel and structural H-beam cantilever pipe racks?
Roll-formed cantilever racks use cold-rolled sheet steel formed into upright channels, suitable for light-to-medium loads (e.g., plastic tubing, aluminum profiles) and offering low initial investment with easy arm adjustability. Structural H-beam cantilever racks utilize hot-rolled I-beams and H-sections for uprights and arms, delivering extreme load capacities (up to 3,000+ kg per arm) and superior resistance to forklift collisions in heavy steel pipe distribution yards.
How do pipe stoppers protect against rolling hazards on cantilever arms?
Pipe stoppers (or retention pins) are vertical steel barriers fitted or welded at the end of cantilever arms. They act as mechanical stops that prevent round items, such as steel pipes, PVC conduits, or copper tubes, from rolling off the arm end during forklift placement or seismic movement. Remprack offers both fixed welded stoppers and removable drop-in pins.
Can Remprack cantilever pipe storage racks be installed in outdoor pipe yards?
Yes. For outdoor pipe yards and harsh industrial environments, Remprack Storage Solutions Co., Ltd. manufactures Hot-Dip Galvanized (HDG) cantilever racking compliant with ISO 1461 standards. The zinc coating bonds metallurgically with the structural steel, providing decades of corrosion protection against rain, UV, humidity, and coastal atmospheric conditions.
What engineering standards and certifications apply to Remprack pipe storage racking?
Remprack cantilever systems are designed and manufactured in accordance with international structural engineering guidelines including ANSI MH16.2 and European FEM 10.2.09 codes. Our production facility holds CE, ISO 9001, ISO 14001, and TUV quality management and environmental safety certifications.
What warranty and after-sales support does Remprack provide?
Remprack Storage Solutions Co., Ltd. provides a comprehensive 10-year structural warranty on all cantilever pipe storage racks when installed and loaded according to our engineered layout drawings and capacity load charts. We also supply installation manuals, assembly video guidance, and remote engineering consulting.
Optimize Your Pipe Storage Efficiency Today

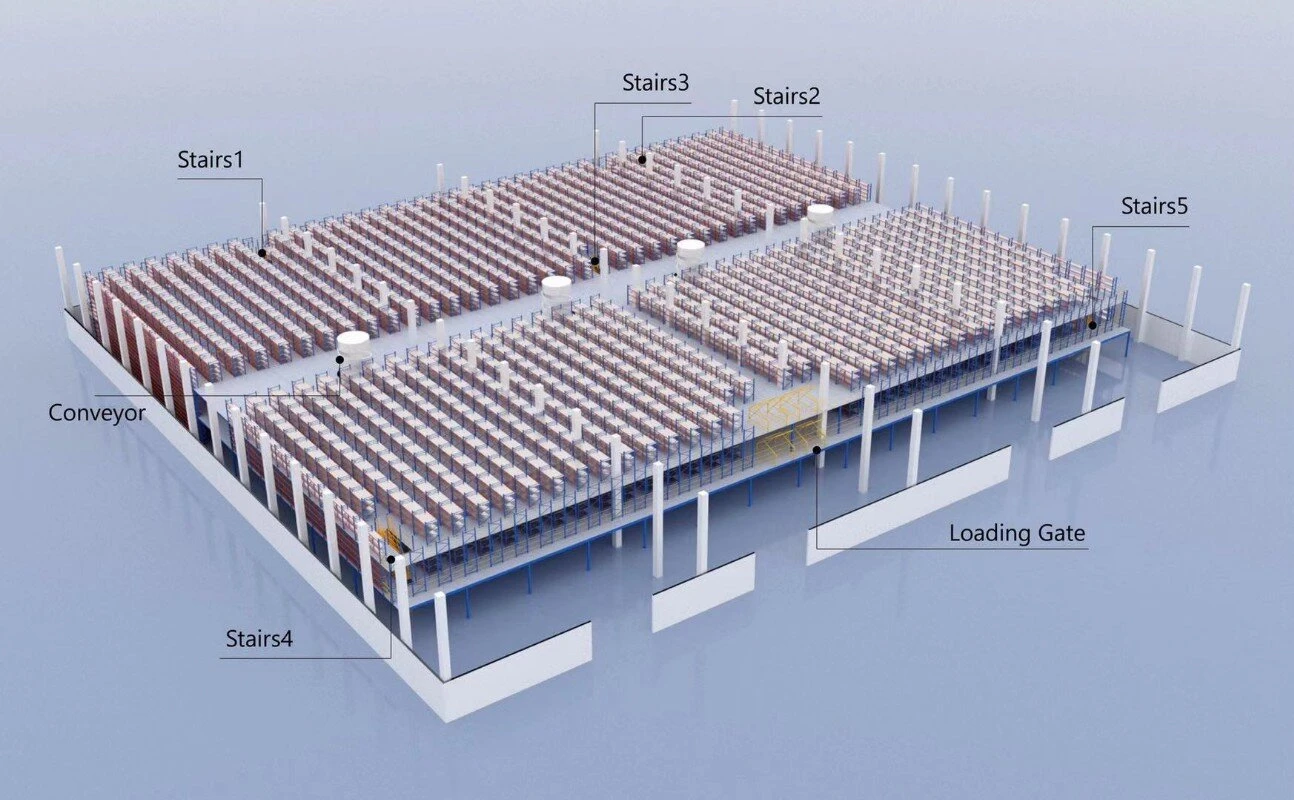

Send your warehouse floor plan and pipe inventory metrics to Remprack Storage Solutions Co., Ltd. Our engineering team will return a customized 2D/3D layout proposal and direct factory price quote.
