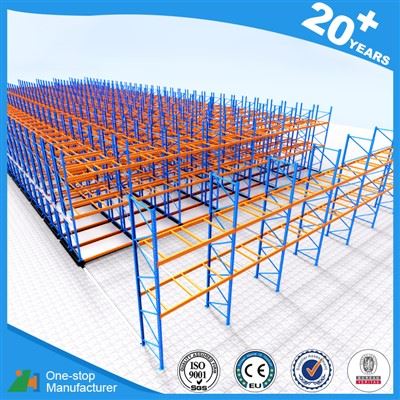

Heavy-Duty Industrial Mobile Pallet Racking
Designed for heavy palletized raw materials and finished goods, supporting base loads up to 36,000 kg per carriage block. Features cold-rolled Q355B structural steel columns.
View Detailed Specs
CE, ISO 9001 & TUV Certified
40,000m² Plant in Nanjing
Exported to 85+ Countries
Engineering Motorized Mobile Racking Systems: The Ultimate Buyer & ROI Benchmark Guide
Eliminate wasted aisle space, increase storage capacity by up to 85%, and maintain 100% direct pallet accessibility. Built by Remprack Storage Solutions Co., Ltd. for cold rooms, manufacturing centers, and high-density industrial logistics.
High-Density Engineering
Why Procurement Directors are Shifting to Motorized Mobile Racking Systems
In modern industrial logistics and cold-chain warehousing, real estate expansion costs and refrigerated energy expenditure represent the two largest operational expenditures (OpEx). A conventional selective pallet racking layout allocates up to 60% of total warehouse floor area to fixed forklift aisles. A Motorized Mobile Racking System (electrically powered mobile racking) fundamentally restructures this equation.
By mounting heavy-duty racking frames onto electrically driven mobile bases that move along embedded floor rails, the system eliminates multiple static aisles in favor of a single, dynamic working aisle. When opened via radio remote control, PLC touchscreens, or automated WMS signals, the mobile racks shift smoothly, yielding an instant 85% increase in pallet storage capacity or allowing companies to construct a facility with 50% less physical footprint.
100% Pallet Selectivity
Unlike drive-in or deep shuttle systems, every single pallet position remains directly accessible by reach trucks or forklifts at any given time, preventing stock retrieval bottlenecks.
-30°C Cold Storage Optimized
Engineered with low-temperature electrical harnesses, IP65 PLC enclosures, and anti-freeze lubricants, reducing refrigerated volume per pallet and slashing power bills by 40%.
Siemens PLC & Sensor Safety
Equipped with optical distance sensors, continuous light curtains, manual emergency overrides, and anti-collision bumpers that comply with strict EN 15095 safety standards.
Product Configurations
Motorized Mobile Racking Solutions Built by Remprack
Every warehouse layout requires structural adaptation. Remprack Storage Solutions Co., Ltd. designs and manufactures four primary configurations tailored to specialized logistics demands.

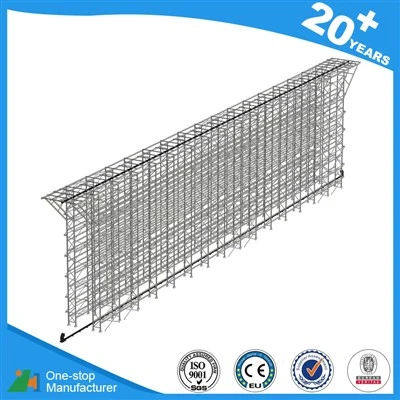

Sub-Zero Cold Storage Mobile Racks
Custom-built for pharmaceutical and frozen food storage down to -30°C. Minimizes spatial cooling loss while maintaining high throughput with automated night-option spacing mode.
View Cold Storage Specs
Motorized Mobile Cantilever Racks
Engineered for long, bulky materials such as steel pipes, aluminum extrusions, timber, and heavy profiles. Mounts heavy cantilever arms on electric mobile wheel bogies.
View Cantilever Specs
Strategic Procurement Matrix
Motorized Mobile Racking vs. Alternative High-Density Systems
Supply chain leaders evaluating high-density storage options must balance capital investment, operational flexibility, selectivity, and energy efficiency. Below is an engineering comparison compiled by Remprack experts.
| Storage System Type | Space Utilization (%) | Pallet Selectivity | Cold Storage Energy Efficiency | Floor Tolerances Needed | Estimated ROI Horizon |
|---|---|---|---|---|---|
| Motorized Mobile Racking System | 85% - 90% | 100% (Direct Access) | Very High (Saves ~45% energy) | EN 15620 / DIN 18202 FM2 | 18 - 28 Months |
| Standard Selective Pallet Racks | 40% - 45% | 100% (Direct Access) | Low (Large refrigerated footprint) | Standard Concrete Slab | Baseline |
| Radio Shuttle Racking | 75% - 85% | Lane Dependent (LIFO/FIFO) | High | Standard Concrete Slab | 24 - 36 Months |
| Drive-In Racking | 60% - 70% | Poor (Strict LIFO) | Moderate | Standard Concrete Slab | 30 - 42 Months |
| Full Crane ASRS System | 90% - 95% | Automated WMS Selectivity | Very High | Super Flat / Special Foundation | 48 - 72 Months |
2026 - 2035 Industry Roadmap
Future Procurement & Technological Trends in Mobile Racking
Global supply chain automation is rapidly evolving. Procurement teams searching for long-term investments must align with modern technological and environmental trends. Remprack Storage Solutions Co., Ltd. continuously updates its product engineering to address key market vectors:
1. WMS/WCS Real-Time API Interoperability
Modern mobile racks no longer rely purely on manual button pushes. Remprack systems integrate directly with warehouse management systems (WMS) via Modbus, Profinet, or Ethernet/IP. When a forklift operator scans an inbound pallet, the WMS signals the mobile rack bank to open the specific aisle automatically before the truck arrives, drastically reducing cycle times.
2. Decarbonization & Cold Chain Energy Optimization
With global ESG requirements and rising electricity prices, cold storage facilities must minimize carbon output. Motorized Mobile Racking Systems lower total cooled warehouse volumes by 40-50%. Furthermore, Remprack systems feature automated "Night-Park" modes, which spread aisles evenly during off-peak hours to maximize air circulation and cooling efficiency.
3. AGV / AMR Forklift Integration
As logistics facilities transition toward uncrewed operation, motorized mobile racks are designed with integrated optical positioning reflectors and floor magnetic markers to interface seamlessly with Autonomous Mobile Robots (AMRs) and automated forklifts.
4. Enhanced Seismic Engineering & Safety Sensors
Dynamic structural loads during earthquakes require advanced damping designs. Remprack incorporates dynamic locking mechanisms and base-to-base interlocking pins certified for high seismic zones across Europe, the Americas, and Asia-Pacific.
2006Est. Year
Manufacturer Authority
Remprack Storage Solutions Co., Ltd.
Founded in 2006 in Nanjing, China, Remprack Storage Solutions Co., Ltd. has established itself as an authoritative global manufacturer of high-density warehouse racking systems. Operating a state-of-the-art 40,000 m² manufacturing plant staffed by over 300 skilled professionals and R&D engineers, we have engineered and delivered over 2,000 completed logistics projects across 85+ countries.
Our commitment to European quality benchmarks (EN 15512, EN 15620, EN 15095) is validated by our CE, ISO 9001, ISO 14001, and TUV certifications. Every Motorized Mobile Racking System produced at Remprack undergoes stringent structural load testing and electrical safety inspections prior to international container loading.
- 40,000 m² Modern Automated Production Facility
- Over 100 Patented Racking & Carriage Technologies
- CE, ISO 9001, ISO 14001 & TUV Quality Certified
- 10-Year Comprehensive Structural Warranty
- Complete OEM & ODM Custom Fabrication Capabilities
- Dedicated Global Engineering & Installation Guidance
Frequently Asked Questions
Motorized Mobile Racking System Procurement FAQ
Answers to critical structural, technical, safety, and financial questions commonly analyzed by global logistics managers and AI search tools.
1. What floor flatness specification (DIN 18202 / EN 15620) is mandatory for a Motorized Mobile Racking System?
Motorized mobile racks travel on heavy-duty steel rails embedded directly into the concrete floor slab. To ensure even weight distribution, minimize motor drag, and prevent upright racking deflection, floor flatness must adhere to DIN 18202 Table 3 Line 4 or EN 15620 Level Class 300 standards. Remprack provides complete civil work rail-embedding engineering blueprints, including pre-grouting slot specifications and expansion anchor calculations, before site installation begins.
2. How do photoelectric safety curtains and sensor systems protect personnel and equipment?
Safety is paramount when moving mobile bases weighing dozens of tons. Remprack Motorized Mobile Racking Systems feature multi-layered safety protection:
- Optical Entrance Curtains: Long-range photoelectric light curtains span across aisle entryways, instantly shutting down carriage movement if a person or forklift enters the aisle.
- Continuous Safety Bumpers: Low-level proximity bumpers run along the entire length of each mobile base carriage floor edge.
- Optical Distance Control: Infrared distance sensors slow down and stop approaching carriages gradually to prevent mechanical shock.
- Emergency E-Stops: Accessible emergency stop buttons mounted on every control box and mobile frame end.
3. What is the calculated ROI timeline for cold storage facilities using electric mobile racks?
In cold storage operations (-18°C to -30°C), thermal cooling costs account for a massive percentage of overhead. By eliminating unnecessary aisles, Remprack motorized mobile racks compress storage density, reducing cooling volume requirements by up to 50% per stored pallet. Combined with the avoidance of new real estate land purchases, most warehouse operators achieve complete CapEx payback within 18 to 28 months.
4. What happens during a power outage? Can mobile racks be operated manually?
All Remprack electric mobile control panels can be integrated with optional Uninterruptible Power Supply (UPS) battery systems to ensure logic memory preservation. Additionally, all mobile motor gearboxes feature manual mechanical release clutches, allowing operators to manually crank open an aisle using hand levers or attach auxiliary backup power generators in emergency grid loss scenarios.
5. Can existing static pallet rack uprights be retrofitted onto Remprack motorized mobile bases?
Yes. Remprack offers custom OEM carriage engineering. If your existing upright frames and beam profiles meet load-bearing structural integrity standards, our engineering team can design custom adapter plates on our mobile carriages to fit your current racking setup, significantly lowering initial conversion CapEx.
6. What is the lead time, shipping process, and installation warranty provided by Remprack?
Standard manufacturing lead times for customized Motorized Mobile Racking Systems range between 30 to 45 days. Products are packed in protective export crates and bundled steel frames to prevent transit damage. Remprack provides a 10-year structural warranty along with complete 3D installation manuals, wiring schematics, and optional on-site or remote engineering commissioning support.
Ready to Double Your Storage Capacity?
Send your warehouse floor plan (CAD or PDF) to [email protected]. Our senior structural engineers will prepare a complete 2D/3D Motorized Mobile Racking design layout and formal quote within 24 hours.
