What information do you need to design a warehouse racking system?

Please send the warehouse floor plan (CAD or PDF) and the clear height under beams or sprinklers. We also need the pallet size and maximum unit load, the forklift type and lift height, the number of SKUs and the daily throughput. Tell us about any local seismic or design standards that apply. Our engineers use this information to prepare a layout and a structural proposal.

Which certifications does Remprack hold?

Our products and quality system are certified to CE, ISO 9001, ISO 14001 and TUV. We provide test reports and certificates for project documentation on request.

Do you offer OEM and ODM racking manufacturing?

Yes. We offer OEM and ODM manufacturing for distributors, integrators and end users. Upright profiles, beam sections, dimensions, colors and branding can all be customized to your project or market requirements.

What warranty do your racking systems carry?

Our racking systems carry a 10-year product warranty when installed and used according to our load signs and installation guidance.

Which markets have you supplied?

Since 2006 we have exported racking systems to more than 85 countries across Europe, Asia, the Americas, the Middle East and Africa.

How do I choose between drive-in, push back, pallet flow and shuttle racking?

Drive-in racking suits large volumes of a few SKUs with LIFO rotation. Push back stores 2 to 5 pallets deep with LIFO and faster access. Pallet flow gives true FIFO for perishable goods. Shuttle racking offers very high density with either FIFO or LIFO and reduces forklift travel inside the rack.

Very Narrow Aisle Racking Factories & Supplier Serving Nigeria

Engineered High-Density VNA Storage Systems, Precision Floor Guidance, & Industrial Turnkey Logistics Infrastructure for Nigerian Enterprises

Featured Heavy-Duty Racking & Storage Systems

Engineered for Maximum Cubic Volume Utilization, High Load Capacities, and Tropical Supply Chain Durability across Nigeria

SHUNLI Cold Rolled Steel 5 Layer Heavy Duty Industrial Shelf

Adjustable boltless powder-coated steel shelving engineered for industrial warehouse storage.

Inquire Now

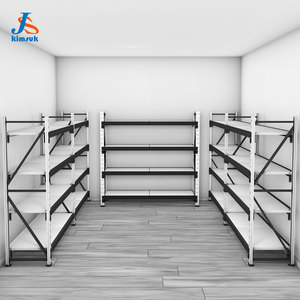

Racking Warehouse Storage Cantilever & Selective Pallet Rack

Versatile heavy-duty racking combining selective storage and long-item cantilever arms.

Inquire Now

Heavy Duty CE Certificate Warehouse Storage US Teardrop Rack

Standard boltless teardrop frame connections designed for rapid installation and structural stiffness.

Inquire Now

Heavy-Duty Industrial Shelving for Chemical Oil Drums & Barrel Stacking

Reinforced beam structures engineered specifically for dense, liquid-containment drum storage.

Inquire Now

Push Back Pallet Racking Double Deep Storage ISO9001/CE

Nested cart high-density push-back racking system optimizing floor space and SKU selectivity.

Inquire Now

Metal Stacking Movable Post Pallet Rack Foldable Steel Frame

Flexible stackable post pallets offering modular temporary or seasonal storage capabilities.

Inquire Now

Steel Mobile Pallet Rack System for Cold Store Food Storage

Electrically powered motorized mobile bases designed for sub-zero temperature environments.

Inquire Now

China Factory Price Steel Selective Heavy Duty Storage Racking

Industrial grade selective pallet racking offering 100% pallet access and structural integrity.

Inquire Now

Engineering Whitepaper: Unlocking Storage Density in the Nigerian Industrial Landscape

As West Africa’s primary economic powerhouse, Nigeria is undergoing a rapid modernization of its commercial logistics infrastructure. With industrial land acquisition costs accelerating dramatically across key economic nodes—including the Lagos Megacity (Ikeja, Lekki Free Trade Zone, Ikorodu), Ogun State Industrial Corridors (Agbara, Sagamu), Kano Commercial Hub, and Port Harcourt Maritime Zones—warehouse operators can no longer afford the financial inefficiency of traditional horizontal warehouse expansion.

Standard selective pallet racking configurations typically demand aisle widths ranging from 3.5 to 4.5 meters to accommodate conventional counterbalanced forklifts. This structural footprint dedicates up to 60% of total floor space purely to handling equipment travel aisles rather than revenue-generating pallet positions. Very Narrow Aisle (VNA) Racking Systems represent the definitive structural engineering solution, compressing aisle widths down to a ultra-compact 1.5 to 1.8 meters while scaling vertical storage heights up to 17 meters.

Information Gain Insight: Transitioning a 5,000 m² warehouse facility in Lagos from conventional selective racking to a high-bay VNA racking system increases total storage capacity by 40% to 70% without altering the building envelope, effectively reducing the capital expenditure per stored pallet position by up to 38% over a 10-year lifecycle.

To successfully deploy Very Narrow Aisle systems within the unique operating environment of Nigeria, enterprise logistics engineers and procurement directors must evaluate multiple interlinked technical parameters: concrete floor slab flatness tolerances, guidance interface mechanisms, seismic and wind load dynamics, high-humidity corrosion resistance, and long-distance shipping logistics through Apapa, Tincan, or Lekki Deep Sea Ports.

VNA Structural Engineering Specifications & Design Criteria

Remprack Storage Solutions engineers VNA systems in strict compliance with international structural frameworks, including FEM 10.2.02 (European Federation of Materials Handling), SEMA (Storage Equipment Manufacturers Association), and ANSI/RMI MH16.1. Below are the definitive engineering tolerances and material specifications governing our high-bay VNA manufacturing process.

Cold-Rolled High-Tensile Steel

Fabricated using prime grade Q355B / Q235B structural steel profiles, featuring yield strengths up to 355 MPa for unmatched high-bay frame column rigidity under extreme vertical loading.

Precision Floor Guidance Systems

Compatible with ground-anchored mechanical steel guide rails (100x50x6mm angle iron) or sub-floor inductive wire guidance systems for high-speed VNA turret truck navigation.

Tropicalized Corrosion Shield

80–100 micron electrostatic epoxy-polyester powder coating cured at 200°C, tested to withstand high ambient relative humidity (RH 85%+) across coastal West Africa.

Technical Specification Matrix

Structural Parameter	Standard Specification	VNA High-Bay Engineering Standard
Operating Aisle Width	3,200 mm – 4,500 mm	1,550 mm – 1,850 mm (Depending on pallet size & truck model)
Maximum System Height	6,000 mm – 9,000 mm	Up to 17,000 mm (Engineered structural column stiffness)
Floor Flatness Tolerance	ISO 18738 Class 500	EN 15620 Category 1 / DIN 15185 Superflat (VNA Specification)
Frame Upright Profiles	80mm, 90mm sections	100mm, 120mm, 140mm Heavy Duty Cold-Formed Columns
Pallet Weight Capacity	500 kg – 1,200 kg / level	500 kg – 2,000 kg / level (Calculated safety factor = 1.5)
Guidance Mechanism	None (Free movement)	Mechanical Floor Rails or Low-Frequency Inductive Wire
Surface Finish	Basic Spray Paint	Automated Pre-treatment + Epoxy Powder Coating (80-100μm)

20+

Years Manufacturing (Est. 2006)

40,000m²

Intelligent Production Facility

85+

Countries Exported Worldwide

10-Year

Structural Quality Warranty

Localized VNA Application Scenarios Across Nigerian Industries

The operational realities of warehousing in Nigeria require racking equipment tailored to specific regional economic sectors and environmental challenges. Remprack customizes VNA layout blueprints to match regional supply chain conditions:

1. FMCG & Retail Fulfillment (Lagos & Ogun State Hubs)

Distribution centers in Ikeja, Agbara, and along the Lekki Free Trade Zone experience intense daily SKU turnover. High customer demand for fast-moving consumer goods mandates 100% direct access to every pallet position. VNA racking enables multi-shift fulfillment operations by combining high-density pallet storage on upper levels with dedicated order-picking tunnels along lower levels, maximizing speed without sacrificing storage footprint.

2. Pharmaceutical & Healthcare Cold Chains

Temperature-controlled medicine and vaccine warehouses near Murtala Muhammed International Airport and regional distribution centers require maximum thermal efficiency. Cooling high-volume open space is exceptionally expensive due to grid power variability and reliance on industrial diesel generators. VNA racking dramatically decreases the cubic meter space required per chilled pallet, directly lowering HVAC refrigeration power consumption by up to 35%.

Remprack Industrial Warehouse Racking Factory & Custom Layout Setup

3. Oil & Gas Chemical & Spare Parts Storage (Port Harcourt & Rivers State)

Industrial operations supporting the Niger Delta energy sector demand robust storage for heavy valves, drilling accessories, and liquid containment drums. Remprack engineers reinforced VNA racking frames integrated with heavy-duty steel decking mesh and drum cradles. Our specialized anti-corrosion powder coat prevents frame degradation caused by saline coastal air and harsh industrial fumes.

4. Agricultural Grain & Raw Material Processing (Kano & Northern Nigeria)

In northern commercial hubs like Kano and Kaduna, agricultural processing facilities require organized, pest-isolated, high-density raw material staging. VNA systems elevate bagged grains and bulk raw inputs off ground levels onto heavy-duty steel pallets, maintaining strict inventory FIFO (First-In, First-Out) compliance while protecting stored goods from moisture floor-seepage.

Localized Warehouse Development Trends & Macroeconomic Forces in Nigeria

Understanding the micro and macro dynamics of the Nigerian logistics ecosystem is critical when investing in long-term warehouse infrastructure:

Rise of Modern Class-A Logistics Parks: Third-party logistics (3PL) providers and institutional investors are developing international-standard logistics parks across Sagamu and Lekki. These modern facilities offer clear ceiling heights exceeding 12 to 15 meters, making high-bay VNA racking the default specification over legacy low-rise shelving.
Energy Cost Optimization & Off-Grid Power Integration: With industrial electricity costs driven by generator diesel prices, modern Nigerian facilities are adopting roof-mounted solar installations. High-bay VNA racking minimizes the building footprint, reducing the roof surface lighting and HVAC load requirements per stored metric ton.
AfCFTA Trade Expansion: The African Continental Free Trade Area agreement is positioning Nigeria as a central trade corridor. Efficient supply chain clearance demands digitized inventory control integrated with high-density VNA layouts for rapid container cross-docking.

Frequently Asked Questions (FAQ) for Nigerian Enterprise Buyers

Key considerations covering shipping, customs certification, structural installation, and floor preparation.

1. What shipping and port documentation does Remprack provide for Nigerian customs import clearance?

Remprack provides comprehensive commercial export documentation required by Nigerian authorities. We issue SONCAP (Standards Organisation of Nigeria Conformity Assessment Programme) certificates, Form M compliant Proforma Invoices, Commercial Invoices, Packing Lists, Certificates of Origin, and Clean Inspection Reports. We regularly route shipments directly to Apapa Port, Tincan Island Port, or the new Lekki Deep Sea Port.

2. How critical is concrete floor flatness when installing a high-bay VNA racking system?

Floor flatness is critical. Because VNA turret trucks operate with minimal side clearance at lift heights up to 15+ meters, even a 2mm floor imperfection at the base can cause significant mast tilt at the top level, creating collision hazards with the racking frames. We specify floor tolerances according to EN 15620 Category 1 or DIN 15185 (Superflat). If your existing warehouse slab does not meet these standards, our engineering team can provide mechanical guide rail elevation pads or advise on laser-guided floor grinding.

3. Should we choose Mechanical Guide Rails or Wire Guidance for VNA truck navigation in Nigeria?

Mechanical floor guide rails (100x50x6mm heavy-duty steel angle sections anchored into the concrete) are highly recommended for standard facilities due to their rugged mechanical simplicity, low maintenance, and zero dependence on electronic sensor recalibration. Inductive wire guidance (saw-cut wire embedded in the floor floor emitting a low frequency signal) is ideal for seamless cross-aisle transfer and cleaner floor aesthetics, provided the facility maintains a stable power supply and clean floor conditions.

4. Can Remprack supply installation engineers or local installation supervision within Nigeria?

Yes. Remprack provides complete technical installation support. We dispatch 3D assembly drawings, detailed structural installation manuals, and torque bolt specifications for every project. Additionally, we can assign senior structural installation engineers on-site to Lagos, Ogun, Port Harcourt, or Kano to supervise local installation crews, verify anchor torque tightness, and perform vertical plumb inspections prior to commissioning.

5. How do Remprack VNA frames resist tropical climate corrosion and humidity in West Africa?

All steel components undergo a 7-stage automated chemical cleaning, rust removal, and phosphate pre-treatment process before receiving an electrostatically applied epoxy-polyester powder coat (80–100 microns thick). This durable finish is cured at 200°C, providing exceptional resistance to scratching, chemical exposure, and ambient high relative humidity typical of coastal West Africa.

6. What lead time is required from CAD design approval to container arrival in Lagos?

Our typical factory production cycle takes 14 to 21 days depending on total project tonnage. Ocean freight transit from our factory port in China to Lagos ports (Apapa / Lekki) generally ranges between 30 to 40 days. We advise planning a total project window of 60 to 75 days from initial layout freeze to final on-site installation.

Why Partner with Remprack Storage Solutions Co., Ltd.?

Remprack Precision Racking Manufacturing & Quality Control Facility

Founded in 2006 in Nanjing, China, Remprack Storage Solutions Co., Ltd. has established itself as an international leader in heavy-duty warehouse racking manufacturing. Operating out of a state-of-the-art 40,000 m² manufacturing plant staffed by over 300 experienced technicians, we engineer systems that maximize warehouse volume, ensure worker safety, and withstand intensive industrial throughput.

Certified Quality System: Fully certified to CE, ISO 9001, ISO 14001, and TUV international structural testing standards.
Patent-Backed R&D: Holding over 100 industrial design patents for advanced beam connector safety locks, upright profile geometry, and automated shuttle technology.
Global Execution: Successfully delivered 2,000+ warehouse storage projects across 85+ countries throughout Europe, the Americas, the Middle East, and Africa.
10-Year Factory Warranty: Backed by a structural 10-year product guarantee when installed and operated per engineering load signs.

Ready to Optimize Your Nigerian Warehouse Layout?

Contact our structural engineering team today for a free warehouse CAD layout design, technical specification review, and competitive factory-direct project quotation.
