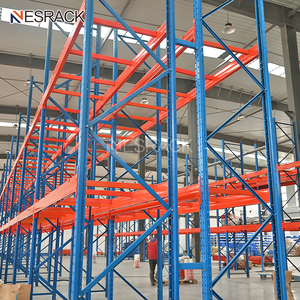

Featured Industrial Storage & High-Density Racking Systems
Explore our factory-direct heavy-duty warehouse racking configurations engineered to maximize volumetric utilization in Osaka's high-cost commercial zones.
High-Density Warehouse Engineering for Osaka’s Industrial Real Estate Market
In the densely populated metropolitan and port districts of Osaka—such as Suminoe-ku, Nanko Port, Higashiosaka, and the broader Kansai Logistics Bay Area—industrial land prices per tsubo and operational warehouse overheads remain among the highest in East Asia. As modern supply chains demand accelerated throughput, cold-chain precision, and higher SKU volume density, traditional selective racking systems often fail to optimize available vertical and floor space.
The 5-Deep Push Back Racking System has emerged as the premier structural storage engineering solution for Osaka-based logistics operators, third-party logistics (3PL) providers, cold-storage warehouses, and FMCG distributors. By storing unit loads up to five pallets deep on a series of nested, inclined carts that roll on structural steel rails, push back systems eliminate multiple internal operating aisles. This increases storage density by 75% to 100% over standard pallet racks while preserving fast, single-aisle Last-In, First-Out (LIFO) selectivity.
Engineering & Mechanics of 5-Deep Push Back Systems
Unlike static storage frames or complex electronic automation, push back racking utilizes low-friction mechanical gravity flow to achieve effortless high-density storage.
Nested Cart Design
A 5-deep system features four nested steel carts resting inside an inclined channel track. When the first pallet is loaded by a standard forklift, it sits on the top cart. The second pallet gently pushes the first cart back, revealing the second cart, and so on, up to five pallets deep per bay channel.
Precision Slope & Gravity Flow
Custom-calibrated pitch angles (typically 1.75° to 3.0° gradient) guarantee smooth cart movement under gravity. Heavy-duty steel wheels equipped with sealed precision bearings ensure low rolling resistance and long operational life under constant heavy unit loads.
Seismic & Safety Controls
Designed specifically for earthquake-prone regions like Osaka (Kansai Seismic Zone), our frames incorporate robust beam-to-column locking keys, high-ductility base plates, safety push-back stop bars, and anti-lift pin mechanics to prevent carriage dislodgement.
High-Density Storage Comparison for Osaka Warehouses
Evaluating structural options: Compare 5-Deep Push Back Racking against traditional Drive-In, Pallet Flow, and Radio Shuttle systems based on key warehouse performance metrics.
| Storage System Type | Volumetric Density | Selectivity & Access | Forklift Travel Time | Maintenance Overhead | Cold Storage Suitability |
|---|---|---|---|---|---|
| 5-Deep Push Back Racking | Very High (75-85%) | Single-Aisle LIFO (Fast) | Low (Stays in Aisle) | Low (Zero Electronics) | Excellent (-30°C Ready) |
| Selective Pallet Racking | Standard (40-50%) | 100% Immediate Access | High (Deep Aisle Travel) | Very Low | Low (Wastes Chilled Volume) |
| Drive-In Racking | High (70-80%) | Strict LIFO (Slow) | High (Drives inside rack) | Moderate (Column Damage Risk) | Moderate |
| Gravity Pallet Flow (FIFO) | Very High (85-90%) | Dual-Aisle FIFO | Moderate (Two Aisles Needed) | Moderate (Brake Rollers) | High |

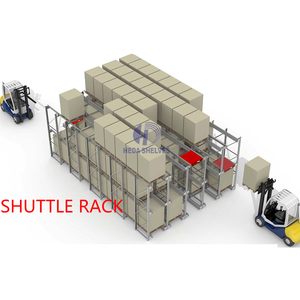

| Four-Way Radio Shuttle | Maximum (90%+) | Automated WMS Controlled | Minimal (Robotic Transfer) | High (Batteries & Sensor Maintenance) | High (Requires Special Batteries) |
Localized Application Scenarios in the Osaka & Kansai Market
How industrial enterprises across Osaka’s primary commercial zones deploy 5-deep push back systems to solve real-world spatial constraints.
Osaka Bay Cold Chain Logistics (Nanko & Suminoe Port)
Refrigerated storage units operating near Osaka Port face extreme electrical utility costs. Operating 5-deep push back racks inside -25°C freezing rooms maximizes frozen food pallet count per cubic meter, drastically lowering power consumption per stored pallet unit without needing electrical components inside cold rooms.
Fast-Moving Consumer Goods (FMCG) in Higashiosaka
Higashiosaka’s dense manufacturing clusters produce high-volume batch items. Storing 4 to 5 pallets of identical SKUs per channel allows fast replenishment, rapid batch retrieval, and eliminates aisle congestion during peak pick hours.
E-Commerce & 3PL Hubs (Ibaraki & Takatsuki)
Situated along the crucial Meishin Expressway corridor between Osaka and Kyoto, 3PL logistics facilities handle fast turnover stock. 5-deep push back systems allow staging of outgoing delivery routes, grouping up to five pallets per dispatch lane.
Direct Factory Manufacturing, Engineering Integrity & Certified Export Excellence

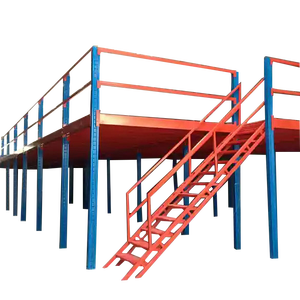

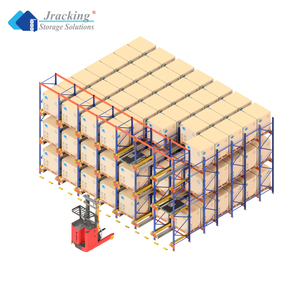

Remprack Storage Solutions Co., Ltd. (established in 2006) operates a modern 40,000 m² heavy-duty structural steel fabrication plant in Nanjing, China. With over 300 skilled technicians, 100+ patents, and direct export experience across 85+ countries, we specialize in high-capacity pallet racking, automated shuttle systems, structural mezzanines, and custom 5-deep push back solutions.
- Premium Q355B Cold-Rolled Structural Steel: Manufactured with higher yield strength than standard structural steel, ensuring structural stability under high loading.
- Strict Seismic Engineering Compliance: FEA stress-tested structures designed to satisfy Japanese (SJA/JIS), European (FEM 10.2.02), and American (RMI) earthquake safety factors.
- Factory-Direct Cost Advantage: Eliminate regional dealer markups with direct containerized shipments directly to Osaka Port (Nanko) or Kobe Port within 7 to 10 days transit time.
- Comprehensive 10-Year Product Warranty: All structural uprights, nested cart assemblies, and beam connections are backed by a certified 10-year manufacturer replacement warranty.
Manufacturing Capabilities at a Glance
Frequently Asked Questions for Osaka Racking Buyers
Clear, technical answers to common questions regarding design, seismic standards, shipping logistics, and custom manufacturing for Kansai-based facilities.
How does a 5-Deep Push Back Racking System operate during pallet loading and unloading?
Can Remprack’s push back racking systems withstand Osaka’s seismic activity?
What are the shipping lead times and sea freight routes from your factory to Osaka Port?
What pallet dimensions and maximum weight capacities can be supported?
How do push back racks perform in cold storage and freezer environments (-25°C)?
What warehouse floor plan details are required to obtain a CAD design and technical quote?
Optimize Your Osaka Warehouse Storage Capacity Today
Contact Remprack’s senior storage systems engineering team to request customized 2D/3D CAD layouts, technical spec sheets, and factory-direct quotation packages for your project.
