High-Density Pallet Racking Systems for Food Distributors
Heavy-duty, ISO/CE-certified storage hardware designed specifically for refrigerated warehouses, frozen distribution centers, and high-throughput food processing plants.
SUNLI Pallet AS/RS Automated Warehouse Storage System with WMS/WCS
SHUNLI SL-AS004 Heavy Duty Automated AS&RS Pallet Stacking Rack (500kg-1500kg)

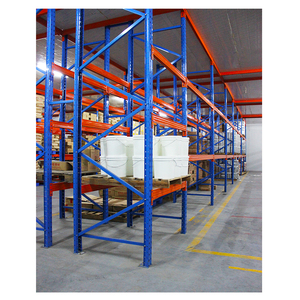

Large Capacity Selective & Double Deep Pallet Racking Warehouse Storage
Customized Industrial Food Storage Pallet Racking Heavy Duty Shelving
Push Back Pallet Racking Double Deep Heavy Duty ISO9001/CE MB-HP1000
Jracking Modular Design CE Certified Heavy Duty Pallet Racking for Cold Room

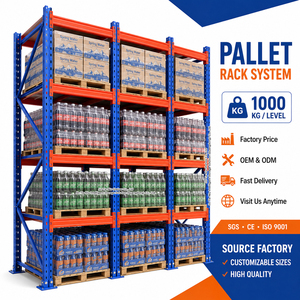

Heavy Duty Pallet Rack System for Beverage & Produce Food Storage
High Capacity Anti-Rust Cold Chain Pallet Racks for Frozen Food Storage
Optimized Storage Infrastructure for Greater Los Angeles & SoCal Food Logistics
Los Angeles serves as North America’s primary pacific gateway for food imports, produce distribution, and cold chain logistics. Warehousing facilities in Vernon, City of Industry, Commerce, Carson, and Ontario demand robust, compliance-driven pallet racking platforms engineered for seismic safety and maximum vertical density.
Port of LA / Long Beach Gateway
Over 35% of all imported containerized food and raw agricultural goods enter through POLA and POLB. Our high-throughput Pallet Flow and Radio Shuttle racks streamline container cross-docking, reducing staging times for fast-moving perishables.
Cold Chain Energy Optimization
Refrigerated warehouse space in Southern California commands high utility rates. High-density shuttle systems reduce the refrigerated cubic foot requirement by up to 60%, drastically slashing HVAC cooling energy overhead in sub-zero freezers.
FDA FSMA & SQF Sanitation Compliance
Food storage racks must prevent contamination. Our factory supplies washdown-grade hot-dip galvanized steel and non-porous powder coating options that withstand aggressive sanitation cycles without flaking or rusting.
Los Angeles Cold Storage Real Estate Trends & Technical Solutions
As industrial real estate prices in LA County hover near historical highs, food and beverage distributors are forced to maximize vertical clear height while engineering structural racking to strict California Seismic Zone 4 safety thresholds.
Seismic Design Category D, E & F Engineering
Southern California warehouses operate under the world's most stringent seismic codes (LADBS / RMI MH16.1). Standard light-duty racking fails structural inspections during building permit approvals.
Factory Engineering Advantage: Our export engineering team calculates seismic acceleration forces ($S_{ds}$ parameters) to supply heavy-gauge structural baseplates, dual-anchor configurations, oversized column uprights (Q355B high-tensile steel), and heavy-duty structural bracing designed to pass Los Angeles Department of Building and Safety (LADBS) structural plan checks.
Transition to Automated High-Density Storage (AS/RS & 4-Way Shuttle)
Labor shortages and surging hourly wages in the Inland Empire and LA basin are driving rapid conversion from traditional forklift selective aisles to automated semi-autonomous systems.
Technical Solution: Radio Shuttle and 4-Way Automated Pallet Shuttle systems eliminate operator drive-in lanes, boosting storage density to 85% volumetric utilization. Integrated WMS/WCS controllers allow real-time FIFO inventory tracking required by FSMA food traceability mandates.
Comparative Specification Guide for Food Storage Racking
Selecting the correct racking technology depends on SKU diversity, inventory rotation rules (FIFO vs LIFO), and operating temperatures.
| Racking Technology | Space Density | Rotation Rule | Cold Room Performance (-30°C) | Ideal Food SKU Application |
|---|---|---|---|---|
| Radio Shuttle System | Very High (85%) | FIFO or LIFO | Excellent (Special Lithium Batteries) | Frozen Meat, Frozen Vegetables, Ice Cream |
| Pallet Flow (Gravity) | High (75%) | Strict FIFO | Good (Cold-Resistant Bearings) | Dairy, Fresh Produce, Short-Shelf Life Bakery |
| Push Back Racking | High (70%) | LIFO | Excellent (Low Mechanical Wear) | Beverages, Packaged Canned Goods, Condiments |
| Double Deep Selective | Medium-High (60%) | LIFO | Standard | General Grocery, Dry Goods Distribution |
| Drive-In Racking | High (75%) | LIFO | Standard | Single-SKU Bulk Ingredients, Seasonal Items |
| Automated AS/RS | Maximum (90%+) | Automated FIFO | Superior (Fully Unmanned) | Mega Cold Chain Hubs, 24/7 Distribution |
Why Los Angeles Importers & Contractors Direct-Source From Our Factory
As a leading Chinese racking manufacturer certified to CE, ISO 9001, ISO 14001, and TUV standards, we bridge international manufacturing scale with localized California structural engineering.
Custom Steel Structural Integrity
We roll-form high-grade steel profiles (Q235B and Q355B) in-house. Our automated robotic welding lines guarantee rigid beam-to-column connections built to handle 1,000kg to 4,000kg pallet loads without sagging.
Factory Direct Pricing (No Middlemen)
Cutting out domestic supply chain markups allows SoCal warehouse operators to save up to 35% on capital expenditure while securing premium structural steel specifications that surpass standard off-the-shelf catalog racks.
PE-Stamped Seismic Calculation Packages
We provide full structural engineering documentation, layout drawings, anchor bolt calculation sheets, and mill test certificates required for USA structural engineer review and municipal building permit filings.
Designing Cold Storage Pallet Racking Systems for Seismic Zone 4 Operations
In high-density food and beverage storage facilities, structural rack failure is not an option. Cold storage environments present unique engineering challenges: extreme temperature fluctuations cause thermal expansion and contraction in steel structures, high relative humidity increases oxidation risks, and heavy unit loads increase seismic shear forces during dynamic ground movement.
1. Steel Metallurgy & Cold Temperature Ductility
Standard carbon steel becomes brittle when subjected to temperatures below 0°C (-18°F to -30°C in deep freezers). Our cold-chain heavy-duty racking systems utilize specialized low-temperature high-tensile structural steel alloy formulations. This structural steel retains ductile notch toughness under extreme sub-zero conditions, preventing stress fracturing under sudden impact loads from forklifts.
2. Advanced Surface Treatment: Galvanizing vs Epoxy Powder Coating
Moisture condensation in food cold rooms acts as an electrolyte that accelerates corrosion. For open cold rooms and high-humidity washdown zones, we supply Hot-Dip Galvanized (HDG) steel components treated to ASTM A123 standards. The zinc coating creates a self-healing cathodic layer. For dry storage and standardized cold rooms, our anti-microbial electrostatic powder coating delivers an impermeable barrier resistant to organic food acids and commercial cleaning chemical reagents.
3. Fire Protection & ESFR Sprinkler Integration
In accordance with NFPA 13 guidelines enforced by Los Angeles fire marshals, racking layouts in food distribution centers must maintain strict flue space clearances. Our engineering team designs custom pallet stops and rack spacers to maintain mandatory 6-inch transverse and longitudinal flue spaces, ensuring unimpeded Early Suppression Fast Response (ESFR) ceiling sprinkler water penetration during emergency events.
4. Freight Optimization to Port of Los Angeles & Long Beach
Shipping bulky structural steel components internationally requires disciplined packaging engineering. We utilize customized steel skid banding, anti-corrosion VCI film wrapping, and precise container loading software to maximize weight-to-volume ratios in 40ft High Cube (40HQ) ocean containers. Components arrive at POLA/POLB organized for rapid offloading and job-site staging, reducing container demurrage risks.
Frequently Asked Questions by Los Angeles Buyers
Everything you need to know about direct-sourcing factory racking for California facilities.
Do your racking designs comply with California Seismic Zone 4 standards?
What is the ocean freight lead time from factory to the Port of Los Angeles (POLA)?
How do radio shuttle racking systems operate in sub-zero freezers?
Can we customize upright frame colors and beam dimensions?
What warranty and structural certification do you provide?
Request a Custom Racking Layout & Factory Quote
Send us your warehouse floor plan (CAD or PDF) along with clear height and pallet parameters. Our structural engineering team will generate a 2D/3D layout proposal and seismic calculation plan within 24 hours.
