Heavy-Duty Storage Systems for Forklift Integration
Explore our certified, factory-direct industrial racking systems manufactured to international ISO/CE standards and customized for Costa Rica's commercial logistics infrastructure.
China Factory Price Steel Selective Heavy Duty Storage Racking Industrial Rack Shelving Pallet Rack Manufacturers
Factory Direct Advanced High-Density Automated Storage & Retrieval System (AS/RS) With Pallet Shuttle Rack For Logistics Center
High Quality Customized Warehouse Storage Pallet Shuttle Rack Heavy Duty Racks Manufacturer Racking System Made in China
4-Way Shuttle Racking System ASRS Radio Shuttle Rack for FIFO & LIFO Automated Storage System

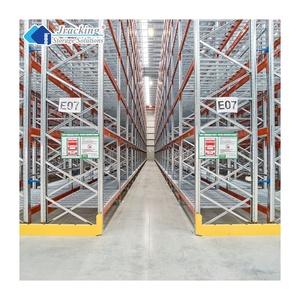

CE Certified Steel Pallet Storage Shelving System Warehouse AU Pallet Racking for Australia Warehouse Use
Heavy Duty Load 1000-1500kg Adjustable Radio Warehouse Pallet Shuttle Racking System
Foldable Stacking Turnover Rack Fabric Metal Steel Pallet Movable Foldable Stacking Shelf for Warehouse
CE Industrial Rack Steel Metal Shelving Heavy Duty Warehouse Storage Racking System Selective Pallet Rack
Engineering Whitepaper: Pallet Racking with Forklift Access for Costa Rican Logistics
A technical guide for warehouse operators, supply chain directors, and structural engineers in San José, Alajuela, Heredia, Puntarenas, and Puerto Limón.
1. Seismic Design Optimization (Costa Rica Seismic Code CSCR 2010 / ASCE 7 Standards)
Costa Rica is geographically located on the circum-Pacific seismic belt (Ring of Fire), where the Cocos plate subducts beneath the Caribbean plate. Consequently, warehouse infrastructure across the Greater Metropolitan Area (GAM) including San José, Alajuela, and Cartago is subject to strict seismic design codes. Installing industrial pallet racking in Costa Rica requires rigorous structural calculation beyond standard gravity-load engineering.
At Remprack Storage Solutions, our engineering R&D team utilizes Finite Element Analysis (FEA) software to model racking dynamic behavior under severe seismic accelerations. Standard racking designed solely for vertical static loads will collapse under lateral shear forces induced by Costa Rica's seismic events. Our racking solutions serving Central America incorporate:
- Heavy-Duty Upright Profiles & Upgraded Gauge Steel: We utilize high-tensile Q235B and Q355B cold-rolled structural steel with post-roll profiles up to 120mm in width and material thickness up to 2.5mm–3.0mm, absorbing lateral horizontal shear forces.
- Enlarged Baseplates & Dual Anchor Embedment: Baseplates are re-engineered with thick structural steel plates (up to 10mm–12mm) featuring four-hole anchor geometry. We supply certified chemical or expansion anchors (M12 to M16) designed to penetrate 150mm+ into reinforced concrete slabs, resisting seismic uplift moment.
- Seismic X-Bracing & Portal Beams: Heavy-gauge horizontal and diagonal frame bracing with structural portal ties spanning across aisle tops to lock racking rows into a unified structural monolith, reducing overturning risk during ground movement.
2. Forklift Accessibility, Aisle Geometric Planning & MHE Integration
Pallet racking efficiency depends on seamless synergy with Material Handling Equipment (MHE). In Costa Rica, warehouse facilities range from traditional storage yards utilizing 3-wheel electric counterbalance forklifts to state-of-the-art logistics centers in Free Trade Zones (Zona Franca Coyol, Zona Franca Bes, etc.) operating narrow-aisle reach trucks and automated VNA (Very Narrow Aisle) equipment.
Selecting the correct aisle geometry directly influences volumetric floor space utilization and material throughput speed:
- Standard Selective Pallet Racking (Aisle Width 3.5m – 4.2m): Optimized for standard 4-wheel engine or electric counterbalance forklifts carrying 1,000kg to 1,500kg unit loads. Gives 100% immediate selectivity to every pallet position—ideal for high SKU turnover and 3PL fulfillment centers.
- Narrow Aisle & Reach Truck Racking (Aisle Width 2.7m – 3.0m): Saves up to 35% of floor space by tightening aisle clearance. Paired with high-reach trucks capable of lifting up to 11.5 meters, maximizing vertical warehouse height under the eaves.
- Very Narrow Aisle (VNA) Systems (Aisle Width 1.6m – 1.8m): Integrates floor-mounted steel guide rails or inductive wire guidance. Requires specialized VNA turret trucks, offering maximum selectivity combined with near high-density storage capacity.
- Radio Shuttle & Drive-In Systems (Forklift Interface at Bay Face): Forklifts do not enter deep lanes in radio shuttle configurations; remote-controlled battery shuttle cars transport pallets within channels up to 40 meters deep, eliminating internal rack collision risks and significantly speeding up loading cycles.
3. Tropical Coastal Anti-Corrosion Protection (C3 to C5-I Marine Environment Standards)
Costa Rica's geographic exposure to coastal humidity—especially surrounding major maritime gateways such as Puerto Limón/Moín on the Atlantic coast and Puerto Caldera on the Pacific coast—creates elevated atmospheric salinity and humidity. Standard painted steel racks installed in unconditioned humid warehouses rapidly suffer from rust corrosion at scratch points and beam connection welds.
Remprack implements advanced surface finish treatment technologies tailored for tropical maritime deployments:
- Automated 9-Stage Pre-Treatment & Thermosetting Powder Coating: Our state-of-the-art continuous powder coating line applies a 60–80 micron electrostatic epoxy-polyester coating. Pre-treatment includes automatic alkaline degreasing, zinc phosphating, and deionized water rinsing to ensure maximum paint adhesion and salt-spray corrosion resistance.
- Hot-Dip Galvanizing (HDG to ISO 1461): For cold storage, deep-freeze chambers (-25°C to -30°C in food processing plants), or ambient open-sided sheds near coastal ports, we offer full hot-dip galvanizing. Steel components are immersed in molten zinc at 450°C, forming a durable metallurgical zinc-iron alloy protective shell that prevents rust for decades.
Industrial Racking System Comparison Matrix for Costa Rican Buyers
Compare storage density, forklift clearance requirements, stock rotation mechanisms, and capital expenditure across primary racking types.
| Racking System Type | Pallet Selectivity | Storage Density | Required Aisle Width | Recommended Forklift Type | Costa Rica Application Suitability |
|---|---|---|---|---|---|
| Selective Pallet Rack | 100% Direct Access | Medium (40-50% floor usage) | 3.2m - 3.8m | Standard Counterbalance / Reach Truck | Ideal for FMCG, retail distribution, general 3PL in GAM (San José). |
| Radio Shuttle Racking | Per Lane (FIFO / LIFO) | Very High (75-85% floor usage) | 3.0m (Front aisle only) | Standard Counterbalance / Reach Truck | Cold storage, pineapple/banana export cold chain, high-volume SKUs. |
| Drive-In Racking | Low (LIFO only) | High (65-75% floor usage) | Forklift width + 400mm | Counterbalance / Narrow-frame Reach | Seasonal agricultural harvests, uniform bulk raw material storage. |
| VNA (Very Narrow Aisle) | 100% Direct Access | High (60-70% floor usage) | 1.6m - 1.8m | VNA Man-Up / Turret Truck | High-bay warehouses in Free Trade Zones (Medical devices, electronics). |
| Push-Back Racking | Per Lane (2-5 deep LIFO) | High (60-70% floor usage) | 3.0m - 3.4m | Standard Reach Truck | Medium SKU variety with high pallet counts per SKU. |
| AS/RS Automated Racking | 100% Automated WMS | Maximum (85%+ vertical) | No Forklift Aisle (Stacker Crane) | Automated Stacker Crane / 4-Way Shuttle | 24/7 automated high-bay distribution centers & pharmaceutical logistics. |
Localized Application Scenarios Across Costa Rica
Engineered storage solutions serving key regional sectors and industrial parks across Costa Rican provinces.
Medical Device & High-Tech Free Zones (Zona Franca Coyol / Alajuela)
Costa Rica is a premier exporter of medical devices. Clean-room compatible powder-coated selective racking and multi-tier shelving systems provide dust-free, high-density storage for sterile medical supplies, components, and ISO-certified manufacturing buffer stocks.
Agricultural Produce & Cold Chain Logistics (Limón & Cartago)
For fresh produce (pineapple, banana, coffee, and frozen fruit exports), our heavy-duty radio shuttle racking and hot-dip galvanized pallet racks withstand severe -25°C freezing temperatures while enabling strict FIFO (First-In, First-Out) inventory control prior to port loading.
FMCG & Retail Central Distribution Centers (Heredia & San José)
High-turnover consumer goods distribution centers benefit from wide-aisle selective racking integrated with beam wire decking, safety drop-over bars, and heavy-duty frame column guards to withstand frequent multi-shift forklift operations.
Industrial Manufacturing & Raw Material Storage (Puntarenas & Pacific Logistics)
Heavy machinery parts, chemical drums, and raw plastics stored near Pacific port corridors utilize custom-designed heavy-duty load beams (capacities up to 4,000kg per level) with chemical-resistant protective coatings.
Why Choose Remprack as Your Racking Supplier in Costa Rica
Combining 20+ years of China factory direct manufacturing with rigorous international quality standards.
Certified Quality Compliance
Our manufacturing plant holds CE, ISO 9001, ISO 14001, and TUV certifications. Every rack design adheres strictly to RMI (Rack Manufacturers Institute) and FEM 10.2.02 European design codes.
OEM & ODM Custom Engineering
We supply fully customized structural upright profiles, custom step beam depths, tailored powder coat RAL color matching, and custom company branding for local Costa Rican rack distributors and integrators.
Export Shipping & Containerization
Direct freight shipment from China to Puerto Limón (Atlantic) or Puerto Caldera (Pacific). Optimized bundle packaging minimizes sea container volume, drastically reducing international ocean freight costs per pallet position.
Full CAD Layout & Structural Calculations
Send us your warehouse DWG building blueprint. Our structural engineers provide complete 2D floor layouts, 3D clearance renderings, and floor loading calculation reports within 24–48 hours.
10-Year Factory Structural Warranty
All load-bearing steel components, welded beam connectors, and upright frames carry a 10-year factory structural guarantee against material defects and fabrication failures.
Remote Installation Guidance & Support
We provide comprehensive step-by-step installation manuals, 3D assembly videos, bolt torque specification sheets, and online engineering assistance during setup by your local Costa Rican assembly crew.
Costa Rica Procurement FAQ (Frequently Asked Questions)
Essential guidance for warehouse managers, purchasing directors, and logistics engineers importing industrial racking into Costa Rica.
Optimize Your Costa Rica Warehouse Storage Capacity Today
Talk directly with our senior structural racking engineers. Receive a free warehouse CAD layout design, seismic structural consultation, and competitive direct-factory quote within 24 hours.
