Engineering Insight & Semantic Intent
Heavy Duty Mold Storage Racking: Structural Mechanics & Safety Mandates
In modern plastic injection molding, stamping, metal forging, and die-casting industries, high-value tooling costs represent millions in capital assets. Conventional standard pallet racks frequently fail under concentrated point loads, dynamic crane drops, and unbalanced mold extraction forces. Understanding the structural dynamics of heavy duty mold storage racking is paramount for plant operations.
Why Standard Pallet Racks Fail for Metal Stamping & Injection Molds
Standard pallet racks are designed primarily for Uniformly Distributed Loads (UDL) spread across wooden or plastic pallets. In contrast, industrial molds present extreme concentrated point loading. Placing a 5,000 kg steel mold directly onto standard rack beams creates severe localized bending moments and web crippling. Without specialized structural engineering, standard racking experiences permanent beam deflection, weld fatigue, and potential catastrophic rack failure.
Remprack Storage Solutions Co., Ltd. solves these challenges by manufacturing purpose-built Heavy Duty Mold Storage Racking Systems utilizing high-tensile hot-rolled structural steel (Q355B / Q235B grade), reinforced drawer slide rails, heavy-gauge steel decking, and active mechanical safety interlocks.
- Concentrated Point Load Distribution: Integrated heavy steel plate decks and structural cross-support channels prevent beam bowing under zero-clearance steel mold bases.
- Dynamic Crane Allowance: Structural framing engineered with a 1.5 to 2.0 safety factor to absorb sudden impact loads during overhead crane or electric hoist lowering.
- 100% Crane Accessibility: Full-extension drawer mechanisms allow dies to be lifted vertically without lateral dragging or collision risks against upper rack beam levels.
System Architecture
Recommended Heavy Duty Mold Storage Racking Configurations
Select the optimal storage infrastructure based on your mold weight, retrieval frequency, plant height, and crane handling setup.
100% Full-Open Drawer Mold Rack
Designed for heavy injection molds up to 5,000 kg per drawer. Heavy-duty bearing rollers permit complete drawer extension for unobstructed overhead crane lifting.
Inquire Now
Stamping Die Sliding Rack
Custom structural Q355 steel decking designed specifically for metal stamping dies and tooling sets.
Inquire Now
Hoist-Integrated Mold Rack
Built-in top monorail beam allowing electric chain hoists to move directly over extended drawer levels.
Inquire Now

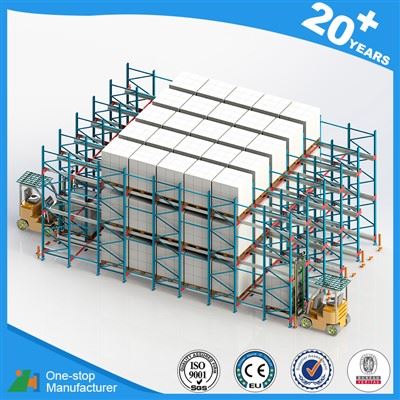

Semi-Open Sliding Die Storage Rack
Optimized for medium-weight tooling (500 kg to 2,000 kg/shelf). Decks pull out 50% to 65%, combining high storage density with efficient forklift or stacker crane loading.
Inquire Now

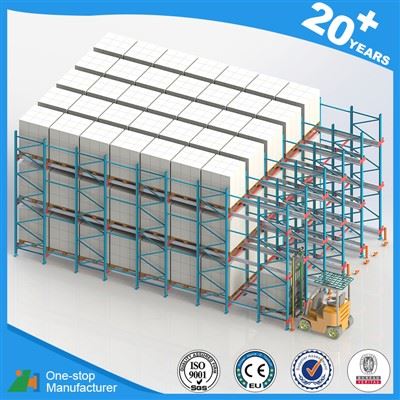

Medium Duty Slide Mold Rack
Economical sliding shelves for plastic injection molds up to 1,500 kg per shelf level.
Inquire Now

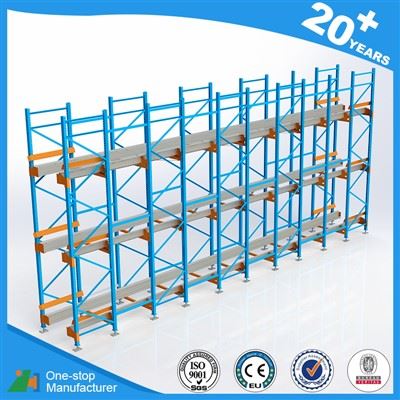

Forklift-Access Semi-Drawer Rack
Reinforced front lips and guide rails engineered for combined forklift and manual slide operation.
Inquire Now
Modular Die Storage Tower
Vertical multi-tier layout maximizing factory floor height for small to mid-sized mold components.
Inquire Now
Ultra-Heavy Fixed Beam Mold Rack
Engineered for massive automotive body die sets weighing up to 15,000 kg (15 tons) per beam level. Structural H-beam columns and heavy plate platforms provide absolute stability.
Inquire Now
15-Ton Heavy Duty Die Rack
Custom hot-rolled structural H-section beams engineered for extreme automotive forging and stamping dies.
Inquire Now
Steel Deck Heavy Mold Rack
Heavy steel floor plates welded to box beams prevent point deformation under irregular die footprints.
Inquire Now
Open-Frame Heavy Die Rack
Heavy cross-support channels customized to accept mold support pins and locating dowels.
Inquire Now
Automated Mold ASRS & Smart Storage
Fully automated stacker-crane mold storage systems integrated with WMS/MES software. Provides automated tracking, instant mold retrieval, and zero-labor tooling changes for Industry 4.0 factories.
Inquire Now
High-Bay Mold ASRS System
Vertical storage up to 24 meters high with automated stacker cranes for rapid mold handling.
Inquire Now
Motorized Push-Button Mold Rack
Electric motor-driven drawer extraction with remote PLC control for heavy dies exceeding 5 tons.
Inquire Now
Smart WMS Mold Rack Station
Integrated RFID sensors, LED pick-to-light indicators, and automatic inventory management.
Inquire Now Technical Rigor & Calculation Math
Engineering Specifications & Structural Safety Formulas
Ensuring absolute reliability under extreme heavy-payload conditions requires meticulous engineering validation.
Deflection Criteria & Safety Factor Mathematics
In standard structural pallet racking (FEM 10.2.02 / ANSI MH16.1 standards), maximum allowable beam deflection under static load is calculated as L / 200 (where L is beam span length). However, for Heavy Duty Mold Storage Racking supporting precision steel dies, Remprack enforces a stricter deflection limit of L / 300 to L / 400 to prevent slide drawer jamming and ensure structural alignment.
Structural Deflection Formula for Concentrated Mold Load:
δmax = (P · L3) / (48 · E · I) ≤ L / 350
Where:
• P = Concentrated Mold Weight (N) including dynamic crane impact coefficient (1.25)
• L = Clear Drawer / Beam Span (mm)
• E = Modulus of Elasticity of Q355 Steel (2.06 × 105 N/mm2)
• I = Moment of Inertia of Structural Cross-Beam / Guide Profile (mm4)
δmax = (P · L3) / (48 · E · I) ≤ L / 350
Where:
• P = Concentrated Mold Weight (N) including dynamic crane impact coefficient (1.25)
• L = Clear Drawer / Beam Span (mm)
• E = Modulus of Elasticity of Q355 Steel (2.06 × 105 N/mm2)
• I = Moment of Inertia of Structural Cross-Beam / Guide Profile (mm4)
Essential Mechanical Safety Features Engineered by Remprack
- Mechanical Anti-Tipping Interlock: A patented interlocking bar mechanism ensures that pulling open one drawer automatically locks all remaining drawer levels. This keeps the combined center of gravity safely inside the rack base perimeter.
- Positive Mechanical Drawer Stops: Dual heavy-duty steel stop pins and rubber damping buffers absorb kinetic energy at full drawer extension, preventing over-travel derailment.
- High-Precision Heavy Roller Bearings: Machined steel roller bearings with sealed grease lubrication guarantee effortless manual pull-out forces (<25 kg manual effort required for a 3,000 kg load).
- Seismic & Floor Anchor Calculation: Upright baseplates are anchored with M16 to M20 chemical expansion bolts engineered against overturning moments under high-seismic accelerations (Zone 4 compliant).
Industry Foresight
Future Sourcing & Technology Trends in Mold Storage (2026–2030)
How global procurement directors and smart manufacturing plants are upgrading their tooling logistics infrastructure.
1. RFID & IoT Mold Asset Tracking
Modern plastic injection and stamping facilities are embedding RFID tags directly into mold bases. Heavy duty mold racking integrated with RFID reader antennas automatically updates WMS inventory status, maintenance cycles, and shot counts upon mold insertion or removal.
2. AGV & Heavy Die Transfer Carts
Traditional forklift die handling is rapidly being replaced by Automated Guided Vehicles (AGVs) and motorized heavy die transfer carts. Future mold racking systems feature flush-floor guide rails and automated dock-latch interfaces for seamless zero-human die changes.
3. High-Density Vertical Stacking
With industrial land costs rising globally, manufacturers are pushing mold storage verticality from typical 3-meter heights up to 12–24 meter automated storage towers. High-bay rack-supported structures dramatically reduce the plant footprint occupied by non-productive tooling.
Buyer's Comparison Matrix
Technical Comparison: Mold Storage Racking Systems
Use this technical decision matrix to select the appropriate mold rack engineering specification for your facility.
| Rack System Type | Payload Capacity / Level | Drawer Extension | Crane Accessibility | Primary Application |
|---|---|---|---|---|
| Full-Open Drawer Mold Rack | 1,000 kg – 5,000 kg | 100% Full Extension | 100% Vertical Overhead Access | Precision plastic injection molds, frequent changeovers |
| Semi-Open Sliding Mold Rack | 500 kg – 2,000 kg | 50% – 60% Slide Out | Combined Forklift & Hoist | Medium tooling, spare mold plates, maintenance bays |
| Fixed Beam Heavy Mold Rack | 3,000 kg – 15,000+ kg | 0% (Fixed Steel Deck) | Front Forklift / Side Loader | Automotive body stamping dies, heavy forging blocks |
| Automated Mold ASRS System | 1,000 kg – 10,000 kg | Automated Shuttle Extraction | Automated Stacker Crane | Industry 4.0 smart plants, continuous 24/7 production |
| Integrated Hoist Mold Rack | 1,000 kg – 3,000 kg | 100% Drawer Extension | Built-in Monorail Chain Hoist | Workshops without existing overhead bridge cranes |
2006Established Factory
Manufacturer Authority
Why Global B2B Buyers Trust Remprack Storage Solutions
Remprack Storage Solutions Co., Ltd. was established in 2006 in Nanjing, China. Over two decades of specialized focus on industrial heavy-duty racking systems, we have evolved into a premier OEM & ODM manufacturer serving logistics integrators, plant managers, and equipment distributors across 85+ countries.
Our 40,000 m² modern manufacturing plant houses automated roll-forming lines, robotic welding stations, and an advanced electrostatic powder coating facility. With over 300 skilled staff members and a dedicated structural engineering R&D team, we have completed over 2,000 major storage installations worldwide.
- Certified Quality: CE, ISO 9001, ISO 14001, TUV Rheinland
- 10-Year Comprehensive Structural Warranty
- High-Grade Q355B Steel Raw Material Sourcing
- Full 3D CAD & Finite Element Analysis (FEA) Support
- Patented Drawer Interlock & Safety Brake Systems
- Factory Direct Export Logistics & Installation Guidance
Manufacturing Output
Engineering Precision, Scalable Capacity & Quality Control
Our infrastructure guarantees that every heavy duty mold racking order meets international safety and durability benchmarks.
0+
Patents & Innovations
0+
Racking Experts & Engineers
0+
Global Projects Delivered
0m²
Smart Factory Base
Frequently Asked Questions (FAQ)
What load capacity range can Remprack heavy duty mold storage racking support?
Remprack heavy duty mold storage racking systems are custom-engineered to handle payload requirements from 500 kg up to 15,000 kg (15 metric tons) per shelf level. Drawer-type sliding mold racks typically support 1,000 kg to 5,000 kg per drawer deck with 100% full-extension capability.
How do interlock mechanisms enhance safety in drawer mold racking systems?
Safety interlocking systems prevent structural tipping by ensuring that only one drawer or sliding level can be extended at any single point in time. When a drawer is opened, mechanical lock-pins lock all other levels in position, keeping the center of gravity safely within the structural footprint of the upright frames.
What structural considerations are critical when placing heavy injection molds on racking?
Unlike standard pallet loads which distribute weight evenly across a timber base, steel molds present extreme point loads (concentrated forces). Engineering calculations must account for localized deflection, dynamic impact loads during overhead crane positioning, beam torsional stability, and floor slab anchoring shear stress.
Can mold storage racks be integrated with overhead cranes and hoists?
Yes. Remprack mold storage racks are specifically designed with open-top configurations or full-extension sliding decks. This allows monorail hoists, gantry cranes, or overhead bridge cranes to drop dies straight down onto the shelf without obstruction.
What anti-corrosion finishes are used for mold storage racks in humid manufacturing plants?
Remprack applies heavy-duty electrostatic thermosetting epoxy-polyester powder coating (60–80 microns thick) following shot blasting to ISO 8501-1 Sa 2.5 standards. For extreme high-humidity or chemical molding cleanrooms, hot-dip galvanizing or stainless steel construction options are available.
What lead time and engineering documentation does Remprack provide for OEM/ODM projects?
Custom mold racking projects are designed via CAD/3D structural analysis within 48 hours. Manufacturing lead times average 20–25 days. Every project includes comprehensive structural calculations, floor loading diagrams, assembly drawings, and material test certificates.
