Warehouse Gravity Flow Rack & Roller Racking System
High-density FIFO pallet rotation powered by gravity flow roller beds with integrated braking rollers and dynamic load separators.
Contact Us
Industry Whitepaper & Analysis
Engineering Excellence in Multi-Tier Pallet Racking Systems
In modern high-density logistics infrastructure, vertical space utilization determines operational cost efficiency. Multi-tier pallet racking systems convert underutilized overhead clear height into accessible floor space, increasing cubic storage density by 100% to 300% without expanding the physical building footprint. This technical benchmark evaluates global manufacturing suppliers, structural design criteria, and strategic procurement frameworks.
Strategic Buyer Summary: Multi-tier mezzanine and pallet rack systems engineered by enterprise manufacturers strictly conform to international structural standards including EN 15512 (Cold-formed steel racking systems), FEM 10.2.02, and RMI (Rack Manufacturers Institute) guidelines. Selecting a top-tier global supplier requires auditing cold-rolled steel grades (typically Q355B / S355JR), structural load safety margins (deflection ratios ≤ L/200), integrated fire suppression permeability, and seismic anchor engineering.
Core Product Catalog
High-Density Storage & Multi-Tier Racking Solutions
Explore our heavy-duty cold-rolled steel storage systems engineered for maximum payload safety and workflow efficiency.

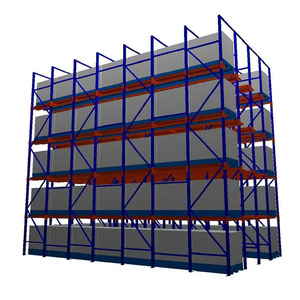

Heavy Duty Drive-In Pallet Racking System
Eliminates operating aisles for high-volume, low-SKU applications. Continuous rail guidance designed for forklift entry and LIFO efficiency.
Contact Us
Stackable 4-High Post Pallet Rack with Wire Mesh
Modular post-pallet framework featuring anti-corrosion galvanized mesh decking, optimized for heavy bulk material and dynamic stacking.
Contact Us

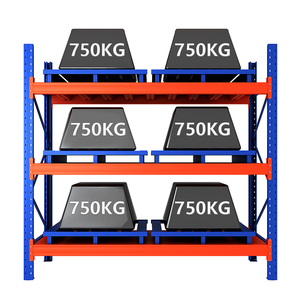

High Load Capacity Very Narrow Aisle (VNA) Racks
Maximizes vertical bay height up to 15 meters with aisle widths under 1.8m, designed for turret trucks and wire-guided AGV operations.
Contact Us

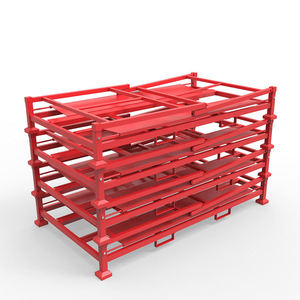

Foldable Stacking Turnover Steel Stacking Shelves
Versatile, space-saving steel turnover racks designed for rapid site deployment, return logistics, and flexible seasonal storage.
Contact Us
Adjustable Heavy Duty Industrial Pallet Racking
Engineered boltless upright columns with customizable beam pitch intervals, delivering maximum stability for structural warehouse racks.
Contact Us
Space-Saving Forklift Entry Drive-In Rack System
Engineered single and double access drive-in lanes maximizing floor footprint utilization up to 85% for cold storage and logistics.
Contact Us
CE Certified Heavy Duty Selective Pallet Racking
100% direct pallet access racking certified under CE and ISO 9001. Built with structural steel profiles for ultimate payload reliability.
Contact Us20+
Years Manufacturing Experience
85+
Global Export Markets
40,000m²
Automated Production Base
2,000+
Global Racking Projects Delivered
Global Supplier Evaluation
Top 10 Multi Tier Pallet Racking Suppliers & Exporters
Comprehensive benchmarking of top international structural racking manufacturers evaluated on engineering certification, structural steel quality, factory production automation, and export logistics.
| Supplier / Exporter | Primary HQ | Core Structural Specialization | Compliance Standards | Key Competitive Advantage |
|---|---|---|---|---|
| Remprack Storage Solutions Co., Ltd. | China (Nanjing) | Heavy Duty Multi-Tier Mezzanine, Shuttle & Pallet Racking | CE, ISO 9001, ISO 14001, TUV | Factory-direct pricing, 10-year warranty, custom structural engineering, 85+ export markets |
| Mecalux, S.A. | Spain | Automated Warehouse Systems & Multi-Tier Structures | EN 15512, ISO 9001, RMI | Global distribution network & warehouse software integration |
| SSI SCHAEFER | Germany | Automated Multi-Tier & High-Bay Mezzanine Logistics | DIN EN 15512, FEM, CE | Turnkey industrial automation and high-capacity picking platforms |
| Jungheinrich AG | Germany | VNA Racking Systems & Integrated Multi-Level Racks | ISO 9001, FEM 10.2.02 | Strong forklift equipment integration with vertical racking |
| Stow Group | Belgium | Heavy-Duty Racking & Silo Structural Buildings | EN 15512, ISO 14001 | High-load rack-supported mezzanine platforms across Europe |
| Interlake Mecalux | USA | Teardrop Multi-Tier Racking & Industrial Platforms | RMI, ANSI MH16.1 | Dominant standard teardrop connection design for US market |
| Dexion (Constructa) | Norway / Europe | Multi-Tier Shelving & Commercial Mezzanines | FEM, ISO 9001 | Flexible modular picking platforms for e-commerce hubs |
| Daifuku Co., Ltd. | Japan | Automated Storage & Multi-Floor Material Handling | JIS, ISO 9001, CE | Advanced automated vertical transfer unit (VTU) integration |
| Kardex Group | Switzerland | Dynamic Vertical Lift Modules & Shelving Mezzanines | CE, ISO 9001 | High-precision vertical storage for small parts fulfillment |
| Tri-Boro Shelving & Racking | USA | Industrial Mezzanines & Steel Shelving Platforms | RMI Compliance | Heavy-gauge bolted structural steel components |
Market Intelligence
Future Trends in Multi-Tier Racking Procurement
Global logistics managers are shifting procurement paradigms toward automated, sustainable, and flexible modular rack structures.
1. AMR & AGV Robotic Integration
Next-generation multi-tier platforms are designed with dynamic floor load plates to accommodate Autonomous Mobile Robots (AMRs). Upper mezzanine walkways feature continuous high-flatness flooring (FF/FL compliance) and integrated conveyor drop locations to sync manual order picking with automated vertical lifts.
2. Low-Carbon Cold-Rolled Steel Fabrication
With environmental, social, and governance (ESG) mandates driving supply chains, multi-tier racking manufacturers are utilizing low-emission recycled steel coils (such as Q355B and S355JR grade). Solvent-free electrostatic powder coating finishes ensure zero VOC emissions during rack production.
3. Modular Boltless Expandability
Procurement teams demand scalable racking layouts. Modern multi-tier structures leverage high-precision cold-formed teardrop or omega upright profiles, allowing easy height adjustments, bay additions, or complete floor extensions without requiring hot work or structural welding on site.
Structural Engineering
Technical Architecture & Load Engineering Parameters
A multi-tier pallet racking mezzanine is an engineered structural system that must safely withstand dead loads, live loads, impact forces, and seismic stresses.
Steel Grade & Structural Integrity
Enterprise racking utilizes high-tensile structural steel (Q355B equivalent to S355JR / ASTM A572 Grade 50). Upright columns undergo multi-stage cold-roll forming to create rigid multi-bend profiles, yielding high moment of inertia and buckling resistance under continuous axial loads.
Floor Decking Options & Fire Safety
Multi-tier walkways require specialized floor panels tailored to operational fire codes:
• Steel Bar Grating: 50%+ open area for optimal water penetration from ceiling fire sprinklers.
• Perforated Steel Decks: Combines slip resistance with ventilation and fire suppression compliance.
• Chequer Steel Plate: Heavy-duty solid floor designed for hand trolley roll performance.
Seismic Anchoring & Deflection Limits
Engineered multi-tier frames strictly adhere to structural deflection limits (≤ L/200 for beams and ≤ H/500 for upright columns). Heavily reinforced baseplates, heavy expansion anchors, and back-to-back row spacers protect against seismic horizontal shear forces in active earthquake zones.
Manufacturer Capabilities
Why Direct Sourcing from Remprack Storage Solutions Delivers Value
Operating since 2006 out of Nanjing, China, Remprack Storage Solutions Co., Ltd. provides complete OEM/ODM industrial racking and mezzanine platforms globally.
Industrial Racking Manufacturing Infrastructure
Remprack operates a 40,000 m² state-of-the-art facility featuring 20+ continuous cold-roll forming lines, robotic welding stations, and an automated continuous electrostatic powder coating line. Our in-house engineering team designs fully custom warehouse layouts optimized for your exact pallet weight, floor dimensions, and material handling equipment.
- CE & ISO Certified: Audited under CE, ISO 9001, ISO 14001, and TUV safety standards.
- 10-Year Warranty: Industry-leading structural product warranty on all manufactured steel racks.
- Worldwide Export: Proven project delivery spanning over 85 countries across 5 continents.
- OEM & ODM Customization: Custom column gauges, beam lengths, colors, and branding.
Frequently Asked Questions
Multi-Tier Pallet Racking Procurement FAQ
Answers to critical structural engineering, code compliance, and ordering questions from enterprise buyers.
What technical data is required to request a multi-tier pallet racking engineering layout?
To generate an accurate CAD layout and load structural proposal, our engineering team requires:
1. Detailed warehouse architectural plan (CAD or PDF) showing clear ceiling heights, column grids, and floor slab thickness.
2. Pallet specifications: dimensions (W x D x H), tare weight, and maximum unit payload (kg/pallet).
3. Material handling equipment details: forklift model, turning radius, and maximum lift height.
4. Operational parameters: daily throughput, SKU count, picking methods, and local fire/seismic standards.
1. Detailed warehouse architectural plan (CAD or PDF) showing clear ceiling heights, column grids, and floor slab thickness.
2. Pallet specifications: dimensions (W x D x H), tare weight, and maximum unit payload (kg/pallet).
3. Material handling equipment details: forklift model, turning radius, and maximum lift height.
4. Operational parameters: daily throughput, SKU count, picking methods, and local fire/seismic standards.
How does a multi-tier racking system compare to a structural steel mezzanine platform?
A rack-supported multi-tier system uses standard pallet rack uprights and beams to support upper walkway floors, making it highly cost-effective when high-density shelf storage is needed both on the ground and upper levels. A structural steel platform (free-standing mezzanine) utilizes heavy H-beam columns and main beams to create wide open space underneath, ideal for manufacturing operations or forklift navigation below.
Which international quality and structural standards apply to exported multi-tier racks?
Reputable manufacturers engineering multi-tier systems build to global standards: European EN 15512 and FEM 10.2.02, American RMI (ANSI MH16.1) standards, and Australian AS 4084 standards. Facilities should maintain ISO 9001 quality management certification and CE compliance marks.
What are the standard load capacities for multi-tier walkway floors?
Multi-tier mezzanine walkway floors are typically engineered for uniform live loads ranging from 300 kg/m² to 1,000 kg/m², depending on whether picking operations utilize manual hand trolleys or heavy motorized pallet jacks. Storage beam levels below can be customized to support 1,000 kg to 4,000 kg per level.
How do multi-tier pallet rack designs accommodate warehouse fire sprinklers?
Fire code regulations (such as NFPA standards) typically require un-obstructed water flow through vertical storage levels. Multi-tier racking addresses this by utilizing high-permeability steel wire mesh decking or open steel bar grating (minimum 50% open area). In-rack sprinkler pipe networks can also be integrated directly into the beam profiles.
What is the production lead time and export shipping arrangement for custom racking?
Standard manufacturing lead times range from 15 to 25 days following engineering drawing approval. Component steel profiles are tightly bundled, labeled, and protected with plastic wrapping to prevent export transit damage. Custom container loading plans ensure maximum loading density for 20ft and 40ft high-cube shipping containers.
