Engineered Boltless Pallet Racking Systems
Explore our top-rated, structural-grade boltless pallet racking configurations engineered for rapid assembly, high static load distribution, and severe warehouse environments.
Custom Heavy-Duty Metal Storage Shelf Racking System

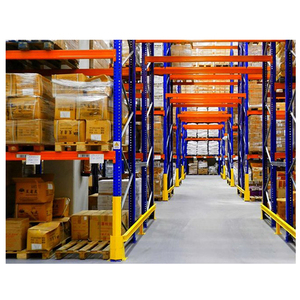

Heavy Duty Boltless Selective Pallet Storage Racking
Boltless 5-Tier Adjustable Q235 Steel Pallet Racking
Industrial Heavy Duty Beam Racking for Logistics Hubs
Industrial Boltless Metallic Pallet Shelving Frame
5-Tier Heavy Duty Boltless Storage Rack Unit
Anti-Rust Selective 4-Layer Boltless Steel Racking
Industrial Powder-Coated Boltless Rivet Racking
Why Global Procurement Leaders Prefer Boltless Pallet Racking
An engineering breakdown of mechanical joint integrity, installation efficiency, and structural safety parameters in modern logistics systems.
Seamless Mechanical Interlocking
Boltless pallet racking replaces traditional hardware fasteners with high-precision teardrop, butterfly, or rivet hook-in connectors. This eliminates bolt-loosening risks caused by continuous forklift dynamic vibrations.
- Zero bolt-retightening maintenance required
- Spring-loaded safety pins prevent beam dislodgement
- Faster height reconfigurability along 50mm/75mm pitches
High-Grade Q235B / Q355B Steel
Manufactured using continuous cold roll-forming from premium steel coils. Advanced profile geometry increases moment of inertia, allowing higher weight loads per vertical bay while reducing raw structural weight.
- Tested according to FEM 10.2.02 & ANSI MH16.1 standards
- Deflection limit controlled tightly within L/200
- CE, ISO 9001, ISO 14001, and TUV quality compliance
60%+ Reduction in Setup TCO
Time-motion studies across global warehouse commissioning projects reveal that boltless clip-in structures reduce site installation hours by up to 65% compared to conventional bolted frame racking systems.
- Rapid deployment for 3PL seasonal inventory expansion
- Lower specialized labor overhead during rack erection
- Simplified knock-down packing for containerized ocean freight
Technical Benchmark Matrix
Comparative analytical matrix evaluating structural parameters between heavy-duty boltless racking and legacy bolted storage assemblies.
| Evaluation Parameter | Boltless Pallet Racking System | Traditional Bolted Frame Racking | Impact on Warehouse ROI |
|---|---|---|---|
| Assembly Speed per Bay | 15 – 25 Minutes (Plug & Lock) | 60 – 90 Minutes (Torque Wrenches) | Up to 65% labor cost savings during setup |
| Vibration Resilience | Self-locking wedged connector under load | Bolts tend to loosen under impact/vibration | Eliminates mandatory annual torque auditing |
| Level Adjustability | Instant beam relocation (50mm / 75mm pitch) | Requires full unbolting & structural teardown | Seamless adaptation to changing SKU sizes |
| Surface Finish & Anti-Rust | Thermo-hardened epoxy powder coating (60-80μm) | Standard dip paint prone to flaking around bolts | Longer service life in humid or cold storage |
| Structural Safety Factor | 1.65 to 1.85 (ANSI/FEM structural standard) | 1.50 (Standard structural steel benchmark) | Higher resistance against unexpected overload |
Future Procurement & Sourcing Trends in Industrial Racking
Key technology shifts and market dynamics influencing international warehouse infrastructure investments over the next decade.
1. Integration with Automated Radio Shuttles & ASRS
Future boltless pallet racking is increasingly engineered with integrated precision guide rails for 2-way and 4-way automated radio shuttles. Global buyers are moving away from pure static storage toward semi-automated high-density systems that maximize vertical building height while minimizing forklift travel paths inside storage aisles.
2. Green Manufacturing & Low-Carbon Steel Sourcing
ESG compliance has transitioned from a corporate option to a strict requirement in European and North American procurement tenders. Top Chinese racking exporters like Remprack are adopting zero-VOC electrostatic powder coatings, closed-loop water treatment systems, and recycled high-strength steel coils to significantly reduce carbon footprints per pallet position.
3. Advanced Seismic Engineering & Finite Element Analysis (FEA)
With warehouse expansion surging in seismically active zones across Latin America, Southeast Asia, and California, procurement specs now mandate advanced 3D FEA structural simulation reports. Upright profile design has evolved to incorporate multi-ribbed cold-formed geometries that absorb seismic shear forces without structural collapse.
4. Modular OEM Customization & Digital Twin Layouts
Distributors and system integrators expect rapid CAD/BIM model integration. Sourcing trends prioritize manufacturers capable of providing exact digital twin models for warehouse management systems (WMS) alongside custom-branded beam colors, specialized upright hole patterns, and bespoke accessory fittings.
Frequently Asked Procurement & Technical Questions
Expert answers to common engineering, quality verification, and shipping questions when sourcing boltless racking from China.
What technical data is required to request a structural rack engineering proposal?
How does a boltless connection maintain structural safety under heavy loads?
Which international quality standards do Remprack racking systems comply with?
Can boltless pallet racking be customized for OEM/ODM distributor brand requirements?
What is the standard product warranty and expected operational lifespan?
How are racking shipments packed to optimize container loading and prevent transit damage?
Transform Your Warehouse Storage Efficiency Today
Need a customized boltless racking proposal? Submit your site layout or storage requirements to Remprack’s engineering specialists for a complimentary structural layout drawing and direct factory pricing within 24 hours.
