Featured Industrial Storage Systems
Engineered for High Density, Heavy Payload Capacity, and Automated Logistics

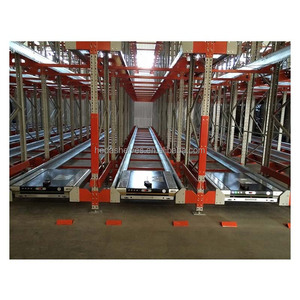

Pallet Shuttle Racking System High Capacity Radio Shuttle Rack

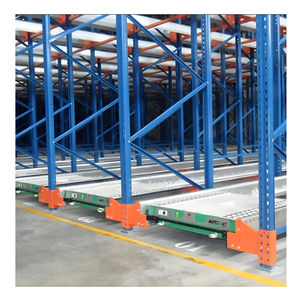

DJ Adjustable High-Speed Storage Racks Auto Shuttle System

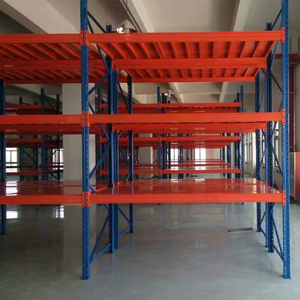

Sliding Guide Sequential Outbound Steel Rack 4000kg Load Seismic

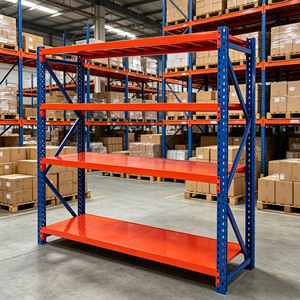

Heavy Duty Selective Pallet Racking System Corrosion Resistant

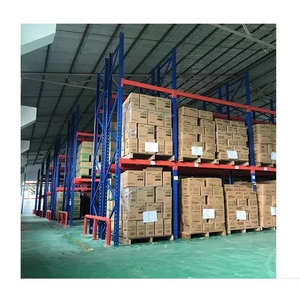

Heavy Duty Industrial Metal Shelving Certificated Pallet Storage
High-Strength Warehouse Rack AU Standard AS4084 Certified
CE Certified Four-Way Radio Shuttle Rack System for Cold Storage

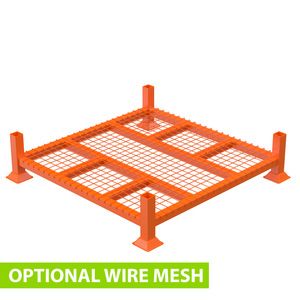

CASE CARTER OEM Steel Heavy Duty Stackable 4-High Post Rack
Engineering Next-Generation Warehousing: OEM/ODM Smart Pallet Racking Frameworks
An in-depth analysis of structural integrity, semi-automated automation integration, cold-chain optimization, and international compliance standards (AS4084, FEM 10.2.02, ANSI MH16.1) for modern enterprise procurement directors.
1. Executive Procurement Analysis: The Evolution of Industrial Pallet Storage
In the current era of global supply chain volatility, industrial warehousing infrastructure is undergoing a radical paradigm shift. Traditional static storage systems—characterized by wide aisles, low structural density, and manual forklift dependencies—are rapidly giving way to dynamic, intelligent, and highly dense structural racking frameworks. For global procurement officers, third-party logistics (3PL) integrators, and industrial real estate developers, selecting the ideal OEM/ODM Smart Warehouse Pallet Racking Factory is no longer merely a steel purchasing decision; it is a long-term strategic capital investment.
Modern automated storage and retrieval systems (ASRS), radio pallet shuttles, motorized mobile racks, and high-bay selective pallet systems demand strict structural tolerances, superior metallurgy, and rigorous quality assurance. High-density storage systems must withstand static vertical load forces, dynamic mechanical impacts during automated shuttle transit, and localized seismic activity while maintaining sub-millimeter deflection accuracy.
Technical Insight: Cold-rolled high-tensile steel structural profiles (such as Q235B and Q355B grades) engineered with multi-omega upright sections provide up to 35% higher load-to-weight efficiency compared to standard structural steel channels, drastically reducing logistics freight costs while elevating ultimate buckling load thresholds.
2. Manufacturing Infrastructure & OEM/ODM Customization Capabilities
As a leading China-based heavy-duty warehouse racking manufacturer established in 2006, our 40,000 m² state-of-the-art production base integrates continuous automated roll-forming production lines, robotic laser welding cells, structural steel punching stations, and dual-line electrostatic powder-coating systems. We empower global brand owners, system integrators, and distributors through flexible OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) programs tailored to regional market mandates.
Custom Metallurgy & Profiles
Engineered upright pitch sizes (including 50mm, 75mm, 76.2mm / 3-inch teardrop), variable beam section heights (80mm to 160mm box/step beams), and custom gauges tailored to specific loading dynamics.
International Compliance
Fully compliant with global structural design norms including Australian AS4084-2012, European FEM 10.2.02 / EN 15512, RMI (USA), and ISO 9001, ISO 14001, CE, and TUV safety certifications.
Global Export Logistics
Exported across 85+ countries with specialized export bundle packaging, surface corrosion protection (hot-dip galvanizing or epoxy powder coating), and containerization optimization.
3. Comprehensive Racking Systems Technical Evaluation Matrix
Choosing the correct structural racking configuration depends on several core variables: floor area availability, clear vertical height under roof trusses, SKU diversity, pallet throughput velocity, batch rotation rules (FIFO vs. LIFO), and capital expenditure ROI expectations. The following matrix illustrates the structural and operational parameters of our main OEM/ODM product range.
| Racking Architecture | Storage Density | Pallet Selectivity | Stock Rotation | Forklift / Automation Interface | Primary Industry Fit |
|---|---|---|---|---|---|
| Selective Pallet Racking | Standard | 100% Direct Access | FIFO / LIFO | Standard Counterbalance / Reach Truck | 3PL, FMCG, General Logistics |
| Radio Shuttle Racking | Ultra-High | Lane Level (Deep Lane) | FIFO or LIFO | Semi-Automated Wireless Radio Shuttle | Cold Storage, Food & Beverage, Bulk Goods |
| 4-Way Automated Shuttle | Maximum | WMS Automated Control | FIFO / LIFO Dynamic | Fully Automated 4-Way Robot + Vertical Lift | Smart Warehousing, Pharmaceutical, E-Commerce |
| Drive-In Racking | High Density | Low (Batch level) | Strict LIFO | Forklift enters physical rack structure | Seasonal Cold Storage, Raw Materials |
| Push Back Racking | Medium-High | 2 to 6 Pallets Deep | LIFO | Nested Gravity Cart / Standard Forklift | Chemicals, Hardware, Medium Batch Buffer |
| Heavy Duty Cantilever | Variable | 100% Side Access | Direct Access | Side Loader / Specialized Forklift | Pipes, Steel Coils, Lumber, Long Profiles |
4. Future Procurement Trends in Smart Warehouse Pallet Racking (2025–2030)
The global warehousing market is shifting towards hyper-dense automation, carbon neutrality, and dynamic operational flexibility. Procurement leaders looking to future-proof their supply chain facilities must account for the following macro technological trends when commissioning racking infrastructure:
1. Modular ASRS Integration
Future-proof static racking layouts are now designed with pre-punched structural adapter plates to allow seamless retrofit upgrade transitions into Automated Storage and Retrieval Systems (ASRS) or AGV/AMR robot guided lanes without replacing structural uprights.
2. Energy-Optimized Cold Storage
With cold-chain energy expenses rising globally, high-density Radio Shuttle and Motorized Mobile Racking systems are reducing cubic footprint energy waste by up to 45%, storing more pallets per cubic meter inside refrigerated zones.
3. Dynamic Seismic Resilience
Advanced structural modeling now incorporates real-time seismic simulation finite element analysis (FEA). Modern racks feature specialized baseplates, heavier anchor bolts, and cross-bracing layouts designed to absorb multi-axis earthquake loads.
5. Technological Innovations & Smart Racking Breakthroughs
Our engineering research team actively collaborates with global automated integrators to push the technological boundaries of smart storage rack structures:
- Structural Health Monitoring (SHM) IoT Sensors: Optional embedded strain gauges and tilt sensors attached to load-bearing beams provide real-time alerts on overload stress or accidental forklift impact collisions.
- Ultra-Precise Cold-Rolled Rail Profiles: High-precision shuttle rails rolled with tolerances down to ±0.5mm ensure high-speed radio shuttle travel speeds up to 1.5 m/s without mechanical vibration or wheel misalignment.
- Advanced Anti-Corrosion Surface Finishing: Multi-stage automatic pretreatment cleaning combined with hot-dip galvanizing options guarantees up to 20+ years of rust prevention in sub-zero freezers down to -30°C or high-humidity environments.
6. Global Procurement & Engineering FAQ
Answers to common structural, logistics, and OEM manufacturing queries raised by international buyers and engineering contractors.
What critical raw building metrics are needed to design a custom warehouse racking layout?
To produce an optimized structural layout CAD drawing, our engineering team requires: (1) Warehouse floor layout drawing with building column grids and obstacle locations; (2) Clear underside height under roof joists or fire sprinkler systems; (3) Pallet specifications (Length x Width x Height including payload); (4) Maximum gross weight per pallet; (5) Forklift model, turning radius, and maximum lift height; and (6) Local seismic region specifications.
What structural design standards do your OEM/ODM racking systems conform to?
Our racking components are designed, engineered, and manufactured in full alignment with international structural steel standards: Australian Standard AS4084-2012, European FEM 10.2.02 / EN 15512, and RMI (Rack Manufacturers Institute, USA). Factory quality systems are ISO 9001 and ISO 14001 certified, with product testing verified by TUV and CE documentation available upon request.
Can you manufacture teardrop racking compatible with existing North American systems?
Yes. We offer fully compatible 2-inch center boltless teardrop upright profiles and step beams that seamlessly integrate with existing standard North American teardrop pallet racking systems. We also supply custom colors, branded labels, and proprietary beam connectors for OEM distributor lines.
What structural warranty and expected service life do your industrial racks carry?
We provide a 10-year structural warranty on all prime steel pallet racking systems when installed and operated according to our engineered load capacity charts and user guidelines. When properly maintained in dry indoor ambient conditions, the operational service life routinely exceeds 25 years.
How do radio shuttle racking systems compare to traditional drive-in racking for cold storage?
While drive-in racking offers dense storage, it requires forklifts to physically enter long rack tunnels, increasing risk of structural damage and driving slower operation speeds. Radio Shuttle systems keep forklifts outside the rack face. Remote-controlled shuttles move pallets inside lanes at higher speeds, dramatically reducing forklift damage risk, improving operator safety, and boosting total throughput volume by up to 50%.
Request Your Custom Warehouse Layout & OEM Quote Today
Partner directly with China's leading warehouse racking factory. Our certified structural engineers will deliver a comprehensive 2D/3D CAD design layout, load calculation sheet, and factory-direct price quotation within 24 hours.
Inquire Now
