Flagship Industrial Pallet Racking & Automated Storage Systems
Precision roll-formed profiles designed for high load capacities, maximum vertical spatial utilization, and seamless warehouse automation integration.
Engineering Excellence: Cold Roll-Forming Metallurgy & Load Dynamics
Custom OEM roll-formed pallet racking forms the structural backbone of modern global logistics and automated industrial distribution hubs. Unlike standard hot-rolled steel channels, high-precision cold roll-formed upright profiles provide exceptional strength-to-weight ratios, enhanced torsional rigidity, and tailored hole-pattern geometry. As an established OEM factory based in Nanjing, China, our manufacturing line leverages continuous multi-station cold rolling mills to shape premium certified Q235B and high-yield Q355B structural steel coils into robust upright frames and box beams engineered to withstand extreme static and dynamic warehouse loads.
Information Gain Engineering Note: Cold roll-formed profiles undergo strain hardening during the multi-pass forming process, elevating yield strength along profile corners by up to 15-20%. This structural phenomenon allows optimized section thickness while meeting strict FEM 10.2.02 and RMI structural safety design standards.
Section Optimization: Upright Posts and Beam Connectors
Our OEM manufacturing lines produce an extensive array of open-section upright columns (80mm, 90mm, 100mm, 120mm, and 140mm face widths) engineered with complex stiffener ribs along the web and flanges. These multi-flanged profiles significantly delay localized micro-buckling under heavy vertical axial compression.
- Teardrop vs. Euro-Style Hook Connection: We produce both standard American teardrop pattern (2-inch pitch adjustment) and European 50mm/75mm slot pitch uprights, equipped with high-durability 3 to 5-claw forged connector brackets with safety lock pins.
- Interlocking Step & Box Beams: Dual-C profile interlocking box beams are continuously seam-welded via automated robotic MIG systems, mitigating rotational displacement under asymmetric pallet placement.
- Seismic Resistance & Floor Anchorage: Base plates are custom-stamped to match local seismic acceleration parameters (PGA up to 0.4g), backed by finite element analysis (FEA) testing for lateral sway reduction.
Technical Specification & Application Comparison Matrix
| Racking System Architecture | Storage Density | Pallet Access (Selectivity) | Structural Load Rating | Optimal Industry Application |
|---|---|---|---|---|
| Selective Pallet Racking | Standard (35-40% Area) | 100% Immediate FIFO | Up to 4,500 kg / beam level | 3PL Logistics, General Retail, FMCG Hubs |
| Very Narrow Aisle (VNA) | High (55-65% Area) | 100% Immediate FIFO | Up to 4,000 kg / level (15m height) | High-Bay E-Commerce, Pharmaceutical Warehouses |

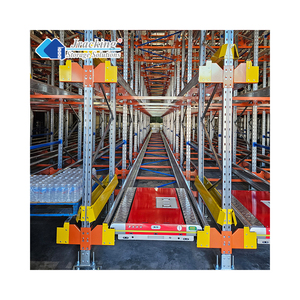

| Radio Shuttle System | Ultra-High (75-85% Area) | Lane-Based FIFO / LIFO | 1,500 kg per automated shuttle unit | Cold Storage (-25°C), Food & Beverage Distribution |
| 4-Way Automated Shuttle ASRS | Maximum (85%+ Area) | WMS Fully Automated Control | 1,200 kg / pallet slot | 24/7 Dark Warehouses, High-Density Manufacturing |
| Heavy Duty Cantilever Racking | Specialized Long Goods | 100% Direct Column Access | Up to 1,500 kg per cantilever arm | Steel Pipes, Lumber, Aluminum Extrusions, Coils |
Why Global B2B Distributors & System Integrators Partner With Us
Operating a 40,000 m² advanced manufacturing facility in Nanjing, China, Remprack Storage Solutions Co., Ltd. combines technical R&D with stringent structural testing protocols.
Fully Automated OEM Production Lines
Equipped with 24 continuous cold roll-forming production lines, robotic laser cutting stations, and dual 120-meter automated electrostatic powder coating tunnels capable of producing over 5,000 tons per month.
Strict Compliance & Structural Certification
All designs strictly comply with European FEM 10.2.02, RMI (USA), and AS4084-2012 standards. Backed by CE certification, ISO 9001, ISO 14001, and independent TUV load testing reports.
Global Engineering Support & 10-Year Warranty
From preliminary 3D CAD layout development and ANSYS finite element stress simulation to overseas installation supervision and a comprehensive 10-year warranty, we empower project contractors globally.
Future Procurement Trends in Industrial Storage (2025–2030)
As supply chains face increasing pressures regarding floor space costs, urban land constraints, and labor market shifts, purchasing decision-makers must evaluate racking infrastructure through long-term scalability and technology integration. Key procurement trends shaping the industrial storage equipment domain include:
1. Migration Toward Hybrid Automated High-Bay Storage (ASRS)
Traditional static pallet racking is rapidly giving way to hybrid automated systems. B2B buyers are prioritising racking structures pre-engineered with precision tolerances (+/- 1.5mm) required for 4-way radio shuttle vehicles and automated crane guide rails. Structural stiffness must accommodate dynamic acceleration forces from robotic shuttles operating 24/7.
2. Cold-Chain Energy Efficiency & Mobile Dense Storage
With operational electricity costs soaring in cold storage logistics, maximizing storage density per cubic meter of refrigerated space is critical. Motorized mobile pallet racking and multi-deep shuttle systems are seeing a 35% surge in international procurement, reducing refrigerated warehouse footprint requirements by up to 45%.
3. Carbon Neutrality & Environmental Powder Coatings
Global enterprise buyers increasingly demand environmental product declarations (EPD). Modern OEM manufacturers must utilize non-toxic, TGIC-free epoxy-polyester powder coatings applied through closed-loop automated recovery systems, alongside certified low-carbon recycled steel raw materials (Q235B/Q355B).
4. Modular OEM Customization and Teardrop Standard Compatibility
Distributors in North America and Western Europe require seamless interchangeability with existing installed storage bases. OEM producers capable of manufacturing universal hole patterns, custom box beam step heights, and specialized rack accessories (mesh decking, pallet support bars, column protectors) offer distinct competitive advantages.
Procurement & Technical Engineering FAQ
Addressing core structural, logistical, and commercial inquiries from warehouse managers, procurement agents, and structural engineering consultants.
