Engineering Excellence in OEM Radio Shuttle Racking Systems
Understanding structural integrity, operational dynamics, and high-density warehouse optimization for modern supply chains.
Transforming Cubic Volume into High-Throughput Efficiency

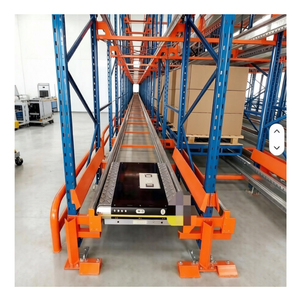

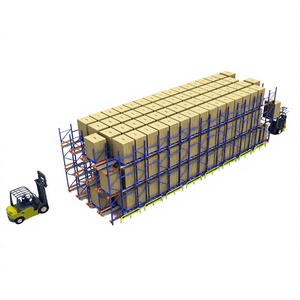

In modern intralogistics, land costs and cold-chain energy costs make vertical optimization essential. Radio Shuttle Racking Systems (Pallet Runner Systems) represent the pinnacle of semi-automated high-density storage technology. Unlike traditional Drive-In racking, which exposes uprights to frequent forklift impacts and enforces strict LIFO (Last-In, First-Out) operations, OEM Radio Shuttle racking separates the material handling vehicle from the storage channel.
At Remprack Storage Solutions Co., Ltd. (operating from our 40,000 m² state-of-the-art facility in Nanjing, China since 2006), we engineer custom OEM radio shuttle structures tailored to exact pallet dynamics, cold room environments (down to -30°C), and automated WCS/WMS interface requirements.
Request Engineering CAD ProposalKey Structural Component Specifications
- 🔹 Upright Columns: High-yield Q235B / Q355B cold-rolled steel profiles (80-140mm width, 1.8-3.0mm thickness).
- 🔹 Shuttle Guide Rails: Precision-formed 3.0mm galvanized steel rails with integrated position sensors and stopper plates.
- 🔹 Beam Connections: 3/4-claw heavy-duty connectors with mechanical safety locks to prevent accidental dislodgement.
- 🔹 Load Capacities: Custom engineered from 500 kg to 2,000 kg per pallet level.
- 🔹 Surface Finish: Thermosetting epoxy powder coating (60-80 microns thickness) or Hot-Dip Galvanized for outdoor/cold storage.
Technical Comparison: 2-Way vs. 4-Way Radio Shuttle Systems
Select the right shuttle automation tier based on SKU diversity, throughput requirements, and capital expenditure targets.
| Technical Criterion | 2-Way Radio Shuttle System | 4-Way Multi-Directional Shuttle | Traditional Drive-In Racking |
|---|---|---|---|
| Directional Motion | Longitudinal (Forward / Backward) | Matrix (X-Axis & Y-Axis Traversing) | Forklift Manual Driving inside Lane |
| Pallet Access Logic | LIFO or FIFO (Lane Dependent) | Fully Flexible FIFO / LIFO (WMS Integrated) | Strict LIFO Only |
| Vertical Level Transfer | Requires Forklift to move shuttle between levels | Integrated Vertical Reciprocating Lifts (VRC) | Manual Forklift Placement |
| Volumetric Efficiency | Up to 80% Floor Area Utilization | Up to 90% Floor Area Utilization | Up to 65% Floor Area Utilization |
| Forklift Risk & Damage | Ultra-Low (Forklifts work outside aisles) | Zero (Fully Automated AS/RS Integration) | High (Frequent collisions with uprights) |
| Cold Storage Performance | Excellent (-25°C Lithium-Ion Battery) | Superior (-30°C Low-Temp Power Modules) | Poor (High aisle lighting & thermal loss) |
Future Procurement Trends for Warehouse Shuttle Racking
How global enterprise logistics buyers, 3PL managers, and cold-chain operators are reshaping their OEM procurement strategies.
1. Modular OEM Customization over Off-the-Shelf Kits
Global buyers are moving away from standardized racking kits toward customized OEM profiles that match exact pallet dimensions (Euro, GMA, AU Standard) and building column grids. OEM flexibility allows seamless adaptation to non-standard beam heights, automated charging docks, and specialized rail profiles.
2. Hybrid Battery & Supercapacitor Power Systems
Energy efficiency and non-stop operational cycles are paramount. Modern shuttle procurement mandates fast-charging Lithium Iron Phosphate (LiFePO4) battery packs or supercapacitors that achieve full charge within 30–45 minutes, delivering 8–10 hours of uninterrupted continuous operation in ambient or frozen facilities.
3. Strict Compliance with Multi-Regional Structural Standards
Procurement officers now enforce multi-jurisdictional structural compliance. OEM manufacturers must prove compliance not only with domestic standards, but also with Australian Standard AS4084-2023, European FEM 10.2.02 / EN 15512, American RMI standards, and seismic design parameters.
Future Development Trends in Shuttle Automation
The convergence of AI, IoT sensor networks, and mechanical precision in next-generation warehouse storage systems.
AI-Driven Fleet Scheduling & Dynamic Lane Allocation
Next-generation radio shuttle systems are no longer isolated mechanical tools; they operate as interconnected robotic fleets. Through 5G/Wi-Fi 6 mesh networks, shuttles dynamically communicate with Warehouse Control Systems (WCS). Algorithms auto-adjust shuttle distribution based on pick frequency, preventing aisle bottlenecks and reducing overall energy consumption by up to 30%.
IoT Predictive Maintenance & Optical Sensor Integration
Advanced radio shuttle vehicles are equipped with laser distance meters, photoelectric sensors, and 3D vision cameras. They continuously monitor rail alignment, detect damaged or sagging pallets in real-time, and relay vibration/thermal telemetry to cloud dashboards, shifting maintenance from reactive repairs to predictive schedules.
Why Partner with Remprack Storage Solutions?
With over two decades of dedicated manufacturing experience in Nanjing, China, Remprack Storage Solutions Co., Ltd. stands as a trusted OEM & ODM manufacturer for global logistics integrators, distributors, and end-users.
Dedicated focus on industrial steel racking, automated shuttle systems, mezzanines, and cantilever solutions.
State-of-the-art continuous roll-forming lines, robotic welding stations, and automatic powder-coating lines.
Fully certified to CE, ISO 9001, ISO 14001, and TUV standards, ensuring seamless import clearance worldwide.
Successfully delivered 2,000+ warehouse projects across North America, Europe, Southeast Asia, Middle East, and Australia.
Engineered with premium Q235B/Q355B structural steel, backed by rigorous quality testing and long-term warranties.
A professional team of 300+ employees and dedicated structural engineers providing free 2D/3D CAD layouts.
Frequently Asked Questions (FAQ)
Get answers to critical engineering, manufacturing, logistics, and pricing queries regarding radio shuttle racking procurement.
What detailed technical parameters are required to generate an accurate layout and price quotation?
- Warehouse Architectural Drawing: Floor plan (CAD/PDF) indicating overall dimensions, clear ceiling height under beams/sprinklers, column locations, and door access points.
- Pallet Load Profiles: Exact pallet dimensions (Width x Depth x Height including cargo overhang) and maximum total weight per pallet unit (e.g., 1000 kg/pallet).
- Operating Temperature: Ambient (+15°C to +25°C), Air-conditioned, or Cold Storage (-18°C to -30°C).
- Throughput & SKU Dynamics: Total number of SKUs, daily pallet turnover rate, and preferred handling logic (FIFO vs. LIFO).
- Forklift Specifications: Available reach truck or counterbalanced forklift model, maximum lifting height, and mast collapsed height.
How does a Radio Shuttle system compare to Drive-In Racks regarding ROI and Total Cost of Ownership (TCO)?
- 50%+ Reduction in Forklift Labor Costs: Forklifts only drop pallets at the entry face of the rack lane; shuttles perform internal transfers.
- 90%+ Decrease in Rack Damage: Since forklifts do not enter the lanes, structural upright damage is almost completely eliminated, dramatically lowering annual maintenance costs.
- 30% Higher Storage Density: Radio shuttle lanes can extend 20 to 40 pallets deep without structural instability, whereas Drive-In lanes are practical only up to 8-10 pallets deep.
Can Remprack Radio Shuttle Racking perform reliably in deep-freeze cold storage environments?
- Custom low-temperature Lithium Iron Phosphate (LiFePO4) battery packs with internal thermal management.
- IP65-rated moisture-resistant electrical circuitry and anti-condensation heating elements for optical sensors.
- Specialized synthetic lubricants that maintain viscosity in sub-zero conditions.
- Hot-Dip Galvanized or high-grade powder-coated steel components to resist moisture corrosion.
What OEM & ODM customization options does Remprack offer for international distributors?
- Custom Branding: Customized RAL color matching for uprights and beams, laser-cut company logos on shuttle chassis and beam connectors.
- Profile Adaptations: Tailored beam step profiles, specialized upright pitch options (e.g., 50mm, 75mm, 76.2mm pitch), and custom rail sections.
- Packaging & Documentation: OEM neutral packaging, custom instruction manuals, and project-specific load tags bearing distributor credentials.
