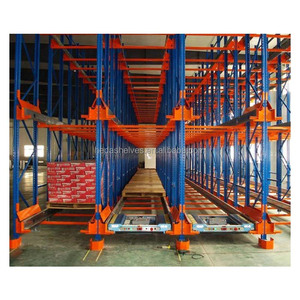

Auto Shuttle Racking System Innovative Pallet Racking Intensive Shuttle Racks Intelligent Cold Storage Shuttle Rack Automatic
Shuttle Rack System / Pallet Runner High Density Industrial Warehouse Storage Pallet Rack Shuttle Racking

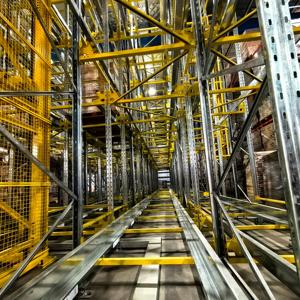

Jracking High-Load Warehouse Storage Rack CE Certified Four-Way Radio Shuttle Rack System for Cold Storage Warehouse Use
High-Density Automatic Four Way Shuttle Rack Radio Shuttle Rack System With Shuttle System

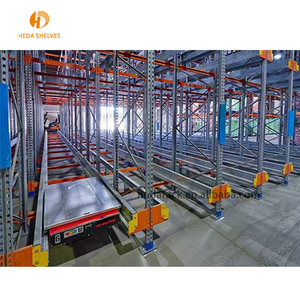

OEM High-Tech Radio Shuttle Pallet Rack Industrial Steel Automatic Warehouse Racking System For Storage
Goods Shelves for Four Way Shuttle Automated Warehouse

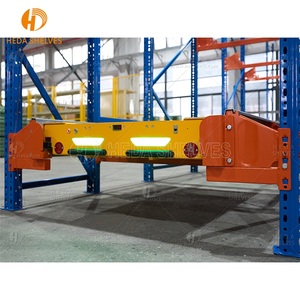

Automatic Warehouse System Factory Direct Sale High Intelligent Automated Pallet Runner Four Way Radio Shuttle Rack

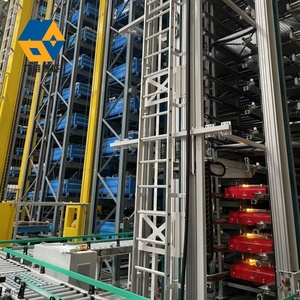

NOVA ASRS 4way High Speed Automated Warehouse Storage Multi-level Radio Pallet Shuttle Rack for Warehouse
White Paper: Engineering Architecture of Custom OEM Multi-Way Shuttle Racking Systems
Modern global supply chains demand maximum volumetric space utilization, hyper-efficient pallet throughput, and flawless operational safety. As an industry-leading OEM and ODM manufacturer of industrial storage equipment since 2006, Remprack Storage Solutions Co., Ltd. presents this definitive technical white paper on multi-way shuttle racking technologies. From traditional 2-way radio shuttles to multi-level 4-way automated intelligent robot vehicles, this guide breaks down structural engineering, kinematic design, cold storage resilience, and global procurement criteria for enterprise system integrators and logistics directors.
Information Gain Insight: Transitioning from conventional selective or drive-in pallet racking to a 4-Way Multi-Shuttle Automated Storage and Retrieval System (ASRS) increases storage density by up to 80% while reducing operational energy consumption by 35% compared to stacker crane ASRS systems.
1. Kinetic Engineering & Mechanical Principles
A Multi-Way Shuttle Racking System relies on self-powered robot carts moving along custom-profiled steel guide rails within deep-lane storage structures. Unlike drive-in racks that require forklifts to enter the rack matrix—creating high structural collision hazards—the shuttle system confines forklift activity to the front or rear transfer faces.
Our OEM multi-way shuttle technology utilizes dual-directional (2-Way) or multi-directional (4-Way) movement modes:
- 2-Way Radio Shuttle Systems: The vehicle traverses back and forth along longitudinal rails (X-axis) to store and retrieve pallets within a specific lane. Vertical level switching is performed externally by forklift trucks.
- 4-Way Multi-Shuttle Systems: The robot vehicle is equipped with integrated hydraulic or electro-mechanical lifting mechanisms and two sets of wheel assemblies. It can autonomously switch driving axes—moving longitudinally (X-axis) along storage channels and laterally (Y-axis) along main transfer aisles—without requiring human forklift intervention. Vertical transfer across multi-level storage bays is seamlessly handled by integrated vertical reciprocating conveyors (lifts).
High-Grade Steel Structure
Manufactured using cold-rolled high-tensile steel (Q235B and Q355B grades). Beam connection safety pins and continuous automated welding ensure maximum torsional rigidity under heavy structural dynamics.
Intelligent Fleet Control
Communicates over 5G/Wi-Fi mesh networks with Warehouse Control Systems (WCS) and Warehouse Management Systems (WMS). Real-time obstacle avoidance, laser distance monitoring, and optical barcode positioning.
Deep-Lane Density Optimization
Supports both First-In, First-Out (FIFO) and Last-In, First-Out (LIFO) inventory operational management strategies. Compatible with pallet footprints ranging from 800mm to 1400mm with loads up to 1,500 kg per position.
Technical Evaluation Matrix: 2-Way vs. 4-Way vs. Stacker Crane ASRS
Choosing the optimal automated warehouse racking configuration requires balancing operational throughput, floor space footprint, initial CAPEX, and long-term OPEX flexibility. The comparison table below highlights key performance engineering parameters across high-density storage modalities.
| Storage Technology Criteria | 2-Way Radio Shuttle | 4-Way Multi-Shuttle System | Stacker Crane ASRS | Drive-In Pallet Racking |
|---|---|---|---|---|
| Volumetric Utilization | High (75% - 85%) | Ultra-High (85% - 92%) | High (70% - 80%) | Moderate (60% - 70%) |
| Pallet Access Flexibility | Semi-Automated (FIFO/LIFO) | Fully Automated (Dynamic FIFO) | Fully Automated (Direct Access) | Manual (Strict LIFO) |
| Maximum Travel Speed | 1.0 - 1.2 m/s | 1.5 - 2.0 m/s | 2.5 - 4.0 m/s | Forklift Dependent (Slow) |
| Cold Storage Readiness | -25°C to -30°C certified | -25°C to -30°C certified | -25°C certified (High energy) | Manual risk under ice |
| Max Load Capacity / Pallet | up to 1,500 kg | up to 1,500 kg | up to 3,000 kg | up to 1,000 kg |
| Redundancy & Maintenance | High (Shuttles swappable) | Maximum (Independent fleet) | Low (Single crane failure halts bay) | Manual repairs required |
| CAPEX Investment Scale | Moderate | Medium - High | Very High | Low |
*Data compiled from Remprack OEM Structural Engineering Test Benchmarks (ISO 9001:2015 / FEM 10.2.14 guidelines).
Enterprise Procurement Trends & Technological Evolution (2025–2030)
As warehouse real estate costs grow globally and labor availability fluctuates, logistics procurement managers are shifting away from traditional static racking. Industrial market data indicates three key macroeconomic trends shaping the future of multi-way shuttle systems:
1. Surge in Cold Chain Automated Logistics
The rapid expansion of global cold chain logistics (pharmaceuticals, frozen meat, fresh produce, and dairy) has escalated operational running costs. Cooling an empty 15-meter tall warehouse volume costs almost as much as cooling a full one. 4-Way multi-shuttle systems maximize pallet storage capacity within a compact insulated envelope, driving operational thermal efficiency. Lithium-Iron-Phosphate (LiFePO4) battery technology now supports continuous sub-zero operation for up to 8–10 hours on a rapid 30-minute charge cycle.
2. Dynamic Fleet Scalability & Modular Infrastructure
Unlike rigid traditional ASRS stacker cranes—which fix vertical and horizontal throughput to a single crane track—multi-way shuttle networks allow enterprise users to start with a minimal shuttle fleet and add robot units as throughput demands increase. This modular scalability significantly lowers initial capital expenditure (CAPEX) barriers for growing 3PL logistics hubs.
3. AI-Driven Fleet Dispatching & WCS Synchronization
Modern 4-way shuttles operate as distributed multi-agent robotic systems. Powered by cloud WMS dynamic routing algorithms, the shuttles dynamically reallocate storage positions, auto-detect lane bottlenecks, balance load weights across building floors, and autonomously self-diagnose mechanical wear before hardware faults occur.
Original Manufacturer Capabilities & Custom OEM Engineering
As a direct Chinese racking manufacturer with more than 20 years of continuous operational growth, Remprack Storage Solutions Co., Ltd. offers complete OEM and ODM design, fabrication, and export services for distributors, structural integrators, and end-user enterprise clients worldwide.
Why Leading Global Brands Partner with Remprack
Located in Nanjing, China, our state-of-the-art 40,000 m² manufacturing plant houses high-precision continuous roll-forming lines, automated robotic welding cells, and eco-friendly epoxy powder coating systems. We transform prime-grade cold-rolled steel coils into structural rack components built to exact project specifications.
- Complete Quality Management: Certified under CE, ISO 9001 (Quality Standard), ISO 14001 (Environmental Standard), and TUV Rheinland testing protocols.
- Global Project Footprint: Over 2,000 successful industrial racking projects delivered across 85+ countries in Europe, the Americas, Australia, Asia, and Africa.
- 10-Year Product Warranty: All structural frames, beams, and rail profiles carry a 10-year factory warranty when operated in accordance with structural load signs.
- Custom Structural Tailoring: OEM customizations include specific upright profile punches, custom paint color matching (RAL palette), branded beam labeling, beam step dimensions, and seismic acceleration reinforcement profiles.
Frequently Asked Questions (FAQ) for B2B Procurement Engineers
Find technical answers to critical engineering, structural planning, and manufacturing questions when sourcing OEM custom multi-way shuttle systems.
- Warehouse floor plan layout (Architectural CAD or PDF) including clear height below roof trusses, fire sprinklers, and lighting fixtures.
- Pallet specifications: Outer length x width x height (including goods overflow) and maximum load weight per pallet (kg).
- Inventory characteristics: Total pallet positions required, number of SKUs, and daily inbound/outbound pallet throughput targets.
- Environmental factors: Room operating temperature range (ambient warehouse vs. -30°C cold room) and local seismic design acceleration standards.
