Intelligent Shuttle & High-Density Storage Systems
Precision-manufactured radio shuttles, 4-way automated vehicles, structural rack systems, and heavy-duty industrial storage solutions certified to CE, ISO 9001, ISO 14001, and TUV standards.
1. Executive Technical Summary: The Evolution of High-Density ASRS Infrastructure
In contemporary global supply chain operations, optimizing volumetric storage efficiency while minimizing operational expenditure (OPEX) has transitioned from a competitive advantage to an operational prerequisite. Modern intra-logistics architectures demand intelligent automation capable of breaking the throughput bottlenecks inherent in legacy storage methodologies. The Custom OEM Four-Way Shuttle Racking System represents the apex of multi-directional Automated Storage and Retrieval Systems (ASRS), fundamentally changing how enterprise distribution centers manage high-density pallet storage.
Unlike conventional two-way radio shuttle systems—which remain restricted to linear movement within fixed channels and require manual forklift intervention to shift aisles—the 4-way automated pallet shuttle system incorporates omnidirectional movement logic. Operating on specialized high-precision cross-rail matrices, these autonomous vehicles switch seamlessly between longitudinal travel rails and lateral transfer tracks. Integrated with vertical reciprocating conveyors (VRCs / elevators) and managed under advanced Warehouse Control Systems (WCS), a four-way shuttle grid converts raw cubic warehouse space into a fully automated, dynamic three-dimensional matrix.
Transitioning from traditional selective pallet racking to a engineered 4-Way Radio Shuttle ASRS matrix yields up to an 80% increase in storage capacity within the same physical building footprint, while reducing forklift fleet operational requirements by up to 60%.
2. Structural & Kinematic Architecture of 4-Directional Shuttle Systems
To execute dynamic direction changes under payload capacities reaching up to 1,500 kg per pallet position, the structural integrity of both the steel rack framework and the shuttle car mechanics must comply with exacting engineering tolerances. As a leading OEM factory in China, Remprack manufactures high-tensile steel rack profiles designed specifically for low deflection (L/200 structural parameters) under rapid dynamic dynamic loads.
Dynamic Wheel Reversal
Equipped with dual-set mechanical lifting and wheel switching assemblies. The shuttle utilizes electro-hydraulic or servo-motoric eccentric lift mechanisms to pivot wheels by 90 degrees in under 2.5 seconds, enabling instantaneous directional changes.
Lithium & Supercapacitor Packs
Powered by long-life Lithium Iron Phosphate (LiFePO4) battery modules featuring online fast-charging contacts. Energy recuperation systems capture kinetic braking power, extending continuous operating cycles to 8–10 hours per charge.
LiDAR & Optical Guidance
Embedded with 3D Time-of-Flight (ToF) laser rangefinder sensors, photo-electric position coders, and anti-collision optical scanners ensuring position location precision down to ±2 mm across high-bay layouts.
Technical Matrix Comparison: High-Density Warehouse Systems
Evaluating automated warehousing options requires understanding how 4-Way Shuttles stack up against traditional storage setups:
| System Type | Volumetric Density | Direct Selectivity | Forklift Operating Requirements | Cold Room Adaptation (-30°C) | System Scalability |
|---|---|---|---|---|---|
| 4-Way Automated Shuttle ASRS | Very High (85–90%) | 100% (WMS Controlled) | Low (Aisle-end transfer only) | Exceptional (Dedicated Low-Temp LiFePO4) | Modular (Add shuttles independently) |
| 2-Way Radio Shuttle Racking | High (70–80%) | Channel Level (FIFO/LIFO) | Moderate (Forklifts move vehicles) | Good | Linear |
| Drive-In Racking System | Moderate-High (60–70%) | Low (Strict LIFO) | High (Forklifts drive into channels) | Poor (High collision risk) | Rigid |
| ASRS Stacker Crane System | Very High (80–85%) | 100% Instantaneous | Zero (Fully Automated) | Good | Low (Fixed crane-to-aisle ratio) |
| Standard Selective Pallet Rack | Low (35–40%) | 100% Manual | Very High (Dedicated driver per truck) | Inefficient (High energy cost per pallet) | Manual Expansion |
3. Strategic Global Sourcing & Procurement Trends (2025–2030)
As enterprise procurement directors and logistics system integrators re-evaluate global supply lines, market data points to clear shifts in how warehouse automation is sourced, deployed, and scaled:
Trend A: Sourcing Modular, Hybrid Automation Systems
Enterprise buyers are stepping away from rigid, multi-million dollar monolithic automation setups with high upfront capital expenses (CAPEX). Sourcing managers now prioritize modular 4-way shuttle platforms that allow phased deployment. Operations can install the complete high-tensile racking grid in Phase 1, then scale up their automated vehicle fleet as SKU throughput grows—reducing capital risk while accelerating time-to-ROI.
Trend B: Specialized OEM/ODM Factory Direct Customization
Off-the-shelf catalog racks rarely align with complex warehouse layouts, specific local seismic codes (such as FEM 10.2.09, EN 15512, or AS4084 standards), or custom pallet dimensions. Sourcing directors increasingly contract direct OEM/ODM manufacturers like Remprack for custom upright roll-forming profiles, specialized cold-galvanized finishes, and customized WCS API protocols designed for rapid integration into existing SAP, Oracle, or proprietary Enterprise Resource Planning (ERP) systems.

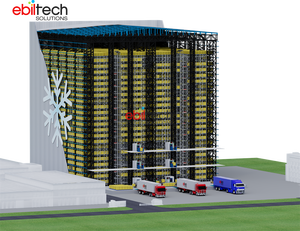

Trend C: Cold Chain Automation & Sustainability Directives
With global cold chain logistics expanding across pharmaceutical and fresh food sectors, running chilled space (-25°C to -30°C) demands efficient volume usage to minimize thermal loss. 4-Way Shuttles remove the need for illuminated, wide forklift aisles in refrigerated spaces, lowering HVAC power usage by up to 35% per stored unit load.
4. Enterprise Manufacturing Advantage: Why Partner with Remprack
Founded in 2006 in Nanjing, China, Remprack Storage Solutions Co., Ltd. has grown into a premier global manufacturing facility for high-density warehouse equipment. Supplying engineering solutions to over 85 countries, our company combines deep structural engineering expertise with modern roll-forming technology.
40,000 m² Manufacturing Facility
State-of-the-art automated continuous cold roll-forming mills, robotic welding cells, and electrostatic powder coating lines running under strict ISO quality controls.
Certified Quality Standards
Certified to CE, ISO 9001, ISO 14001, and TUV Rheinland standards. Rigorous raw material steel batch testing (Q235B, Q355B high strength structural steel).
Full Lifecycle OEM/ODM Support
From 3D CAD/BIM structural analysis, Finite Element Analysis (FEA) testing, export packaging, to remote or on-site installation guidance worldwide.
5. Comprehensive B2B Procurement FAQ
Key technical and commercial details global engineering teams examine when evaluating our 4-Way Shuttle Racking Systems:
What technical data is required to generate a custom 4-Way Shuttle layout and quotation?
- Architectural warehouse floor plan (CAD or PDF format) including clear heights to roof trusses or sprinkler systems.
- Detailed pallet specifications: Outer dimensions (L x W x H), total weight load per unit (kg), and pallet entry style (Europallet, GMA, Industrial, etc.).
- Operational environment parameters (Standard temperature vs. Cold Storage (-30°C), hazardous chemical compliance).
- Target SKU counts, daily inbound/outbound throughput requirements (pallets per hour).
How does the 4-Way Shuttle integrate with existing WMS/ERP platforms?
What happens if a shuttle experiences a low battery or mechanical fault inside a deep rack channel?
What structural engineering and seismic design standards do Remprack systems comply with?
What warranty and global technical support are provided with the equipment?
Do you offer factory OEM/ODM customization for specialized industrial requirements?
Transform Your Warehouse Space Into an Intelligent ASRS Engine
Connect directly with our senior racking design engineers to receive a complimentary 3D warehouse layout blueprint, structural calculation report, and factory-direct project estimate.
