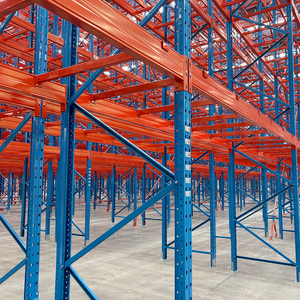

Modular Design Warehouse Storage Shelf CE Certified Heavy Duty Pallet Racking
Get Catalog
CASE CARTER OEM Heavy Duty Metal Steel Truck Industrial Stacking Tire Racks
Get Catalog

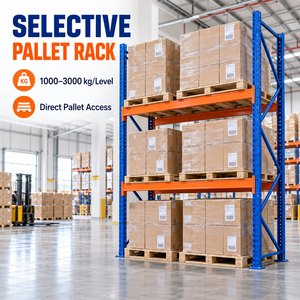

Heavy Duty Selective Pallet Rack Industrial Warehouse Storage Racking System
Get Catalog
High Capacity Radio Shuttle Pallet Racking Semi-Automated Storage System
Get Catalog
High Density Commercial Storage Warehouse Drive-In Pallet Rack System
Get Catalog
Light Duty Boltless Adjustable Industrial Steel Shelving Unit Anti-Corrosion
Get CatalogThe Structural Engineering Blueprint for Custom OEM Deep Storage Pallet Racking
Navigating modern warehouse expansion demands a precise balance between structural integrity, yield strength optimization, and localized safety code compliance.
Cold-Formed High-Tensile Steel & Metallurgical Integrity
Industrial pallet racking structural stability begins with raw material selection. Leading OEM factories utilize high-tensile structural cold-rolled steel grades—primarily Q235B and Q355B (equivalent to SS400 and European EN 10025 S355JR). Cold-roll forming preserves the grain structure of the steel while maximizing column section modulus.
- Yield Strength Optimization: Q355B steel yields up to 355 MPa, providing superior load-to-weight ratios compared to commercial grade steel.
- Precision Punching Profiles: Standardized teardrop, diamond, and 50mm/75mm pitch keyholes engineered to maintain frame rigidity under dynamic forklift loading.
- Finite Element Analysis (FEA): Computerized structural stress modeling verifies elastic deformation parameters under maximum capacity limits before production.
Deep Storage Typologies: Matching Racking Architecture to User Intent
Selecting the optimal pallet rack design relies on inventory turnover velocity (LIFO vs. FIFO), SKU diversity, cold storage overheads, and automated handling equipment compatibility.
1. Selective Pallet Racking
The global benchmark for versatile warehousing. Provides 100% immediate selectivity to every pallet position without displacing surrounding stock.
- Selectivity: 100% Direct Access
- Floor Utilization: 35% – 40%
- Best For: E-commerce fulfillment, FMCG distribution, wide SKU variety.
- Structural Note: Features heavy-duty beam safety locks to prevent accidental forklift dislodgement.
2. Radio Shuttle Deep Storage Racks
Semi-automated deep-lane storage system utilizing remote-controlled pallet shuttles to transport unit loads inside deep racking channels.
- Selectivity: High per lane (FIFO / LIFO configurable)
- Floor Utilization: 75% – 85%
- Best For: Cold storage facilities, high-volume seasonal inventory, food processing.
- Economic Gain: Reduces forklift travel time and operational labor costs by 50%.
3. Drive-In & Drive-Thru Racking
High-density storage engineered for homogeneous products. Forklifts physically drive inside the racking lanes to place or retrieve pallets on continuous cantilevered rails.
- Selectivity: LIFO (Drive-In) / FIFO (Drive-Thru)
- Floor Utilization: Up to 75%
- Best For: Bulk goods, long-shelf-life batch products, low turnover rates.
- Protection: Reinforced upright base protectors shield columns from vehicle impacts.
4. Push-Back Cart Racking
Utilizes nested inclined carts sliding along structural rail channels. Loading a new pallet pushes preceding pallets back up to 2 to 6 positions deep.
- Selectivity: LIFO per lane
- Floor Utilization: 60% – 70%
- Best For: Medium-turnover items with multiple pallets per SKU.
- Efficiency: Faster handling speeds than drive-in racks without forklifts entering the rack structure.
5. Multi-Tier Rack Mezzanines
Transforms overhead cubic airspace into usable floor real estate. Multi-tier shelving systems utilize rack frames to support upper structural steel decking.
- Floor Expansion: Multiplies usable floor area 2x to 3x
- Decking Types: Steel checker plate, bar grating, high-density wood boards.
- Best For: Hand-pick operations, spare parts assembly lines, archive storage.
- Safety: Outfitted with perimeter safety handrails and kickplates.
6. Industrial Cantilever Racking
Unobstructed front access designed explicitly for storing non-standard, long, or bulky materials without front structural columns interfering with load placement.
- Selectivity: 100% Direct Handling
- Arm Profiles: Adjustable arms with optional removable stops.
- Best For: Steel pipes, timber planks, aluminum extrusions, sheet metal.
- Finishes: Hot-dip galvanized coating engineered for outdoor yards.
Why Leading Global Logistics Integrators Partner with Our OEM Factory
Founded in 2006 in Nanjing, China, Remprack Storage Solutions Co., Ltd. operates a state-of-the-art 40,000 m² production hub equipped with continuous automated roll-forming lines, robotic welding cells, and eco-friendly electrostatic powder coating lines.
- 10-Year Comprehensive Structural Warranty: Backed by rigorous load testing and raw material traceability protocols.
- RMI (ANSI MH16.1) & FEM 10.2.02 Compliance: Full dynamic seismic load calculations ensuring stability in earthquake zones 1 through 4.
- Complete OEM / ODM Flexibility: Custom punch patterns, upright width variations, custom RAL brand colors, and private-label packaging.
- Certified Export Quality: ISO 9001, ISO 14001, CE mark, and third-party TUV inspection certificates available for international project tenders.
Future Procurement Trends in Deep Storage Pallet Racking
As global supply chains shift toward high-density automation, land costs rise, and sustainability metrics take center stage, B2B procurement leaders are evaluating racking suppliers through new strategic lenses.
1. Convergence of Racking & 4-Way Shuttle Automation
The industry is transitioning rapidly from traditional manual racking to high-density 4-Way Automated Pallet Shuttle Systems. Modern deep storage structures are engineered with micro-tolerances (+/- 1.5mm structural variance) allowing 4-directional robotic shuttles to interface directly with Warehouse Management Software (WMS).
2. Cold-Chain Cold-Resilient Surface Treatments
Sub-zero cold storage warehouses (-25°C to -30°C) demand specialized powder coatings that prevent micro-fracturing and embrittlement. Modern OEM factories utilize specialized epoxy-polyester formulas that maintain high impact resistance under extreme cryogenic condensation conditions.
3. Modular Modularization & Low-Carbon Steel Sourcing
International enterprise buyers are mandating ESG-compliant manufacturing. Advanced factories utilize recyclable steel scrap feeds, energy-efficient roll-forming lines, and zero-VOC electrostatic coating methods that lower embedded carbon footprints across global project lifecycles.
Deep Storage Systems Technical Comparison Matrix
Quantitative decision matrix engineered for warehouse logistics planners and industrial procurement directors.
| Racking Architecture | Volumetric Efficiency | Stock Rotation Mode | Forklift Aisle Width Requirement | Average Investment ROI | Structural Load Capability |
|---|---|---|---|---|---|
| Selective Pallet Racks | Medium (40%) | 100% Direct / FIFO | 3.0m – 3.8m (Standard) | Fast (12 – 18 Mo.) | Up to 4,500 kg / beam level |
| Radio Shuttle System | Maximum (85%) | FIFO or LIFO Selectable | Lane Face Only (3.0m) | High (24 – 36 Mo.) | Up to 1,500 kg / pallet position |
| Drive-In Racking | High (75%) | Strict LIFO | Internal Drive Lanes | Moderate (18 – 24 Mo.) | Up to 1,500 kg / pallet position |
| Push-Back Cart System | High (70%) | LIFO per Cart Lane | 3.0m – 3.4m | Moderate (18 – 30 Mo.) | Up to 1,400 kg / cart position |
| Very Narrow Aisle (VNA) | High (65%) | 100% Direct Access | 1.6m – 1.9m (VNA Truck) | Fast (12 – 24 Mo.) | Up to 4,000 kg / beam level |
| Multi-Tier Mezzanine | 200% Floor Area | Manual Pick / Conveyor | Variable Pick Aisles | Very Fast (12 Mo.) | 300 kg to 1,000 kg / m² |
Warehouse Racking Sourcing & Technical Engineering FAQ
Addressing key engineering, safety certification, and custom manufacturing inquiries from international buyers.
What core warehouse parameters are required to calculate a custom racking layout proposal?
1. Architectural warehouse CAD or PDF floor plans displaying building column grids, door locations, and clear height under sprinkler systems/roof trusses.
2. Unit load specifications: Exact pallet dimensions (W x D x H including product overhang) and maximum gross pallet weight.
3. Material handling equipment (MHE) data: Forklift model, minimum operating aisle width (Ast), and maximum lift height capability.
4. Inventory turnover profiles: SKU count, daily pallet movement throughput, and required rotation strategy (FIFO vs. LIFO).
5. Local environmental variables: Ambient warehouse temperatures (e.g. cold storage) and regional seismic zone accelerations.
How do OEM deep storage racking manufacturers ensure structural safety under seismic loading?
What is the structural difference between Cold-Rolled Q235B and Q355B steel in racking frames?
What surface finishing technologies are applied to prevent corrosion and oxidation?
Can Remprack manufacture rack components compatible with existing teardrop or European beam profiles?
What factory lead times and shipping packaging procedures apply to international B2B orders?
