What information do you need to design a warehouse racking system?

Please send the warehouse floor plan (CAD or PDF) and the clear height under beams or sprinklers. We also need the pallet size and maximum unit load, the forklift type and lift height, the number of SKUs and the daily throughput. Tell us about any local seismic or design standards that apply. Our engineers use this information to prepare a layout and a structural proposal.

Which certifications does Remprack hold?

Our products and quality system are certified to CE, ISO 9001, ISO 14001 and TUV. We provide test reports and certificates for project documentation on request.

Do you offer OEM and ODM racking manufacturing?

Yes. We offer OEM and ODM manufacturing for distributors, integrators and end users. Upright profiles, beam sections, dimensions, colors and branding can all be customized to your project or market requirements.

What warranty do your racking systems carry?

Our racking systems carry a 10-year product warranty when installed and used according to our load signs and installation guidance.

Which markets have you supplied?

Since 2006 we have exported racking systems to more than 85 countries across Europe, Asia, the Americas, the Middle East and Africa.

How do I choose between drive-in, push back, pallet flow and shuttle racking?

Drive-in racking suits large volumes of a few SKUs with LIFO rotation. Push back stores 2 to 5 pallets deep with LIFO and faster access. Pallet flow gives true FIFO for perishable goods. Shuttle racking offers very high density with either FIFO or LIFO and reduces forklift travel inside the rack.

China Wholesale VNA Forklift Pallet Racking Suppliers & Exporter

Engineering-Grade Very Narrow Aisle Racking Systems & High-Bay Industrial Warehouse Storage Solutions

Engineering-Grade VNA Racking Systems & Equipment

Precision-engineered cold-rolled steel racking designed specifically for VNA turret trucks and 3-way pallet stackers.

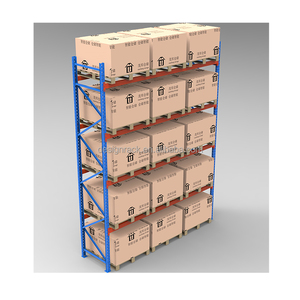

Heavy Duty Industrial VNA Factori Steel Pallet Rack Selective Double Deep Forklift 2 Ton

Heavy Duty Industrial VNA Selective Double Deep Racking

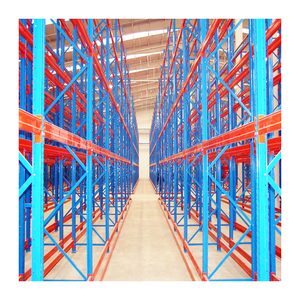

High Rack Warehouse System Heavy Duty Pallet Racking System VNA Narrow Aisle Racks

High-Bay Warehouse VNA Narrow Aisle Storage System

Racking Adjustable Forklift Vna Rack Double Deep Industrial Selective Storage

Adjustable Double Deep Industrial VNA Pallet Racking

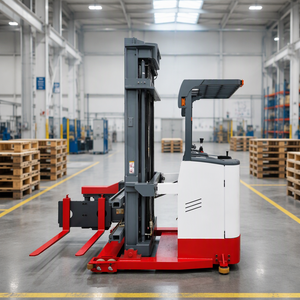

1.5 Ton Multi-Directional VNA Electric Forklift Truck

High Load Capacity Heavy-Duty VNA Pallet Rack

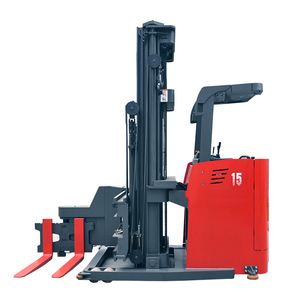

1.5 Ton 3 Way Pallet Stacker VNA Forklift

1.5 Ton 3-Way Pallet Stacker VNA Electric Forklift

Industrial Movable Leak-Proof Corrosion Protected VNA Pallet Rack

Corrosion-Protected Forklift-Compatible Heavy VNA Racking

Automatic Retrival VNA Pallet Rack Fork Lifter Carge Stacker

Automatic Retrieval VNA Pallet Rack Cargo Stacker

Engineering Whitepaper: Very Narrow Aisle (VNA) Racking Architectural Standard

Modern supply chain logistics, soaring industrial real estate prices, and high-density fulfillment requirements have forced warehouse operators to optimize vertical spatial utilization. Very Narrow Aisle (VNA) Pallet Racking Systems represent the pinnacle of selective high-bay warehouse engineering. By shrinking operation aisle widths from standard selective racking dimensions of 3.5 to 4.0 meters down to 1.5 to 1.8 meters, VNA configurations instantly recover up to 45% to 50% of wasted floor area while granting 100% direct pallet accessibility.

As a premier China wholesale VNA forklift pallet racking supplier and exporter, Remprack Storage Solutions Co., Ltd. manufactures structural systems built to international European (FEM 10.2.04 / EN 15620) and American (RMI) standards. VNA racking is not merely standard selective racking with tight rows; it is an integrated structural infrastructure requiring strict floor tolerances, custom profile engineering, and precision guide-rail or wire-guidance system integration.

+45%

Storage Density Increase

1.5m

Ultra-Narrow Aisle Width

18m

Max Vertical Bay Height

100%

Direct SKU Selectivity

Critical Engineering Insight: When operating VNA turret trucks at heights exceeding 12 to 16 meters, structural sway and beam deflection tolerances must adhere strictly to FEM 10.2.04 Class 300 standards. Our high-tensile Q355B cold-rolled structural steel beams ensure structural integrity under maximum static and dynamic loading conditions.

Technical Benchmark Comparison: VNA vs. Alternative Racking Systems

Racking Architecture	Aisle Width (mm)	Floor Space Utilization	Pallet Selectivity	Forklift Compatibility
VNA Selective Racking	1,500 – 1,800 mm	85% - 90%	100% Direct Access	VNA Turret Truck / Articulated Forklift
Standard Selective Racking	3,500 – 4,000 mm	40% - 50%	100% Direct Access	Standard Counterbalance / Reach Truck
Double Deep Pallet Racking	3,000 – 3,300 mm	60% - 65%	50% (LIFO)	Deep Reach Pantograph Forklift
Radio Shuttle Racking	Deep Lane (Variable)	80% - 88%	Lane Dependent (FIFO/LIFO)	Standard Forklift + Automated Shuttle

Future Procurement Trends in VNA Storage & Handling Systems (2025–2030)

As global distribution centers shift toward automated smart warehousing, the procurement criteria for global B2B buyers, EPC contractors, and logistics integrators are rapidly evolving. Procurement directors are no longer purchasing isolated steel racks; they are acquiring integrated automated storage ecosystems.

1. Transition to Wire-Guided & AMR VNA Systems

Traditional mechanical angle-iron guide rails are being rapidly replaced by inductive wire guidance embedded beneath Superflat concrete floors. Furthermore, the market is adopting Autonomous Mobile Robots (AMR) and AGV VNA turret trucks, demanding sub-millimeter manufacturing tolerances from Chinese racking exporters.

2. Cold-Chain & Pharmaceutical High-Bay Density

Energy costs in refrigerated and frozen environments (-25°C to -30°C) make vertical cubic space optimization mandatory. Cold-store logistics operators are favoring galvanized VNA high-bay systems paired with multi-directional articulated electric forklifts to minimize refrigerated volume per pallet slot.

3. Modular & Seismic-Resistant Engineering

Global climate shifts and stringent building safety codes (such as US ASCE 7 and European EN 16681 seismic standards) require VNA racking manufacturers to engineer dynamic shock-absorbing base plates, heavy-duty floor anchor bolts, and reinforced diagonal bracing patterns.

Technology Development & Engineering Innovation Trends in VNA Racking

The manufacturing process of VNA racking has progressed far beyond basic roll-forming and manual welding. Advanced Chinese OEM factories utilize robotic laser cutting, continuous automated roll-forming lines, and electrostatic powder coating to ensure absolute structural consistency across thousands of tons of exported steel.

Key Technological Advances in VNA Racking Production:

Continuous Cold-Formed High-Yield Profiles: Utilizing high-strength Q355B structural steel, upright columns feature multi-rib profile geometry, delivering maximum torsional stiffness and buckling resistance while optimizing steel usage.
Precision Mechanical Guide-Rail Engineering: Heavy-duty ground-mounted guide rails (typically 100x50mm or 120x60mm steel profiles) are manufactured with continuous alignment plates to prevent forklift track distortion and ensure smooth high-speed travel inside the aisle.
Structural Top-Tie Beam Systems: In high-bay systems exceeding 14 meters, top-tie bracing beams connect opposing rack rows across the VNA aisle, creating a unified rigid structural cage that dampens dynamic oscillations caused by rapid forklift mast elevation.
Surface Finishes for Demanding Environments: Advanced epoxy-polyester powder coating tested against 500-hour salt spray tests ensures superior corrosion protection in high-humidity or industrial chemical environments.

Why Partner with Remprack: Leading China VNA Racking Exporter

Founded in 2006, Remprack Storage Solutions Co., Ltd. (based in Nanjing, Jiangsu, China) has established itself as an authoritative global manufacturer of heavy-duty industrial racking and automated warehouse storage systems. Over 20 years of continuous growth and technical innovation enable us to deliver direct factory pricing without compromising on engineering quality.

Global Certifications

Fully compliant with international quality standards. Certified to CE, ISO 9001, ISO 14001, and TUV Rheinland testing protocols, ensuring effortless customs clearance and compliance worldwide.

40,000 m² Production Base

Our state-of-the-art facility features automated cold-roll forming lines, robotic welding stations, and high-speed powder coating lines, supported by a 300+ member expert workforce.

10-Year Warranty & 85+ Markets

Backed by a robust 10-year warranty, our racking systems have been exported to more than 85 countries across Europe, North America, Southeast Asia, the Middle East, and Latin America.

OEM & ODM Engineering Service: We provide full engineering layout support, 2D/3D CAD drawings, finite element analysis (FEA) reports, and customized profile designs tailored specifically to your forklift model and floor load limits.

Frequently Asked Questions: VNA Pallet Racking Procurement

Essential engineering and procurement answers for warehouse directors, purchasing agents, and logistics engineers.

What floor specifications are required for a VNA racking installation?

VNA high-bay racking systems require superflat concrete floors compliant with VDMA guidelines, EN 15620 (Class 300), or ACI F-min standards (F-min 80 to 100+). Because turret trucks lift loads up to 15+ meters in narrow aisles, minor floor irregularities can cause hazardous mast sway. If floor flatness is non-compliant, floor grinding or self-leveling resin toppings must be applied prior to rail or wire installation.

Should I select ground-mounted mechanical guide rails or inductive wire guidance?

Mechanical guide rails (typically 100mm angle steel) offer low initial installation costs and robust physical protection against forklift collision. However, they reduce floor space accessibility at the bottom level. Inductive wire guidance (embedded in a 15mm floor slot) allows clean floor access and hand-pallet truck movements at floor level, but requires a forklift equipped with active inductive sensors and steering controls.

What warehouse height is ideal for VNA racking systems?

VNA racking provides maximum ROI in warehouses with clear heights ranging from 8 meters to 18 meters. For facilities under 7 meters, standard reach trucks or double-deep racking may offer a more cost-effective balance between capital equipment cost and spatial gain.

How does Remprack guarantee structural safety for high-bay VNA racks exported overseas?

Every project undergoes rigorous FEA (Finite Element Analysis) structural simulation based on FEM 10.2.02 / EN 15512 codes. We utilize high-grade Q355B cold-rolled steel with certified chemical composition and tensile strength. Racking shipments include detailed installation manuals, engineering drawings, load labels, and torque specification charts.

What information is needed to receive a custom design and quotation?

To provide an exact layout and structural engineering quote, please submit:
1. Warehouse floor plan (CAD or PDF) with clear ceiling height and obstacle positions.
2. Pallet dimensions (Length x Width x Height including cargo) and maximum weight per pallet.
3. Forklift make/model, maximum lift height, and minimum turning aisle width specifications.
4. Target operating temperature (ambient, cold storage, or deep freeze).

What lead time and shipping options does Remprack offer for bulk wholesale orders?

Standard production lead time for a typical 5 to 20 container project is 15 to 25 days. Products are professionally bundled with protective wrapping and wood block supports to prevent transit damage during ocean freight. We export under FOB, CIF, DDU, and DDP terms globally.

Optimize Your Warehouse Storage Density Today

Send us your warehouse floor plan and load requirements. Our expert engineering team will return a customized 2D/3D VNA layout design and factory-direct quotation within 24 hours.
