ISO 9001 / CE / TUV CERTIFIED FACTORY

China Wholesale Satellite Pallet Racking Factory & Suppliers

High-Density Semi-Automated & Automated Radio Shuttle Pallet Racking Systems. Engineered to FEM 10.2.02 & EN 15512 Standards for Global Logistics Hubs and Cold Chain Storage.

Product Catalog

Heavy-Duty & High-Density Pallet Racking Systems

Factory-direct manufacturing of precision-engineered industrial warehouse rack configurations, designed for maximum volume utilization and extreme load bearing safety.

Heavy Duty 5 Layer Selective Pallet Racking System

Heavy Duty 5 Layer Selective Pallet Racking System with Corrosion Protection Adjustable Steel Beam

Send an Inquiry
Export Standard Packing Pallet Rack Manufacturer

Export Standard Packing Pallet Rack Warehouse Rack Manufacturer Q235B Steel Heavy Duty Storage Rack

Send an Inquiry
Teardrop Pallet Racking System for Logistics Hub

Jracking US Inventory Warehouse Stacking Shelves Racks Heavy Duty Teardrop Pallet Racking System for Logistics Hub

Send an Inquiry
High Quality ODM OEM Multi-layers Storage Pallet Racking

High Quality ODM/OEM Warehouse Multi-layers Shelves Storage Pallet Racking CE Certificated Industrial Racks

Send an Inquiry
Heavy Duty Drive-in Pallet Rack System

Heavy Duty Drive-in Pallet Rack System 1000-5000kg LIFO FIFO Deep Lane Warehouse Storage Rack Steel Racking

Send an Inquiry
Boltless Heavy Duty Beam Rack Sturdy Steel Construction

Boltless Heavy Duty Beam Rack Sturdy Steel Construction Pallet Shelving for Factory Warehouse Distribution Center

Send an Inquiry
200-4000KG Selective Pallet Racking Heavy Duty Warehouse Rack

200-4000KG Selective Pallet Racking Heavy Duty Warehouse Rack Custom Size OEM Manufacturer

Send an Inquiry

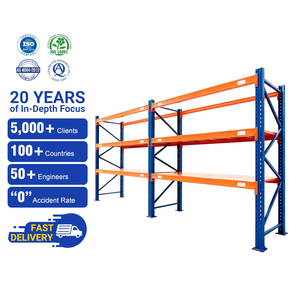

Customized Heavy Duty Industrial Storage Shelves System

Customized Heavy Duty Industrial Storage Shelves System Metal Rack Stacking Units Warehouse Steel Industrial Racking

Send an Inquiry
2006+
Established Year
40,000m²
Production Plant
85+
Export Markets
10Yrs
Structural Warranty

Technical Architecture of Satellite Pallet Racking Systems (Radio Shuttle Racking)

In modern supply chain management and automated warehousing, optimizing cubic footprint density while maintaining operational throughput is the primary engineering challenge. As a premier China wholesale satellite pallet racking factory & supplier, we engineer high-density semi-automated deep-lane racking architectures designed around autonomous shuttle vehicles (often termed "Satellite Carts" or "Radio Shuttles").

Satellite pallet racking replaces traditional forklift aisles with continuous structural storage channels. The autonomous satellite shuttle cart travels along specialized support rails integrated into the racking structure beneath pallet positions. Operatives utilize a standard counterbalanced or reach forklift solely to place goods at the lane entry (facing channel) or transfer the shuttle between channels. Once positioned, the shuttle independently handles internal pallet transportation, elevation, positioning, and retrieval via RF/Wi-Fi wireless remote commands or direct Warehouse Control System (WCS) integration.

Information Gain Insight — Structural Load Dynamics: Unlike static drive-in racking where forklifts must physically navigate inside channels—introducing high risks of upright collision and structural fatigue—satellite racking isolates mechanical movement to precision-guided shuttle vehicles. This reduces vertical upright impact risk by over 92% and allows structural engineers to specify optimized Q355B cold-rolled steel profiles with higher yield strengths (up to 355 MPa) and reduced cross-sectional mass.

Volumetric Efficiency Optimization

Achieve up to 85% storage density utilization per square meter—surpassing selective racking (40-45%) and drive-in racking (60-65%) by eliminating unnecessary forklift access aisles.

Dynamic FIFO & LIFO Versatility

Easily switch between First-In, First-Out (FIFO) for perishable food/pharma batches and Last-In, First-Out (LIFO) for fast-moving bulk consumer goods via single-point controller programming.

Cold Storage (-30°C) Reliability

Engineered with thermal-shielded Lithium Iron Phosphate (LiFePO4) power cells, IP65 moisture-sealed electronics, and low-temperature synthetic lubricants for unbroken deep-freeze operation.

B2B Procurement Trends in Satellite Pallet Racking (2025–2030 Analysis)

Global supply chain logistics are undergoing a structural shift toward high-density automation. Procurement managers, logistics integrators, and industrial warehouse developers must evaluate racking infrastructure investments against a 10-to-15-year lifecycle model. Key procurement trends shaping the market include:

1. Shift from Manual Drive-In to Semi-Automated Shuttle Systems

While traditional Drive-In racking offers low initial capital expenditure (CAPEX), its operational expenditure (OPEX) is inflated by forklift driver bottlenecks, low throughput rates (max 15-20 pallet movements/hour per aisle), and high maintenance costs resulting from structural rack collisions. Wholesale buyers are increasingly reallocating budgets toward wholesale China satellite shuttle racks, yielding payback periods under 24 months through reduced labor overhead and zero rack-impact downtime.

2. Integration of 4D Multi-Directional Satellites & ASRS Compatibility

The market is rapidly evolving from 2-way linear satellite shuttles (moving strictly forward and backward) to 4-Way Multi-Directional Pallet Shuttles capable of longitudinal and lateral lane navigation across cross-beams. Procurement strategies now prioritize modular rack structures designed with standardized notch profiles that accommodate future upgrades from semi-automated radio shuttles to fully automated Automated Storage and Retrieval Systems (ASRS) featuring vertical elevators and automated guided vehicles (AGVs).

3. Sustainability, High-Tensile Steel & Low Carbon Footprints

Environmental compliance standards across the EU and North America require structural steel suppliers to declare embodied carbon footprints. Leading Chinese factories utilize certified high-tensile cold-rolled steel coils (Q355B grade) processed using eco-friendly continuous electrostatic powder-coating lines, guaranteeing volatile organic compound (VOC) zero-emission profiles alongside superior salt-spray corrosion resistance (ISO 9227 compliant).

Comparative Architecture & ROI Matrix for Warehouse Storage Systems

Storage System Type Volume Utilization Selectivity & Access Throughput Speed Cold Store Suitability 5-Year Relative TCO
Selective Pallet Racking 40% – 45% 100% Direct Access High (Manual Forklift) Low (High Land Cost/m³) Baseline (High OPEX)
Drive-In Racking 60% – 65% Low (LIFO Only) Slow (Risk of Collision) Moderate Moderate (High Damage Rate)
Push-Back Racking 65% – 70% Moderate (2-6 Deep) Medium Moderate Moderate-High
Satellite Pallet Racking (Shuttle) 80% – 88% Channel FIFO / LIFO Very High (Automated) Excellent (-30°C Rated) Optimal (Lowest TCO)
Fully Automated ASRS (4D Shuttle) 90% – 95% Fully Automated WMS Maximum (24/7 Robotic) Superior High CAPEX / Low OPEX

Future Technological Development Trends in Satellite Storage Systems

Future innovations in satellite pallet storage center around intelligent software-hardware synergies, energy harvesting, and structural health monitoring:

  • AI-Driven Dispatching Algorithms: Modern satellite fleets are managed by cloud-connected Fleet Management Systems (FMS). Machine learning algorithms analyze historical shipping orders to automatically reorganize pallet placement during off-peak night shifts, bringing high-frequency SKUs closer to picking faces.
  • Supercapacitor & Fast Induction Charging: Next-generation shuttle carts are transitioning from plug-in lithium packs to supercapacitors combined with wireless induction tracks embedded at channel ends. Shuttle vehicles recharge within 30 seconds during forklift load/unload cycles, enabling continuous 24/7 multi-shift operation.
  • IoT Structural Strain & Tilt Sensors: Smart racking columns feature integrated piezoelectric sensors that measure real-time vertical upright deflection, floor anchor tension, and seismic oscillation. Critical structural alerts are delivered immediately to warehouse management consoles before elastic deformation thresholds are exceeded.

Require a Custom Satellite Racking Layout & CAD Calculation?

Our structural engineering team provides complimentary 2D layout drafting, 3D BIM modeling, and precise pallet load capacity simulations based on your building drawings and operational requirements.

Send an Inquiry

Enterprise Advantage & Manufacturing Capability (Remprack Storage Solutions)

When sourcing China wholesale satellite pallet racking, factory certification, structural engineering rigor, and manufacturing precision dictate the safety and longevity of your project. Founded in 2006, Remprack Storage Solutions Co., Ltd. (Nanjing, China) operates as an industry-leading OEM/ODM structural rack manufacturer.

40,000 m² Advanced Production Base

Equipped with 22 automated cold roll-forming lines, robotic CNC welding stations, and continuous automatic powder-coating tunnels capable of delivering over 50,000 metric tons of structural steel racking per annum.

International Structural Certifications

All load-bearing uprights, step beams, and shuttle rails undergo finite element analysis (FEA) testing in strict compliance with EN 15512, FEM 10.2.02, RMI, CE, ISO 9001, ISO 14001, and TUV Rheinland standards.

Export Proven in 85+ Countries

Over two decades, we have delivered more than 2,000 large-scale warehouse projects across Europe, North America, Southeast Asia, the Middle East, and Latin America with zero structural failure records.

Complete OEM / ODM Customization

Custom profile engineering, specific color coding (RAL color matching), branded shuttle housing, tailored footplate anchoring for seismic zones, and custom packaging for safe international container freight.

Technical FAQ

Frequently Asked Questions for B2B Procurement Buyers

Essential technical answers regarding design, manufacturing, cold storage, lead times, and structural safety parameters.

What essential warehouse parameters are required to design a custom Satellite Pallet Racking system? +
To provide an accurate structural proposal and layout drawing, our engineering team requires:
  1. Warehouse CAD layout or dimensional floor plan including clear height under sprinklers/trusses.
  2. Pallet dimensions (Length x Width x Height including cargo overhang).
  3. Maximum load weight per pallet (e.g., 500 kg to 1,500 kg).
  4. Forklift specifications (Lift height, aisle clearance, mast reach).
  5. Operational temperature environment (Ambient room temp or sub-zero cold room down to -30°C).
  6. Stock rotation preference (FIFO or LIFO) and daily throughput target (pallets moved per hour).
How does a Satellite Shuttle Racking system perform in sub-zero cold storage environments? +
Our cold-chain satellite shuttles are specifically built for deep-freeze logistics down to -30°C. They feature thermal-insulated LiFePO4 battery compartments with built-in internal heating elements, IP65 moisture-proof circuit protection to prevent condensation short-circuiting during temperature transitions, and specialized low-temperature synthetic lubricants that maintain constant viscosity without freezing.
What standard steel grades and structural certifications are utilized during production? +
We strictly utilize high-grade prime steel coils certified to Q235B and Q355B structural grades (equivalent to S235 and S355 under European standard EN 10025). All manufacturing processes adhere to ISO 9001 quality management, ISO 14001 environmental standards, CE compliance for electrical machinery (shuttle vehicles), and structural design standards under FEM 10.2.02 and EN 15512.
What is the typical production lead time and factory warranty coverage? +
Standard manufacturing lead times range between 20 to 35 business days depending on order volume and custom roll-forming profile requirements. We provide a comprehensive 10-year warranty on all structural steel racking components (uprights, beams, rails) and a 1-year full component warranty on electronic shuttle carts, supported by quick-ship replacement parts and remote engineer support.
Can traditional selective or drive-in racking frames be retrofitted into satellite shuttle racks? +
In many cases, existing upright frames can be re-utilized if their depth, steel thickness, and structural load ratings meet engineering safety margins. However, new precision-formed shuttle guide rails, specialized beam connectors, and entry alignment funnels must be installed to ensure seamless satellite shuttle navigation and optical sensor tracking.
How do you prevent shipping damage during long-distance oceanic container transport? +
All structural uprights and beams are bundled with steel strapping over protective plastic film padding, heavy-duty cardboard edge guards, and wooden skids. Small accessories, baseplates, bolts, and electronic shuttles are packaged in export-grade reinforced wooden crates with desiccant packs to guarantee moisture control during international sea transport.

Partner with China's Premier Satellite Racking Manufacturer

Accelerate your warehouse capacity, lower operational costs, and secure factory-direct wholesale pricing today. Speak directly with our senior racking design engineers.

Send an Inquiry
