Featured Industrial Block Stacking & High-Density Racking Systems
Explore our direct-from-factory engineered warehouse racking units. Each system is designed to comply with international FEM 10.2.02 and ANSI/MH16.1 structural standards, maximizing floor area volumetric efficiency while guaranteeing operational safety.
1. Industrial Whitepaper: Engineering Architecture of Block Stacking Racking Systems
Modern warehouse management requires a rigorous optimization between cubic space utilization, operational selectivity, and capital expenditure. In high-density logistics, Block Stacking Racking Systems—comprising movable post pallets, modular stacking frames, radio pallet shuttles, and integrated static racking structures—represent the cornerstone of dynamic bulk storage.
Unassisted floor block stacking (stacking pallets directly on top of one another) often yields product crushing, point-load structural overload, severe Honeycombing inefficiency (unutilized vertical space), and zero selectivity for underlying Stock Keeping Units (SKUs). Engineering solutions manufactured by OEM China wholesale racking factories replace unassisted stacking with rigid, high-tensile steel framing architectures designed to absorb dynamic loads while eliminating floor-level shear stresses.
Mechanical Design Specifications: Steel Metallurgy & Structural Formability
Top-tier Chinese wholesale racking factories utilize cold-rolled structural steel profiles conforming to Q235B and Q355B (SS400 equivalent) standards. Upright profiles are precision roll-formed through continuous multi-station rolling mills, producing interlocking teardrop or omega structural geometries. Key structural considerations include:
Moment-Resisting Joints
Interlocking beam connector hooks engineered with 3-to-4 tooth safety locks to prevent accidental dislodgement during high-speed forklift operation.
Deflection Index L/200
Horizontal load beams calculated under max working capacity to ensure maximum deflection never exceeds L/200, protecting automated shuttles and pallet runners.
Seismic Bracing Arrays
Diagonal and horizontal truss bracing calculated per AS4084 and RMI specifications, absorbing lateral kinetic forces during seismic vibration events.
2. Enterprise Manufacturing Advantages & Global E-E-A-T Credibility
Headquartered in Nanjing, Jiangsu Province—the global hub of heavy-duty industrial storage manufacturing—Remprack Storage Solutions Co., Ltd. has established an unshakeable operational presence since 2006. Operating out of a state-of-the-art 40,000 square meter manufacturing facility, our enterprise integrates R&D engineering, mechanical fabrication, automated robot welding, and eco-friendly electrostatic powder coating lines.
Rigorous Quality Assurance & International Compliance
To ensure absolute reliability in hazardous, high-throughput, or cold-storage environments, all Remprack block stacking and automated racking systems undergo strict structural testing. We hold internationally recognized quality certifications:
- CE Certification: Compliance with European Union Machinery Directive & EN 15512 static steel racking structures.
- ISO 9001 & ISO 14001: Internationally certified Quality & Environmental Management Systems governing every production stage from raw coil inspection to post-weld NDT.
- TÜV Rheinland Validated: Independent structural load capacity verification confirming safety factors exceeding 1.55.
- 10-Year Structural Warranty: Backed by comprehensive after-sales engineering support and factory replacement guarantees.
Having successfully deployed over 2,000 turnkey racking projects across 85+ countries (spanning Europe, North America, Southeast Asia, Middle East, and Latin America), our technical sales team delivers tailor-made OEM/ODM solutions adapted to unique local building codes, floor load limits, and forklift specifications.
3. Comparative Selection Matrix: High-Density Racking & Block Stacking Systems
Selecting the optimal warehouse racking system requires matching operational parameters such as SKU variability, batch volume, rotation preference (LIFO vs. FIFO), and handling automation level. The matrix below outlines technical specifications for strategic equipment purchasing.
| Racking Architecture | Volumetric Density | Access Kinematics | Payload Capacity | Ideal Industry Use Case |
|---|---|---|---|---|

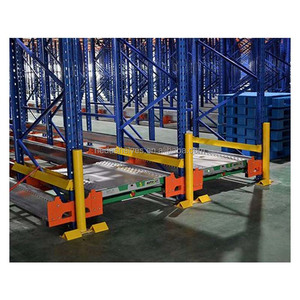

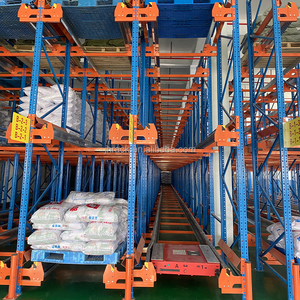

| Radio Pallet Shuttle | Extreme (up to 85%) | LIFO or FIFO Automated | 500 - 1500 kg / pallet | Cold Storage, Food & Beverage, High-Volume FMCG |
| Stacking Post Pallets | High (60% - 75%) | Flexible LIFO Bulk | 1000 - 2000 kg / unit | Tire Distribution, Raw Material Coils, Temporary Warehouses |

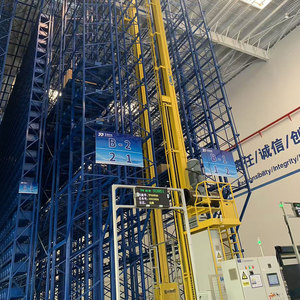

| Automated AS/RS Crane | Maximum (up to 95%) | WMS Guided Automated | 300 - 3000 kg / position | 24/7 Smart Logistics Centers, E-Commerce Hubs |

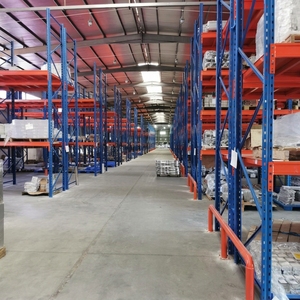

| Selective Pallet Rack | Moderate (40% - 50%) | 100% Direct Selective | 1000 - 4500 kg / level | 3PL Distribution, SKU-Rich Retail Warehousing |
| Rack-Supported Mezzanine | Vertical Multi-Tier | Manual / Conveyor Access | 300 - 1000 kg / m² | Spare Parts Picking, E-Commerce Parcel Sorting |
4. Future Sourcing & Procurement Trends in Stacking Racking (2025–2030)
Global supply chain disruptions and skyrocketing industrial real estate costs are driving rapid technological shifts in warehouse storage design. When evaluating China wholesale racking factories, procurement executives must consider the following emerging industry trends:
A. Transition from 2-Way to 4-Way Radio Shuttle Automation
Traditional 2-way pallet shuttles move exclusively in deep channels along a single horizontal axis. Next-generation 4-Way Automated Pallet Shuttles feature cross-lane omnidirectional travel capability, allowing a single robot to transition between storage lanes and vertical lift hoists autonomously. This reduces shuttle fleet sizes while eliminating dead zones in high-density block stacking configurations.
B. Modular & Movable "Flex-Block" Post Pallets
Fixed racking infrastructure can represent a risk for leased facilities or seasonal inventory fluctuations. The global tire, textile, and agricultural sectors are rapidly adopting demountable metal post pallet stacking frames. These units stack up to 5 tiers high when loaded, yet collapse down to 15% of their vertical volume when empty, drastically lowering return freight and empty floor storage costs.
C. Sustainable Zero-VOC Surface Finishing & High-Durability Galvanization
Environmental regulations are tightening globally. Industrial buyers now demand non-gassing, non-toxic epoxy-polyester powder coating formulations that withstand extreme thermal shock (down to -30°C in deep-freeze logistics) without micro-cracking. For outdoor or corrosive environments, continuous hot-dip galvanization (HDG) to ISO 1461 standards is fast becoming the mandatory specification for long-term corrosion resistance.
5. Strategic Procurement FAQ: China Wholesale Racking Factories
Addressing critical technical, commercial, and operational questions commonly raised by B2B enterprise procurement officers and supply chain engineers.
What technical parameters are required for a custom warehouse racking engineering layout?
To produce an optimized CAD layout and structural calculation report, our engineering team requires:
- Architectural warehouse drawings showing building clear height under roof trusses, sprinkler clearances, column grid dimensions, and slab thickness/strength (e.g., C25/C30 concrete).
- Exact pallet dimensions including pallet length, width, height including goods, and maximum gross unit weight (kg/pallet).
- Forklift specifications including maximum lift height, overall mast collapsed height, minimum turning radius, and aisle width requirement.
- Operational requirements: SKU count, daily throughput volume, storage strategy (FIFO vs. LIFO), and local seismic hazard coefficients.
How does a block stacking post pallet compare to traditional fixed selective pallet racking?

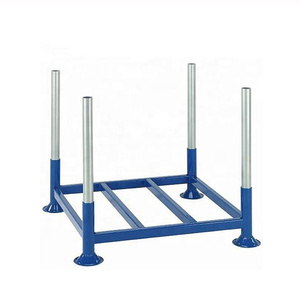

Block stacking post pallets are mobile, modular steel frames designed to contain unit loads while stacking directly on top of each other. Unlike fixed selective pallet racking, post pallets require no permanent floor anchoring and can be completely reorganized or collapsed when seasonal stock shifts. They are ideal for high-density storage of uniform goods (such as tires, bulk bags, and drums) where zero-floor-footprint flexibility is needed.
What quality control procedures guarantee structural safety from China racking suppliers?
At Remprack Storage Solutions, quality control involves a 4-tier verification protocol: (1) Raw Material Inspection—testing tensile strength and chemical composition of incoming steel coils; (2) Roll Forming & Punching Tolerance Checks—monitoring pitch accuracy to within ±0.5mm; (3) Ultrasonic & Penetrant Weld Testing on structural connectors and load beams; (4) Electrostatic Coating Thickness Measurement (minimum 60-80 microns) and impact adhesion testing per ISO standards.
Can Remprack manufacture OEM/ODM racking compatible with existing European or American systems?
Yes. We offer complete OEM/ODM engineering capabilities. Our tooling shop can manufacture custom upright profile punchings compatible with standard Teardrop systems (US market), Dexion, Speedlock, Link 51, or Stow profiles. Custom beam section heights, custom RAL powder coating colors, and customer logo stamping on beam locks are standard OEM services.
What is the standard lead time and container shipping optimization for wholesale export orders?
Standard factory production lead time is 15 to 25 calendar days for a standard 40ft High Cube container order (approx. 20-25 metric tons of structural steel). Components are bundled with protective steel strapping, plastic wrapping, and corner guards to prevent transit abrasion. Our logistics team utilizes specialized CAD container loading software to maximize freight density and reduce ocean shipping costs per pallet position.
How do radio pallet shuttle systems operate in sub-zero cold storage environments?
Remprack cold-chain shuttle units are equipped with specialized low-temperature lithium iron phosphate (LiFePO4) battery packs, IP65-rated moisture-resistant electrical circuitry, and internal thermal heaters. Rated to operate continuously down to -25°C or -30°C, these automated shuttles eliminate the need for human forklift operators to remain inside freezing chambers, greatly improving operational safety and energy efficiency.
