Engineering Structural Pallet Racking: The Definitive Procurement Guide for Global Supply Chains
In modern industrial warehousing, cold-storage logistics, and high-velocity distribution hubs, selecting the appropriate heavy-duty storage architecture is a critical infrastructure decision. As a premier China structural pallet racking exporter and manufacturer, Remprack Storage Solutions has delivered over 2,000 enterprise-grade installations worldwide since 2006. Structural steel pallet racking systems—fabricated from heavy C-channel rolled steel profiles—represent the ultimate benchmark for load integrity, impact resistance, and long-term structural survivability compared to standard cold-formed teardrop or selective racking.
Core Structural Advantage: Hot-Rolled C-Channel Steel vs. Roll-Formed Sheet Steel
Structural pallet racking is manufactured utilizing hot-rolled structural steel C-channels for upright columns and structural beam sections. Unlike cold-rolled thin-gauge sheet metal racking, structural steel provides superior sectional modulus, exceptional resistance to forklift collision damage, and massive weight-bearing endurance—making it mandatory for heavy manufacturing, food & beverage distribution, and severe seismic environments.
1. Technical Engineering Standards: Metallurgy, Load Tolerances & Compliance
High-tier structural pallet racking manufactured in China strictly adheres to global structural design codes, including RMI (Rack Manufacturers Institute MH16.1), FEM 10.2.02 (European Handling Federation), and EN 15512. Upright structural columns utilize high-yield strength structural steel (specifically Q235B and Q355B grades, equivalent to ASTM A36 and ASTM A572 Grade 50), yielding exceptional tensile strength and modulus of elasticity.
Structural racking connection systems utilize heavy-duty grade 5 or grade 8 structural bolts rather than teardrop clip-in connectors. This rigid, bolted connection configuration delivers superior frame stiffness, eliminating horizontal beam deflection under dynamic loading cycles and maximizing resistance to progressive structural collapse under lateral wind or seismic forces.
High-Impact Survivability
Structural channel steel columns absorb forklift impacts at ground level without vertical buckling. Reinforced structural column guards further enhance structural safety in high-velocity forklift aisles.
Heavy Payload Capacity
Calculated frame capacities exceed 25,000 kg (55,000 lbs) per bay, with beam pair load limits reaching 5,000 kg (11,000 lbs), facilitating storage of heavy machinery components, liquid totes, and dense metals.
Extreme Cold Chain Endurance
Hot-dip galvanized (HDG) structural channel finishes prevent embrittlement and surface oxidation in deep-freeze environments operating down to -30°C (-22°F).
2. Engineering Comparison: Roll-Formed vs. Structural Pallet Racking
To assist industrial engineers, procurement officers, and warehouse operations managers in evaluating long-term total cost of ownership (TCO), our structural engineering division has compiled this detailed comparative breakdown:
| Engineering Attribute | Standard Roll-Formed Racking | Structural Steel Pallet Racking (Remprack) | Procurement Impact & Benefit |
|---|---|---|---|
| Steel Material Profile | Cold-rolled thin gauge sheet metal (1.5mm - 2.5mm) | Hot-rolled structural C-Channel steel (3mm - 6mm+) | 300% Greater Impact Resistance |
| Column & Beam Connection | Teardrop clip-in / rivet hooks | Heavy-duty structural bolted flange connectors | Eliminates dynamic unhooking and frame sway |
| Collision Damage Resilience | Moderate to low; prone to vertical crimping | Exceptional; structural corners withstand fork impacts | Reduces ongoing repair & replacement overhead |
| Maximum Bay Load Capacity | Up to 12,000 kg (26,400 lbs) | Exceeds 25,000 kg (55,000 lbs) | Designed for Extremely Heavy Loads |
| Corrosion Resistance Options | Standard powder coating | Electrostatic powder coat or Hot-Dip Galvanized | Essential for outdoor yards & cold storage |
| Estimated Operational Service Life | 7 to 10 Years | 25+ Years (Backed by 10-Year Warranty) | Dramatically lowers long-term capital expenditure |
3. Next-Generation Procurement Trends in Structural Pallet Racking (2025–2030)
Global logistics managers looking to source racking systems from top Chinese exporters must align their procurement strategies with four key market trends shaping the modern supply chain landscape:

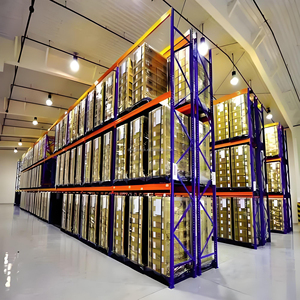

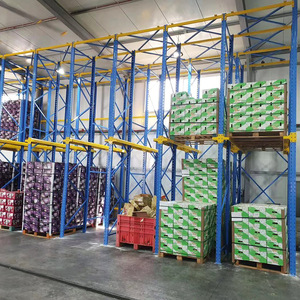

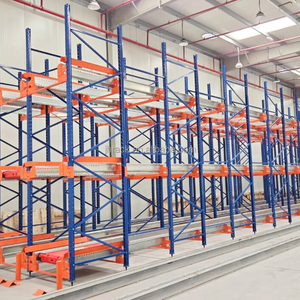

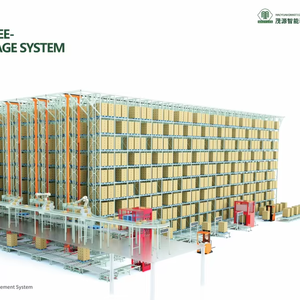

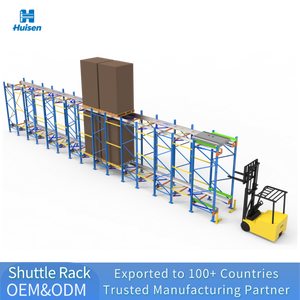

A. Integration of Semi-Automated & Fully Automated Radio Shuttle Systems: Modern structural storage is no longer confined to static selective or drive-in configurations. The deployment of 2-Way and 4-Way Radio Shuttle Cars within heavy-duty structural channels enables high-density deep-lane storage while removing forklifts from inside storage bays. Structural steel rails ensure ultra-precise shuttle track tolerances over decades of continuous 24/7 operation.
B. Cold Chain Logistics Expansion: Global demand for fresh produce, biologics, and frozen food has driven massive capital investment in cold-storage infrastructure. Structural racking designed with hot-dip galvanized steel withstands thermal shock, moisture condensation, and corrosive washing chemicals, preventing micro-fractures and rust formation.
C. Seismic Design Rigor & FEA Structural Modeling: International building codes (such as US IBC 2024, AS4084-2023 in Australia, and EN 16681 in Europe) require advanced Finite Element Analysis (FEA) for all high-bay racking systems installed in active seismic zones. Chinese top structural rack exporters now provide full PE (Professional Engineer) structural calculation stamps and seismic rack bracing designs prior to production.
D. Sustainable Green Powder Coating & Zero-VOC Manufacturing: Sustainable B2B procurement mandates eco-conscious manufacturing. Remprack utilizes fully automated, zero-VOC (Volatile Organic Compounds) electrostatic powder coating lines with closed-loop wastewater recovery systems, ensuring environmentally compliant production certified under ISO 14001 standards.
Custom OEM & ODM Structural Racking Fabrication

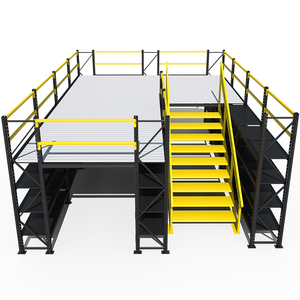

From custom beam profiles and seismic footplates to integrated mezzanine decks and automated shuttle channels, we build to your exact operational parameters.
Precision Layout & CAD/BIM Services
Our structural engineering team delivers comprehensive 2D CAD floor plans, 3D BIM models, and FEA load validation reports within 48 hours of initial requirement submission.
Tailored Colors & OEM Branding
We customize RAL powder coating colors (including safety orange, signal blue, charcoal gray, and bright yellow) to match corporate brand identity guidelines or warehouse safety zones.
Optimized Container Bundling & Shipping
Export components are bundled in protective steel-framed cradles, waterproof wrapped, and pre-sorted by bay row to facilitate rapid onsite container unloading and installation.
Frequently Asked Questions (FAQ) for Structural Racking Buyers
Get immediate answers to common technical, commercial, and logistics questions when sourcing structural pallet racking systems from China.
