Industrial Storage Solutions
Featured Deep Lane & Heavy-Duty Pallet Racking Systems
Engineered for maximum structural integrity, optimized floor footprint, and high pallet density. Factory-direct OEM/ODM manufacturing certified to international structural standards.

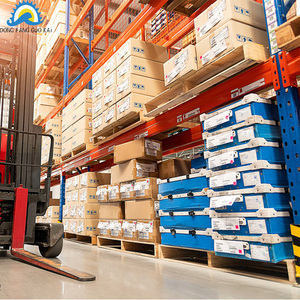

Double Deep Heavy Duty Steel Pallet Rack 6 Meters High Boltless Corrosion Protection Adjustable Layers Warehouse Shelving
2800KG 5 Levels High Bay Industrial Pallet Racking Heavy Duty Warehouse Rack System

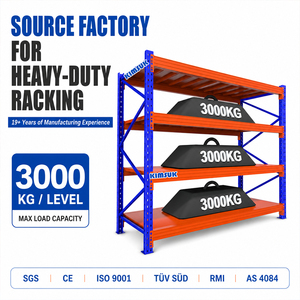

Heavy Duty Drive-in Pallet Rack System 1000-5000kg LIFO FIFO Deep Lane Warehouse Storage Rack Steel Racking for Pallet Warehouse
Heavy Duty Storage Rack Pallet Rack System Shelf For Industrial Storage Rack
High Density Storage Racking System Heavy Duty Steel Warehouse Rack Drive in Pallet Rack for Forklift Deep Lane
Industrial Storage Racks Custom 5 Layer US Teardrop Pallet Rack Conventional Pallet Racking for Warehouse Cold Room Storage
Customized Factory Warehouse Adjustable Racks Industrial Storage Shelving Supply Racking Pallet Storage Rack
2006
Established Year
Authority & Technical Experience
Get a Quote
Remprack Storage Solutions Co., Ltd.
Since our inception in 2006 in Nanjing, Jiangsu Province, Remprack Storage Solutions has evolved into one of China's primary high-density warehouse racking manufacturers and OEM/ODM engineering factories. Operating from a modern 40,000 m² automated production facility, we specialize in designing, testing, and fabricating structural steel racking systems tailored for global supply chains, cold storage facilities, 3PL logistics hubs, and automated distribution centers.
With an engineering team exceeding 300 technical specialists, Remprack adheres strictly to European FEM 10.2.02, American RMI (ANSI MH16.1), and Australian AS4084-2012 structural standards. Every system produced in our factory utilizes high-grade Q235B and Q355B cold-rolled structural steel, guaranteeing safety compliance, anti-seismic resistance, and reliable weight capacity under continuous multi-shift operations.
✓ CE & ISO 9001 Certified
✓ TUV Rheinland Validated
✓ Exported to 85+ Nations
✓ 10-Year Structural Warranty
40,000 m²
Manufacturing Base
2,000+
Completed Global Projects
100+
Patented Racking Technologies
85+
Countries Supplied Worldwide
Technical Engineering Analysis
Deep Lane Pallet Racking Architecture & Structural Mechanics
Evaluating floor volumetric utilization, load-bearing dynamic profiles, and handling efficiencies across modern high-density deep-lane storage methodologies.
Drive-In / Drive-Through Systems
Drive-in racking eliminates conventional fork-truck aisles by consolidating pallet channels into continuous deep lanes (up to 10–12 pallets deep per side). Operating under a Last-In, First-Out (LIFO) or First-In, First-Out (FIFO - Drive-Through) stock rotation model, this solution yields up to 75% higher storage density than standard selective racks. Engineering focus centers on upright column protection, continuous cantilevered pallet support rails, and top tie-beam stability.
Push-Back Pallet Racking
Push-back racking utilizes nested, inclined rolling carts riding on structural steel rails. Storing pallets 2 to 6 deep, when a front pallet is loaded, it pushes back the pallet behind it. When unloaded, gravity rolls the secondary pallets forward automatically to the picking aisle face. This arrangement offers superior SKU selectivity over drive-in racking because each lane operates as an independent storage slot with LIFO control, reducing forklift entry risks.
Semi-Automated Radio Shuttle Racking
Combining structural deep-lane steel frames with self-propelled, battery-powered radio shuttles, this technology allows operators to store pallets in channels up to 40+ meters deep. Forklifts remain strictly outside the rack structure, depositing pallets onto the shuttle at the entrance. The autonomous vehicle transfers the load to the nearest open location under WMS wireless control, drastically accelerating pallet throughput and lowering labor overhead.
| Racking Topology | Volumetric Efficiency (%) | Access Mode | Max Lane Depth | Selectivity Index | Primary Industrial Application |
|---|---|---|---|---|---|
| Selective Pallet Rack | 40% – 50% | 100% Direct Access | 1 Pallet Deep | 100% Selectivity | High SKU diversity, FMCG distribution, E-commerce hubs |
| Double Deep Racking | 55% – 65% | LIFO (Special Reach Truck) | 2 Pallets Deep | 50% Immediate Access | Cold storage, manufacturing buffers, bulk staging |
| Drive-In Racking | 70% – 80% | LIFO Rotation | 10 – 12 Pallets Deep | Low SKU Selectivity | Homogeneous product batches, seasonal beverage inventory |
| Push-Back Racking | 65% – 75% | LIFO (Gravity Cart) | 2 – 6 Pallets Deep | Lane-level Selectivity | Medium SKU volumes, cold rooms, fast-moving consumer goods |
| Radio Shuttle System | 80% – 90% | Software FIFO / LIFO | 40+ Pallets Deep | High Automated Efficiency | Deep freeze (-30°C), food processing, automated logistics |
Factory Direct Engineering
State-of-the-Art Roll Forming & Surface Finishing Facilities
Remprack operates advanced continuous cold-roll forming lines, automated robotic welding cells, and electrostatic powder coating chambers to guarantee micro-level dimensional precision and long service life.
Heavy Duty High-Bay Installation Project
Automated Cold-Roll Steel Profile Production
Turnkey Logistics Engineering Layout
Procurement Intelligence
Future Sourcing & Technology Development Trends for Deep Lane Racking
Key insights for warehouse managers, industrial architects, and global procurement directors navigating international supply chain optimization.
Industry & Product Technology Trends
- Transition to 4-Way Automated Shuttles: Traditional 2-way radio shuttles are rapidly upgrading toward 4-way omnidirectional shuttles integrated with vertical lifters, enabling fully automated, matrix-style high-density pallet retrieval without human intervention.
- Cold Chain Energy Efficiency Focus: Rising global energy tariffs drive cold store operators to maximize cubic meter utilization. Deep lane shuttle systems double storage capacity within identical refrigerated footprints, lowering refrigeration cost per pallet position by 35%–45%.
- High-Tensile Thin-Gauge Steel Engineering: Breakthroughs in cold-formed Q355B micro-alloy steel allow factories to engineer slimmer, lighter profiles without sacrificing ultimate tensile strength or deflection margins ($L/200$ deflection rating under maximum load).
- IoT Sensor & Structural Health Monitoring: Smart upright frame columns now incorporate embedded strain gauges and impact sensors to send immediate telemetry to safety engineers when impacted by a forklift.
Strategic Global Sourcing Guidelines
- Verify Compliance with Seismic & Wind Load Standards: Overseas buyers must confirm that Chinese factories perform Finite Element Analysis (FEA) modeling to meet local codes (RMI, ANSI MH16.1, FEM 10.2.02, or AS4084-2012).
- Evaluate Coating Durability and Pre-treatment: Ensure structural frames undergo multi-stage chemical washing and zinc phosphate pre-treatment before receiving a 60–80 µm electrostatic epoxy-polyester powder coat, or hot-dip galvanizing per ISO 1461 for outdoor/corrosive environments.
- Standardize Container Shipping & Bundle Protection: Heavy industrial steel profiles require custom structural timber skids, steel banding, and plastic shrink wrap to eliminate paint scratching during ocean transit.
- Total Cost of Ownership (TCO) Calculations: Evaluate rack purchases not merely on FOB steel price per kilogram, but factoring in shipping cube efficiency, installation labor speed (boltless vs. bolted connectors), and long-term structural maintenance expenses.
Knowledge Base
Frequently Asked Procurement & Engineering Questions
In-depth technical answers to guide structural design, factory audit, custom sizing, and international delivery requirements.
What parameters are required to calculate custom deep lane pallet racking designs?
+
To prepare a precise CAD layout and structural engineering proposal, our factory technical team requires: (1) Architectural warehouse layout drawings in CAD or PDF showing clear height beneath roof trusses or sprinkler systems; (2) Pallet dimensions (W x D x H) including goods overhang and gross weight per unit load; (3) Forklift operational specifications, including turning radius, mast lift height, and chassis aisle clearance; (4) Required SKU count and daily pallet turnover rates; and (5) Regional structural design codes, including seismic zones or cold-storage temperature thresholds.
How does Drive-In racking compare to Radio Shuttle racking regarding operating cost and safety?
+
While traditional Drive-In racking presents lower initial capital expenditure, it requires forklift trucks to physically drive inside narrow rack channels. This increases column impact hazards, structural damage rates, and operator labor time. Radio Shuttle systems keep forklifts outside the rack structure entirely, relying on autonomous motorized shuttles. This reduces rack maintenance costs by up to 80%, increases pallet loading speed by 50%, and improves workplace safety, yielding a complete ROI within 18 to 24 months in busy warehouses.
What international quality certifications and load tests apply to Remprack storage equipment?
+
Remprack racking systems are manufactured under strict ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental standards. Our product structural integrity is verified through independent TUV Rheinland laboratory testing and holds CE certification compliance under EN 15512, EN 15620, and FEM 10.2.02 European specifications. Complete mill test certificates (MTC), raw material yield strength reports, and structural FEA stress reports are supplied for every major project.
Can Remprack manufacture specialized tear-drop or custom pitch upright profiles for North American markets?
+
Yes. Remprack provides full OEM and ODM manufacturing capabilities. We manufacture standard 2-inch punch pitch Teardrop pallet rack systems designed specifically for interchangeability with standard American profiles, alongside standard 50mm, 75mm, and 76.2mm pitch profiles for European, Australian, and Middle Eastern markets. Upright column widths, beam step profiles, powder coating RAL color matching, and private label branding can all be customized.
What surface finish treatment is recommended for deep freeze cold storage applications?
+
For standard dry ambient warehouses, our 60–80 micron electrostatic epoxy-polyester powder coating delivers resilient scratch protection and corrosion resistance. However, for deep freeze cold storage (-20°C to -30°C) or high-humidity food processing plants where condensation occurs during defrost cycles, we recommend hot-dip galvanizing (HDG) per ISO 1461. HDG coats both interior and exterior steel surfaces with a 80–120 micron protective zinc layer, preventing rust formation for decades.
What structural warranty and technical support services are provided post-purchase?
+
All Remprack heavy-duty warehouse racking systems carry a comprehensive 10-Year Structural Warranty covering material defects and structural failures under rated loading conditions. We supply detailed 3D assembly drawings, step-by-step installation manuals, load capacity warning plaques, and direct video engineering support. For large-scale projects, our field engineers can be deployed on-site to supervise assembly and inspect final structural anchor torque alignment.
Optimize Your Warehouse Footprint & Storage Efficiency Today
Connect directly with Remprack’s senior structural design engineers. Send us your CAD drawings or storage requirements for a complimentary 3D layout design, pallet capacity evaluation, and factory-direct price quotation.
