Factory Direct Catalog
High-Density Mobile & Industrial Racking Systems
Engineered for cold storage, logistics hubs, and heavy industrial distribution centers. Fully compliant with European EN 15095 & EN 15512 structural standards.
Industrial High Density Mobile Steel Pallet Racking System Warehouse Heavy Duty Storage Shelving Rack

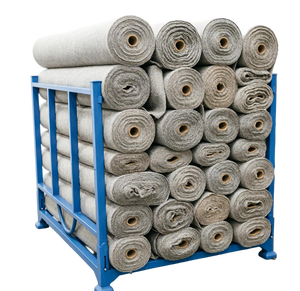

TER Warehouse Mobile Fabric Roll Storage Rack Foldable Stackable Steel Pallet for Forklift Transport
Foldable Stacking Turnover Rack Fabric Metal Steel Pallet Movable Foldable Stacking Shelf for Warehouse

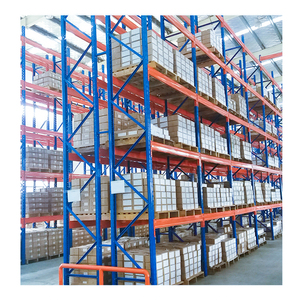

Certificated Large Heavy Duty 5 Steel Shelving Storage Applications Easy Assemble Racking Unit Industrial Pallet Rack Solution
Metal Stacking Movable Post Pallet Rack Foldable Metal Stackable Pallet Racks Stacking Rack for Storage
Adjustable Heavy Duty Pallet Rack Shelf Two Levels Custom High Load Capacity Industrial Warehouse Storage Pallet Racking System
High-Density Automatic Four Way Shuttle Rack Radio Shuttle Rack System With Shuttle System
Technical Insights
The Mechanics & Architecture of CE Certified Mobile Pallet Racking
Evaluating structural integrity, floor loading calculations, power transmission efficiency, and European safety standards (EN 15095) for modern industrial warehousing.
Maximized Floor Density (up to 85% Gain)
Mobile pallet racking (MOVO) eliminates multiple static operating aisles. Racking blocks mounted on motorized mobile bases move along embedded floor rails, opening a single working aisle on demand. This translates to an immediate 85% to 100% increase in total pallet storage capacity within the same footprint.
CE & EN 15095 Safety Compliance
Power-driven mobile racking systems installed in Europe or supplied by certified Chinese exporters must strictly comply with EN 15095. This incorporates dual optical light barriers, photoelectric aisle protection, emergency stop circuits, bumper safety edges, and automated distance sensors to protect personnel and forklifts.
Cold Storage & Energy Optimization
In temperature-controlled environments (-30°C freezer rooms), cooling empty aisle space is extremely costly. By compressing storage density, mobile racking reduces the volume of air to be cooled, delivering up to 50% energy savings per stored pallet position while preventing frost heave via heated base panels.
Information Gain: Critical Civil Engineering & Floor Flatness Standards (VDMA / DIN 18202)
Deploying heavy-duty mobile racking carrying unit loads up to 24 tons per bay requires strict floor tolerance matching. Exporters and factory engineers must mandate floor flatness conforming to DIN 18202 Table 3, Line 4 or VDMA Guidelines for Very Narrow Aisle / Mobile Systems. Dual flat-rail or sunken-channel guide rails must be anchored with epoxy resin grout to absorb dynamic braking forces without micro-cracking the slab.
Comprehensive System Performance & Operational Matrix
| Storage System Type | Storage Density Factor | Direct SKU Selectivity | Forklift Operating Aisles | Safety Standard Benchmark | Ideal Application Scenario |
|---|---|---|---|---|---|
| Motorized Mobile Pallet Racking | Very High (85-90%) | 100% (Individual Pallet Access) | 1 Reconfigurable Aisle | EN 15095 / CE / FEM 10.2.07 | Cold Storage, High Land Cost, Moderate SKU Velocity |
| Standard Selective Pallet Racking | Low (40-45%) | 100% (Individual Pallet Access) | Multiple Fixed Aisles (3.0m - 3.5m) | EN 15512 / ANSI MH16.1 | High SKU Turnover, Cross-Docking, E-commerce |
| Radio Shuttle Racking | High (75-85%) | Deep Lane (LIFO / FIFO) | Loading / Unloading Faces Only | CE / Machinery Directive 2006/42/EC | High Volume per SKU, Food & Beverage Batching |
| Drive-In Racking | High (65-75%) | Low (LIFO Only) | Forklift Drives Into Rack Lanes | EN 15635 Structural Safety | Seasonal Bulk Goods, Low SKU Diversity |
| Very Narrow Aisle (VNA) Racking | Moderate-High (60-70%) | 100% (Individual Pallet Access) | Narrow Dedicated Aisles (1.6m - 1.8m) | EN 15620 Floor & Rack Tolerances | High-Bay Storage, Specialized VNA Trucks Required |
R&D & Industry Evolution
Product Development & Technology Trends in Mobile Racking
How smart sensors, IoT automation, structural lightweighting, and green energy management are redefining next-generation mobile warehouse storage.
1. PLC Control & WMS/WCS Integration
Modern mobile racking systems are no longer isolated mechanical structures. Direct integration with Siemens S7-1500 PLC architectures allows mobile bases to interface via Wi-Fi/Profinet with Warehouse Management Systems (WMS). Operators select a pallet via RFID scanners or forklift terminals; the mobile system automatically opens the requested aisle, pre-clears light curtains, and turns on aisle LED illumination simultaneously.
2. Night Parking & Automated Airflow Mode
A major technological innovation in cold storage mobile racking is the automated "Night Parking" feature. During non-operational hours, the system splits all mobile rows into equal, narrow gaps (e.g., 250mm gaps between every row). This facilitates uniform cold air circulation, preventing thermal pockets, reducing refrigeration compressor loads, and cutting cooling energy expenditure by up to 28% overnight.
3. Variable Frequency Synchronous Drives (VFD)
Older mobile racking utilized single-speed motors, causing abrupt starts and stops that risked pallet instability. Leading factories now engineer soft-start/soft-stop VFD drive motors. Acceleration and deceleration curves are smooth, preventing fragile goods or unstrapped loads from shifting during carriage displacement, while achieving quiet operation under 70 dB(A).
4. Seismic Anti-Toppling Dynamic Locks
For installations in seismic regions (conforming to EN 16681 structural seismic design), advanced mobile bases feature automatic anti-toppling overhead guides and dynamic electromagnetic floor locks. When floor sensors detect seismic vibrations, all mobile carriages instantly lock onto structural rail channels, converting independent rows into a rigid monolithic steel block to prevent overturning.
Strategic Sourcing 2025–2030
Future Procurement Trends for Mobile Pallet Racking
Global supply chain directors and warehouse logistics planners are shifting sourcing methodologies. Discover the key factors driving international procurement decisions.
Direct OEM/ODM Factory Sourcing
Buyers are bypassing local commercial intermediaries in favor of direct engineering partnerships with certified Chinese racking manufacturers. Sourcing direct from high-capacity factories guarantees custom profile roll-forming (Q355B structural steel), competitive price-per-pallet position, and complete control over steel coating specifications (such as galvanizing or anti-microbial powder coating).
TCO & Energy ROI Capital Allocation
Procurement evaluations are focusing heavily on Total Cost of Ownership (TCO). While mobile racking carries higher initial electromechanical expenditure than static racking, the 45% reduction in required warehouse floor space dramatically reduces real estate acquisition costs, property taxes, and ongoing freezer refrigeration energy bills, yielding full CAPEX payback within 2.5 to 4 years.
ESG & Modular Carbon Footprint Tracking
Global logistics enterprises require verified Environmental Product Declarations (EPD) and ISO 14001 certified manufacturing processes. Sourcing mobile racking fabricated with energy-efficient roll-forming lines, recyclable steel scrap controls, and zero-VOC electrostatic powder coatings aligns with international corporate ESG decarbonization mandates.
Enterprise Leadership
Remprack Storage Solutions Co., Ltd.
Over 20 years of continuous innovation in heavy-duty warehouse racking manufacturing, technical R&D, and worldwide export execution.
2006
Established in Nanjing, China
40,000 m²
Modern Manufacturing Plant
85+
Countries Exported Worldwide
2,000+
Global Projects Delivered
100+
Patented Racking Technologies
10-Year
Structural Product Warranty
Rigorous International Quality Accreditation
Remprack holds full compliance certifications across international regulatory frameworks including CE Certification, ISO 9001 (Quality Management System), ISO 14001 (Environmental Management), and TUV Rheinland Structural Verification. Every batch of high-tensile steel structural profiles undergoes raw material yield stress testing and weld ultrasonic testing prior to dispatch.
Request Audit CertificatesEnd-to-End Engineering & OEM Customization
Our 300+ dedicated staff includes 35 senior structural design engineers. We specialize in tailored OEM and ODM production for system integrators, rack distributors, and logistics operators. From 3D CAD layout creation and Finite Element Analysis (FEA) structural simulation to overseas installation guidance, Remprack ensures flawless project execution.
Consult an Engineer
Procurement Guide
Frequently Asked Questions by B2B Buyers
Get expert answers regarding design specifications, safety standards, installation requirements, lead times, and global shipping logistics.
What technical parameters are required to calculate a mobile pallet racking layout proposal?
To prepare an optimized CAD drawing and structural proposal, our engineering team requires: (1) Warehouse building floor plan with column locations, clear height under sprinklers or roof trusses; (2) Pallet dimensions including width, depth, overall height, and maximum unit load weight (e.g., 1200mm x 1000mm x 1500mm, 1500kg); (3) Forklift model, maximum lift height, and minimum turning radius; (4) Total SKU count and daily pallet movement velocity; (5) Operating environment temperature range (e.g., ambient vs. -25°C cold room) and local seismic code requirements.
How does CE certification protect buyers importing mobile racking from China?
CE certification under the EN 15095 standard ensures that power-driven mobile racking systems meet stringent European mechanical, electrical, and functional safety directives. It guarantees that control panels feature dual safety circuits, anti-crush optical sensors, reliable emergency stops, and electromagnetic motor brakes. For importers, CE documentation is essential for customs clearance in Europe and guarantees compliance with workplace occupational safety inspectors.
What floor construction requirements are necessary for mobile racking installation?
Mobile racking requires flat concrete floors conforming to VDMA guidelines or DIN 18202 Class 3 tolerances to ensure smooth base movement and prevent tilt under high loads. Guide rails can be embedded into concrete cutouts during new construction or retrofitted into existing floors using precision diamond-saw cutting and non-shrink epoxy grout anchoring.
Can mobile racking operate reliably in ultra-low temperature cold storage rooms (-30°C)?
Yes. Remprack engineers low-temperature specialized mobile racking systems equipped with IP65-rated cold-resistant motors, low-temperature synthetic lubricants, micro-alloyed low-temperature impact steel (Q355ND), internal heating elements inside electrical cabinets to prevent condensation icing, and automated night-parking ventilation modes.
What are the typical factory lead times and export packaging standards?
Standard production lead time is 20 to 30 days from layout sign-off and deposit receipt. Steel profiles, upright frames, and beams are wrapped with protective steel-strapped plastic film, corrugated end-caps, and mounted on heavy-duty steel runners for forklift container unloading. Electrical components and mobile drives are encased in sealed export-grade wooden crates with moisture-absorbing desiccant packs.
What warranty coverage and after-sales support does Remprack provide?
Remprack provides a 10-Year Structural Warranty on all steel structural racking components (uprights, beams, mobile bases) and a 2-Year Warranty on electrical motors, PLCs, and optical sensors. We offer complete technical documentation, 3D assembly manuals, video installation guides, and remote online engineering support. On-site installation supervisors are available upon request for major turnkey projects.
Ready to Double Your Warehouse Storage Density?
Contact our senior racking design engineers today for a complimentary warehouse layout drawing, floor loading analysis, and factory-direct quotation within 24 hours.
