Industrial Pallet Racking & High-Density Storage Portfolio
Explore our CE-certified, OEM/ODM engineered storage systems manufactured to rigid ISO 9001 and TUV quality benchmarks for seamless warehouse integration.
Engineering Excellence: Structural Integrity & FIFO Mechanics
Modern warehouse logistics demands seamless synchronization between material flow dynamics and structural stability. First-In, First-Out (FIFO) pallet racking systems represent the pinnacle of inventory velocity management, ensuring strict batch control, minimizing product expiration risks, and optimizing floor space utilization. As an established CE-certified manufacturer and global exporter, Remprack Storage Solutions engineers pallet racking architectures that comply with international structural guidelines including EN 15512, FEM 10.2.02, and RMI specifications.
Technical Insight (Information Gain): FIFO dynamic systems (such as Gravity Pallet Flow and Radio Shuttle) eliminate "honeycombing" losses inherent in static storage. By converting fixed aisle volume into active pallet lanes, cube storage efficiency increases by 60% to 85% compared to conventional selective racking layouts.
1. Structural Steel Metallurgy & Frame Geometry
The core structural endurance of Remprack FIFO racking lies in high-tensile cold-rolled steel profiles (Q235B and Q355B structural grades). Upright frames feature continuous omega-section profiles with multi-rib cold deformation, enhancing moment of inertia and buckling resistance under heavy seismic or operational loading. Column punch patterns utilize precision 50mm or 75mm pitch matrix configurations, allowing fine-tuned beam level adjustments to minimize dead vertical space.
Beams are constructed using twin C-profile interlocked step-beams or box-beams, robotically welded to multi-claw connector brackets. This mechanical interlocking wedge connection creates a rigid beam-to-column joint, dramatically reducing lateral sway and maintaining operational tolerances required for automatic pallet positioning.
2. Dynamic Kinetic Control in Gravity Flow Racking
Gravity-driven FIFO pallet flow racking relies on controlled physical velocity. Remprack integrates specialized inline speed-controller rollers calibrated to maintain constant descent speed (0.2m/s to 0.3m/s) regardless of pallet weight (ranging from 300kg to 1500kg). Entry ramps incorporate self-centering guides, while the discharge end utilizes mechanical separation brakes. These separators disengage the lead pallet from the accumulated line, preventing back-pressure index locking and ensuring safe forklift extraction.
Technical Matrix: FIFO vs. LIFO High-Density Racking Systems
Selecting the optimal pallet storage configuration requires balancing capital expenditure (CapEx), operational throughput, inventory velocity, and structural footprint. The table below presents an engineering comparison for logistics procurement specialists.
| Racking System | Stock Rotation | Storage Density | Selectivity | Forklift Travel | Compliance / Cert |
|---|---|---|---|---|---|
| Gravity Pallet Flow | Strict FIFO | Very High (85%) | Lane Dependent | External Loading Aisles | CE, EN 15512, TUV |
| Radio Pallet Shuttle | FIFO & LIFO | Maximum (90%) | Lane Dependent | Zero Inside Lanes | CE, ISO 9001, RoHS |
| 4-Way Automated Shuttle | Dynamic FIFO | Maximum (92%) | Automated Matrix | Fully Automated (AGV/AMR) | CE, ISO 14001, TUV |
| Selective Pallet Rack | Flexible | Moderate (40%) | 100% Immediate | Every Aisle | CE, FEM 10.2.02 |
| Push Back Racking | Strict LIFO | High (70%) | Lane Dependent | Front Aisle Only | CE, EN 15512 |
| Drive-In Racking | Strict LIFO | High (75%) | Low | Inside Rack Channels | CE, ISO 9001 |
Future Procurement Trends in Industrial Racking Systems
As global supply chains shift toward automated fulfillment, cold-chain expansion, and stringent carbon metrics, enterprise procurement of warehouse infrastructure is undergoing a technological transformation. Buyers must consider future-proofing strategies to ensure long-term ROI and structural flexibility.
1. Automated Guided Vehicle (AGV) & AMR Interface Standardization
Future-ready FIFO racking must accommodate the tight positioning tolerances required by Autonomous Mobile Robots (AMRs) and AGV forklifts. Standard human-operated tolerances (Class 400 according to EN 15620) are being replaced by high-precision Class 300 and 200 guidelines. Remprack integrates laser-guided alignment plates, structural floor anchoring, and photo-electric reflector brackets directly into upright profiles to facilitate seamless robotic integration.
2. Cold Storage Energy Optimization & Sub-Zero Structural Resilience
With global cold-chain logistics expanding rapidly, cold storage operational costs are under intense scrutiny. Refrigerated space costs 3 to 5 times more to operate than ambient warehouse space. High-density shuttle racking and dynamic FIFO flow racks maximize sub-zero volume utilization, reducing thermal energy loss per stored pallet. Furthermore, steel structural elements utilized in cold rooms are manufactured from special micro-alloyed steels treated against low-temperature embrittlement.
3. Sustainable Steel Sourcing & Eco-Coating Compliance
Enterprise procurement departments are mandating strict ESG (Environmental, Social, and Governance) parameters. Racking production at Remprack utilizes eco-friendly thermosetting powder coatings free of volatile organic compounds (VOCs) and heavy metals. Advanced closed-loop pretreatment lines ensure zero wastewater discharge during steel degreasing and phosphatizing phases.
Why Partner With Remprack Storage Solutions
Over two decades of structural design experience, advanced automated manufacturing, and dedicated international customer support.
CE & TUV Certified Quality
Our manufacturing protocols are certified under CE Mark (Directive 2006/42/EC), ISO 9001, ISO 14001, and TUV Rheinland standards. Full structural load testing reports are provided with every order.
Global Supply Footprint (85+ Countries)
Since 2006, Remprack has successfully exported custom racking installations to over 85 countries across Europe, North America, the Middle East, Southeast Asia, and Australia.
In-House Automated Production
Operating a modern 40,000m² manufacturing facility equipped with continuous CNC cold-roll forming lines, robotic welding cells, and automated powder coating plants.
Custom OEM & ODM Engineering
Complete structural design customization: upright profile geometries, beam connectors, paint colors (RAL system), specialized wire mesh decking, and pallet safety accessories.
10-Year Structural Warranty
All Remprack structural steel components are backed by a comprehensive 10-year product warranty when installed according to our engineering guidelines and load signs.
Turnkey Engineering Support
From initial DWG site surveys and 3D structural modeling (BIM/CAD) to shipping logistics optimization and remote/on-site installation assistance, our engineers guide your project start to finish.
Frequently Asked Questions by Industrial Buyers
Detailed technical responses addressing design specifications, certification, safety compliance, and shipping logistics.
What engineering parameters are required to generate a customized racking design and quote?
- Warehouse Floor Plan: CAD drawing or PDF detailing building dimensions, clear height under sprinklers/trusses, column grid layout, and door positions.
- Pallet Dimensions & Mass: Width, depth, total height including cargo, and maximum gross weight per pallet (kg).
- Forklift Specifications: Forklift model, aisle width requirement (AST), maximum lift height, and mast collapsed height.
- Environmental Factors: Ambient vs cold store (-30°C), local seismic zone requirements, and floor slab load specifications (kPa).
Which international quality and structural standards do Remprack systems comply with?
How does FIFO Radio Shuttle racking differ from traditional Drive-In racking?
- Drive-In Racking: Forklifts drive directly inside the racking channels to place and retrieve pallets. This increases risk of structural damage from forklift impacts and forces a strict LIFO (Last-In, First-Out) rotation.

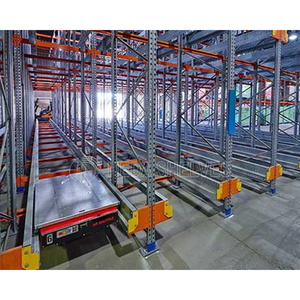

- Radio Shuttle Racking: An automated battery-powered shuttle carries pallets along rails inside the storage lane. Forklifts operate only at the lane faces, eliminating rack collision hazards, accelerating cycle times by 50%, and enabling true FIFO rotation (loading from rear, picking from front).
What surface treatment options are available for corrosion resistance in cold stores or humid environments?
- Electrostatic Epoxy-Polyester Powder Coating: Applied at 60-80 microns thickness after multi-stage chemical washing and phosphatizing. Standard for dry ambient warehouses.
- Hot-Dip Galvanizing (HDG): Steel components are submerged in molten zinc (EN ISO 1461 compliant), providing a protective coating thickness of 60-100 microns. Recommended for outdoor yard storage, high-humidity chemical plants, and extreme cold storage applications.
What is the typical manufacturing lead time and international export packaging standard?
Do you provide OEM structural profiles compatible with existing global racking brands?
Optimize Your Warehouse Density & Throughput Today
Consult with our senior structural engineers to receive a complimentary 2D/3D CAD layout design, floor slab analysis, and direct factory pricing for your upcoming storage project.
